● Overview

The XTS-HSMC Daughter Card is designed to convert FPGA transceiver channels to SMA connectors through a High-Speed Mezzanine Connector (HSMC) interface. It is intended to allow users to evaluate the performance of transceiver-based host boards with HMSC interface specifically Stratix IV GX, Stratix II GX, Arria II GX and Cyclone IV GX with integrated transceivers. The XTS-HSMC Daughter Card is the ideal platform to allow users to prototype and test their high-speed interfaces quickly and easily in support of transceiver performance for jitter, protocol compliance, and equalization.

XTS-HSMC Daughter Card Top View	XTS-HSMC Daughter Card Bottom View

● Specification

• Convert transceiver channels to SMA connectors through HSMC interface
• Support 4 transceiver channels
• SMA connectors for PLL input and output clock
• Applicable for large volume applications that require high-speed (Gigabit) data transfer


Connectivity

The XTS-HSMC Daughter Card connects to the Arria II GX FPGA Development Kit

The XTS-HSMC Daughter Card connects with Arria II GX FPGA Development Kit

The XTS-HSMC Daughter Card connects to the S4GFP Board

The XTS-HSMC Daughter Card connects with the S4GFP Board

● Resources

Documents



Title	Version	Size(KB)	Date Added	Download
XTS UserManual	-	2314	2010-01-22



CD-ROM



Title	Version	Size(KB)	Date Added	Download
XTS CD-ROM	-		2010-05-24

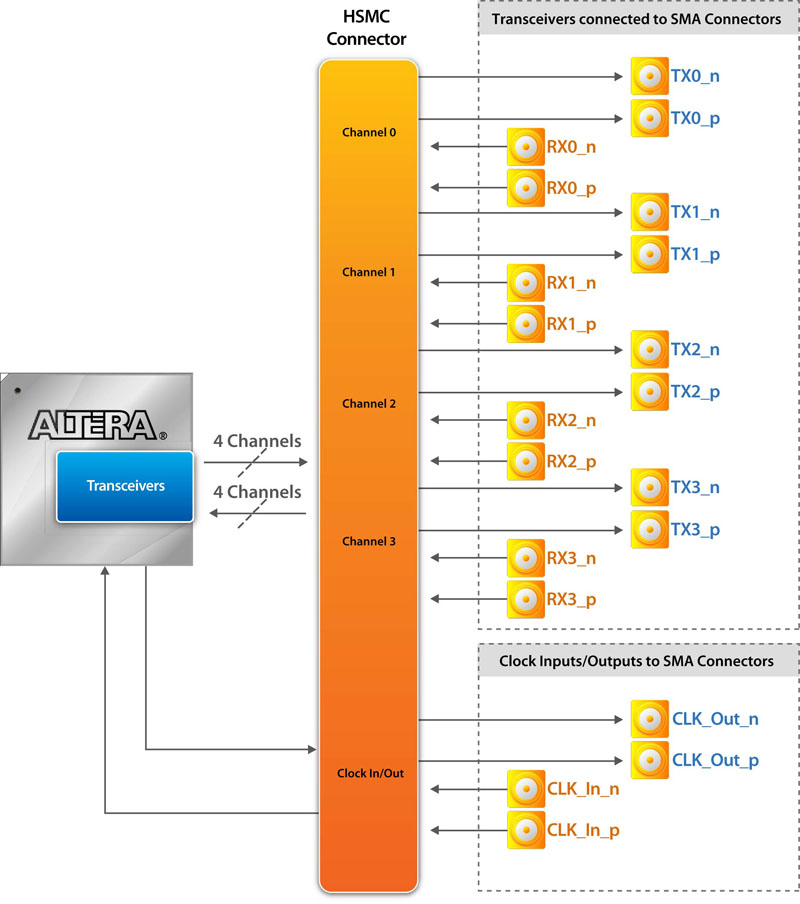

Block Diagram of Board Functionality

● Kit Contents

One XTS-HSMC Daughter Card

One System CD
