● Overview

The HTG Card is designed to convert a High-Speed Terasic connector (HSTC) or a High-Speed Mezzanine connector (HSMC) I/Os to three 40-pin expansion prototype connectors, which are compatible with Altera DE2/DE1/DE0 expansion headers. Users can connect up to three Altera DE2/DE1/DE0 boards (or associated daughter cards) onto a HSTC/HSMC-interfaced host board via a HTG Card.

● Specification

• Convert HSTC/HSMC-interfaced I/O to standard 40-pin expansion connectors.
• Allow users to connect Altera DE2/DE1/DE0 boards to a HSTC/HSMC-interfaced host board.
• Provide test points for signal measurement

Block diagram

　　 HTG

• Connect HTG with Altera Cyclone III Starter Board

• Connect HTG with Altera DE3
  Note. An adapter (SFF or HFF) is required to connect ADA-HSMC with DE3. It is bundled in DE3 kit.

• Connect HTG with Altera DE4
  Note. One adapters (HFM2) required to connect DVI-HSMC with DE4. They are bundled in DE4 kit.

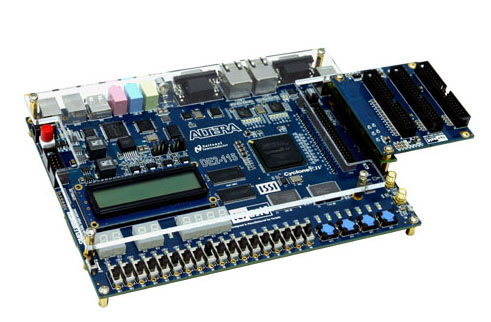

• Connect HTG with Altera DE2-115
  Note. One adapters (HFM2) required to connect DVI-HSMC with DE2-115. They are bundled in DE2-115 kit.

● Resources

Documents

Title	Version	Size(KB)	Date Added	Download
THDB-HTG UserManual	-	3352	2010-04-08

● Kit Contents

One HTG Card
