● Overview
The Video and Embedded Evaluation Kit - Multi-touch, Second Edition, on Cyclone? V SoC Development Board (VEEK-MT2-C5SoC) is a comprehensive embedded design environment with everything developers need to create processing-based systems. VEEK-MT2-C5SoC delivers an integrated platform that includes hardware, design tools, intellectual property (IP) and reference designs to develope embedded solutions for a wide range of applications. The fully integrated kit allows developers to rapidly customize their processor and IP to best suit their specific application. The VEEK-MT2-C5SoC features the Altera Cyclone? V SoC development board with Altera Cyclone? V SX SoC FPGA, and a capacitive 7” TFT LCD with 800x480 resolution which natively supports 5 point touch and multi-touch gestures. A 8-megapixel digital image sensor with auto focus, ambient light sensor, Gyroscope, Magnetometer, and 3-axis accelerometer makes up the rich feature-set.
The all-in-one embedded solution offered on the VEEK-MT2-C5SoC, in combination with the LCD touch panel and digital image module, provides embedded developers the ideal platform for multimedia applications with unparallel processing performance. Developers can benefit from the use of FPGA-based embedded processing system such as mitigating design risk and obsolescence, design reuse, reducing bill of material (BOM) costs by integrating powerful graphics engines within the FPGA, and lower cost.
● Specification

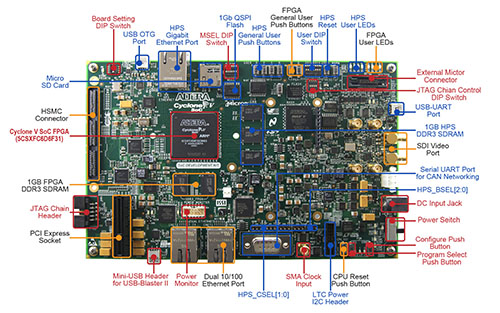

Cyclone V SX SoC Development Board
SoC Embedded Design Suite Subscription Edition
ARM Development Studio 5 (DS-5™) Altera Edition Toolkit
Hardware-to-software handoff tools
Linux run-time software for application development
SoC hardware libraries for firmware development
Application example
ARM Development Studio 5 (DS-5™) Altera Edition Toolkit
Hardware-to-software handoff tools
Linux run-time software for application development
SoC hardware libraries for firmware development
Application example
Cyclone V SX SoC—5CSXFC6D6F31C6N (SoC)
110K LEs, 41509 ALMs
5140 M10K memory blocks
224 18x18 Multiplier
6 FPGA PLLs and 3 HPS PLLs
110K LEs, 41509 ALMs
5140 M10K memory blocks
224 18x18 Multiplier
6 FPGA PLLs and 3 HPS PLLs
Configuration Device and USB Blaster Circuit
Active Serial (AS) x1 or x4 configuration (EPCQ256SI16N)
MAX? V CPLD (5M2210ZF256I5N) in a 256-pin FBGA package as the System Controller
Flash fast passive parallel (FPP) configuration
MAX II CPLD (EPM570GM100) as part of the embedded USB-BlasterTM II for use with the Quartus? II Programmer
Active Serial (AS) x1 or x4 configuration (EPCQ256SI16N)
MAX? V CPLD (5M2210ZF256I5N) in a 256-pin FBGA package as the System Controller
Flash fast passive parallel (FPP) configuration
MAX II CPLD (EPM570GM100) as part of the embedded USB-BlasterTM II for use with the Quartus? II Programmer
Memory Devices
One 1,024-Mbyte (MB) HPS DDR3 SDRAM with error correction code (ECC) support
One 1,024-MB FPGA DDR3 SDRAM
One 256-Megabit (Mb) quad serial peripheral interface (QSPI) flash
One 512-Mb CFI flash
One 32-Kb I2C serial electrically erasable PROM (EEPROM)
One microSD flash memory card
One 1,024-Mbyte (MB) HPS DDR3 SDRAM with error correction code (ECC) support
One 1,024-MB FPGA DDR3 SDRAM
One 256-Megabit (Mb) quad serial peripheral interface (QSPI) flash
One 512-Mb CFI flash
One 32-Kb I2C serial electrically erasable PROM (EEPROM)
One microSD flash memory card
Switches and Indicators
LEDs and displays
Eight user LEDs
One configuration load LED
One configuration done LED
One error LED
Three configuration select LEDs
Four on-board USB-Blaster II status LEDs
One HSMC interface LED
Two UART data transmit and receive LEDs
One power on LED
One two-line character LCD display
Push buttons
One CPU reset push button
One MAX V reset push button
One program select push button
One program configuration push button
Six general user push buttons
DIP switches
One MAX V CPLD System Controller control switch
One JTAG chain control DIP switch
One mode select DIP switch
One general user DIP switch
LEDs and displays
Eight user LEDs
One configuration load LED
One configuration done LED
One error LED
Three configuration select LEDs
Four on-board USB-Blaster II status LEDs
One HSMC interface LED
Two UART data transmit and receive LEDs
One power on LED
One two-line character LCD display
Push buttons
One CPU reset push button
One MAX V reset push button
One program select push button
One program configuration push button
Six general user push buttons
DIP switches
One MAX V CPLD System Controller control switch
One JTAG chain control DIP switch
One mode select DIP switch
One general user DIP switch
On-board Clocking Circuitry
Si570, Si571, and Si5338 programmable oscillators
25-MHz, 50-MHz,100-MHz, 125-MHz, 148.50-MHz, and 156.25-MHz oscillators
SMA input (LVCMOS)
Si570, Si571, and Si5338 programmable oscillators
25-MHz, 50-MHz,100-MHz, 125-MHz, 148.50-MHz, and 156.25-MHz oscillators
SMA input (LVCMOS)
Communication Ports
One PCI Express x4 Gen1 socket
One universal HSMC port
One USB 2.0 on-the-go (OTG) port
One Gigabit Ethernet port
Dual 10/100 Ethernet ports
One SDI port (option for SMA connection)
One controller area network (CAN) port
One RS-232 UART (through the mini-USB port)
One real-time clock
One PCI Express x4 Gen1 socket
One universal HSMC port
One USB 2.0 on-the-go (OTG) port
One Gigabit Ethernet port
Dual 10/100 Ethernet ports
One SDI port (option for SMA connection)
One controller area network (CAN) port
One RS-232 UART (through the mini-USB port)
One real-time clock
Power
14–20-V (laptop) DC input
14–20-V (laptop) DC input
Mechanical
5.2" × 8.2" rectangular form factor
5.2" × 8.2" rectangular form factor
Capacitive LCD Multi-touch Screen
- 7-inch TFT LCD with pixel resolution of 800*480
- 16 million colors (24-bit RGB)
- LED backlight
- 5 point Capacitive Touch
8-Megapixel Digital Image Sensor
- 3,264H x 2,448V active pixels with Bayer color arrangement
- Programmable frame rate up to 60FPS (1408X792)
- Sensitivity 940mV/Lux-sec
- Voice Coil Motor for focus control
Ambient Light Sensor
- Precise illumination measurement under diverse lighting conditions
- Programmable interrupts
- 16-bit digital output with I2C fast-mode at 400 kHz
- Programmable analog gain and Integration time
- 50/60Hz lighting ripple rejection
MPU9250 Nine-Axis Sensors
Accelerometer Features
- Digital-output triple-axis accelerometer
- Programmable full scale range of ±2g, ±4g, ±8g and ±16g and integrated 16-bit
- Self-test
Gyroscope Features
- Digital-output X-, Y-, and Z-Axis angular rate sensors
- User-programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec and integrated 16-bit ADCs
- Self-test
Magnetometer
- 3-axis silicon monolithic Hall-effect magnetic sensor with magnetic concentrator
- Wide dynamic measurement range and high resolution with lower current consumption.
- Output data resolution of 14 bit (0.6μT/LSB) or 16 bit (15μT/LSB)
- Full scale measurement range is ±4800μT
- Magnetometer normal operating current: 280μA at 8Hz repetition rate
- Self-test function with internal magnetic source to confirm magnetic sensor operation on end products
Accelerometer Features
- Digital-output triple-axis accelerometer
- Programmable full scale range of ±2g, ±4g, ±8g and ±16g and integrated 16-bit
- Self-test
Gyroscope Features
- Digital-output X-, Y-, and Z-Axis angular rate sensors
- User-programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec and integrated 16-bit ADCs
- Self-test
Magnetometer
- 3-axis silicon monolithic Hall-effect magnetic sensor with magnetic concentrator
- Wide dynamic measurement range and high resolution with lower current consumption.
- Output data resolution of 14 bit (0.6μT/LSB) or 16 bit (15μT/LSB)
- Full scale measurement range is ±4800μT
- Magnetometer normal operating current: 280μA at 8Hz repetition rate
- Self-test function with internal magnetic source to confirm magnetic sensor operation on end products

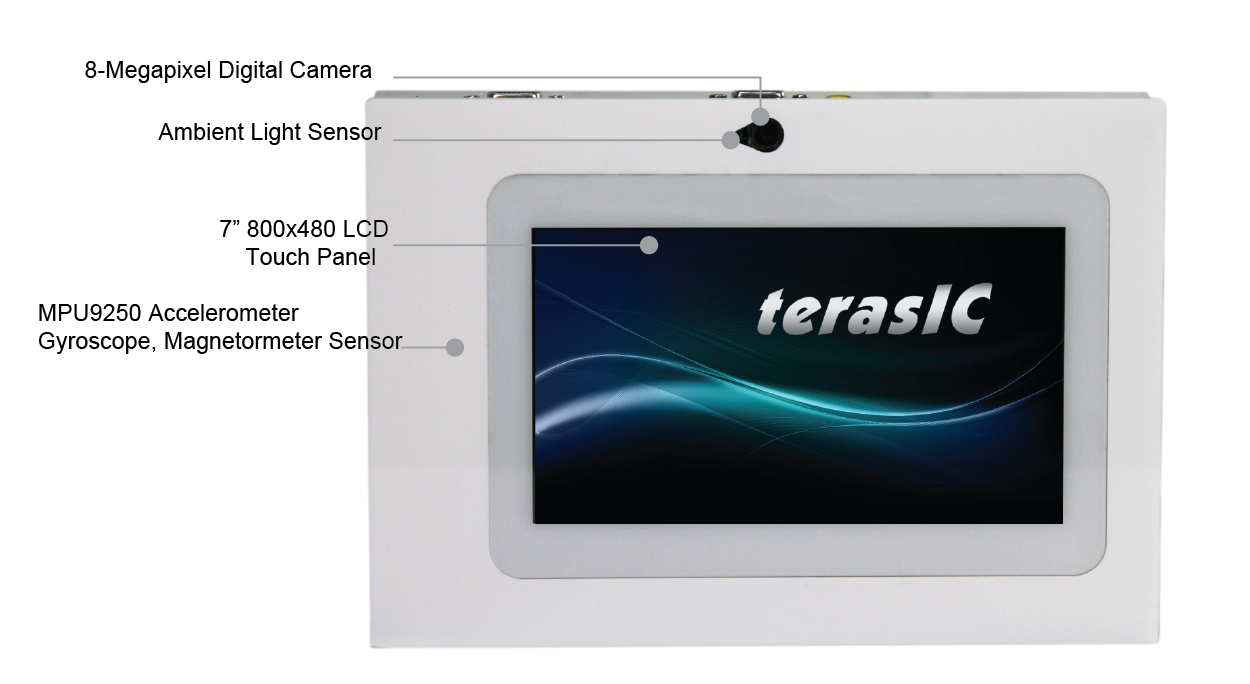

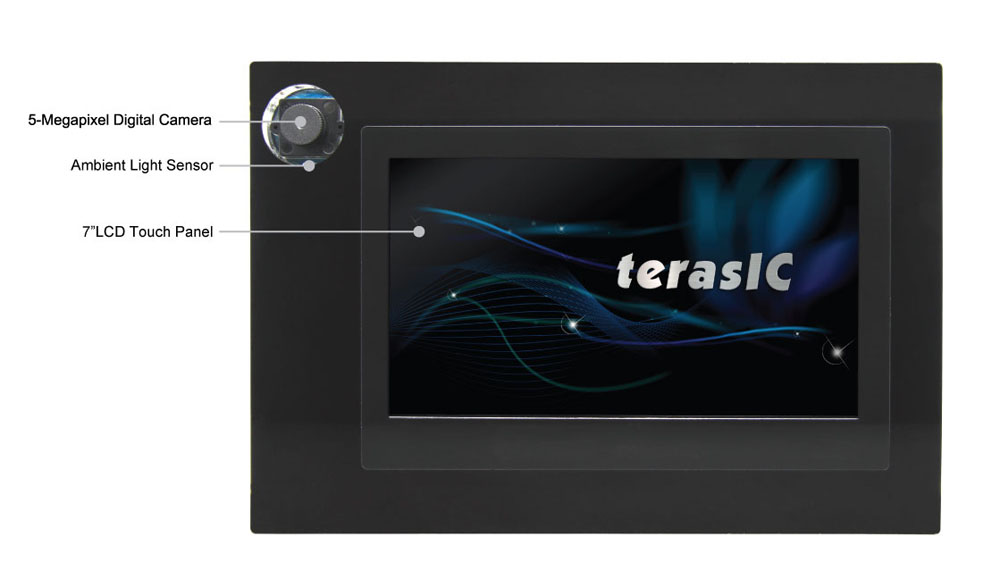

● Layout
- Size：223*160*47 mm
● Resource
Documents
| Title | Version | Size(KB) | Date Added | Download |
|---|---|---|---|---|
| VEEK-MT2-C5SOC User Manual | 1.0.0 | 2948 | 2016-09-07 |  |
Linux BSP(Board Support Package)
| Title | Version | Size(KB) | Date Added | Download |
|---|---|---|---|---|
| Readme.txt | 2 | 2016-09-07 |  | |
| Quartus GHRD (Golden Hardware Reference Design) | 2016-09-07 | |||
| LXDE Desktop Image File | 2016-09-07 | |||
| Linux Console Image File (with Framebuffer) | 2016-09-07 |
CD-ROM
| Title | Version | Size(KB) | Date Added | Download |
|---|---|---|---|---|
| VEEK-MT2-C5SOC CD-ROM | 1.0.0 | 2016-09-07 | ||
| Altera C5SoC CD-ROM | 14.1 | 2016-06-29 |  |
VEEK-MT2-C5SoC Demonstrations
VEEK-MT2-C5SoC Camera Demonstration
This demonstration shows a digital camera reference design using the 8 megapixel CMOS sensor with auto focus and 7-inch LCD modules on the VEEK-MT2-C5SoC.
The CMOS sensor module sends the raw image data to FPGA on the C5SoC board, the FPGA on the board handles image processing part and converts the data to RGB format to ,display on the LCD module.
VEEK-MT2-C5SoC Camera Demonstration
This demonstration shows a digital camera reference design using the 8 megapixel CMOS sensor with auto focus and 7-inch LCD modules on the VEEK-MT2-C5SoC.
The CMOS sensor module sends the raw image data to FPGA on the C5SoC board, the FPGA on the board handles image processing part and converts the data to RGB format to ,display on the LCD module.
VEEK-MT2-C5SoC Sensing Demonstration
This design utilizes an embedded NIOS II cpu to communicate with the on-board digital accelerometer as well as the ambient light sensor. The accelerometer outputs as a level display, and the readings for the ambient light are displayed in the upper left-hand corner.
VEEK-MT2-C5SoC Painter Demonstration
This reference design showcases VEEK-MT2's sensitive capacitive touch-screen capabilities. Supporting 5 point coordinates and multi-touch gestures, this demonstration allows users to paint with five fingers. Gestures that are drawn on the canvas are displayed in the gesture indicator box left of the color palette.
VEEK-MT2-C5SoC E-Compass Demonstration
This demonstration shows an e-compass on the LCD panel based on information measured by accelerometer and magnetometer in the MPU9250.
