TR10a-HL2 이미지 확대 보기
  • TR10a-HL2

TR10a-HL2

공유
짧은설명
TR10a-HL2 Arria 10 FPGA Development Kit / P0578
판매가
10,406,000 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
0원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000618185
제조사
Terasic Technologies
TR10a-HL2
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보


Overview

The Terasic TR10a-HL2 Arria 10 GX FPGA Dev. Kit provides the robust hardware solution for designs that demand high capacity and bandwidth memory interfacing, ultra-low latency communication, and power efficiency. Powered by the top-of-the-line Intel Arria 10 GX, the full-height, half-length accelerator aims at delivering the best system-level integration and flexibility to the industry.

The Arria® 10 GX FPGA features integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the TR10a-HL2 to be fully compliant with version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 40G QSFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. For designs that demand high capacity and high speed for memory and storage, the TR10a-HL2 delivers with six independent banks of QDRII+ SRAM, high-speed parallel flash memory. The feature-set of the TR10a-HL2 fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.

The TR10a-HL2 has a PCIe x16 edge connector which includes two PCIe Gen3 x8 interfaces. Each interface is directly connected to the FPGA PCIe Hard IP. It allows one PCIe Gen3 x8 connection in standard PCIe slot or two PCIe Gen3 x8 connections in a PCIe bifurcation slot. With dual PCIe Gen3 x8 interfaces, the TR10a-HL2 board can provide double the throughput rate than that of the TR10a-HL board.


Specification

FPGA

  • Altera Arria 10 GX FPGA (10AX115N2F45E1SG)



FPGA Configuration

  • On-Board USB Blaster II or JTAG header for FPGA programming
  • Fast passive parallel (FFPx16) configuration via MAX II CPLD and flash memory

Memory

  • 128MB FLASH
  • 6 Independent 550 MHz QDRII+SRAMs, 18-bits data bus and 72Mbit for each



Communication and Expansion

  • Four QSFP+ connectors
  • PCIe x16 edge connector (includes dual pcie gen3 x8 interfaces)
  • One 2x5 RS422 expansion header
  • One 2x4 GPIO expansion header

Others

  • General user input / output:
    • 4 LEDs
    • 1 Bracket LED Array
    • 4 push-buttons
    • 2 DIP switches
  • On-Board Clock
    • 50MHz Oscillator
    • Programmable Clock Generator
  • System Monitor and Control
    • Temperature sensor
    • Power Monitor
    • Fan control
  • Power
    • PCI Express 6-pin power connector, 12V DC Input
    • PCI Express edge connector power
  • Mechanical Specification
    • PCI Express standard height and 1/2-length



Block Diagram

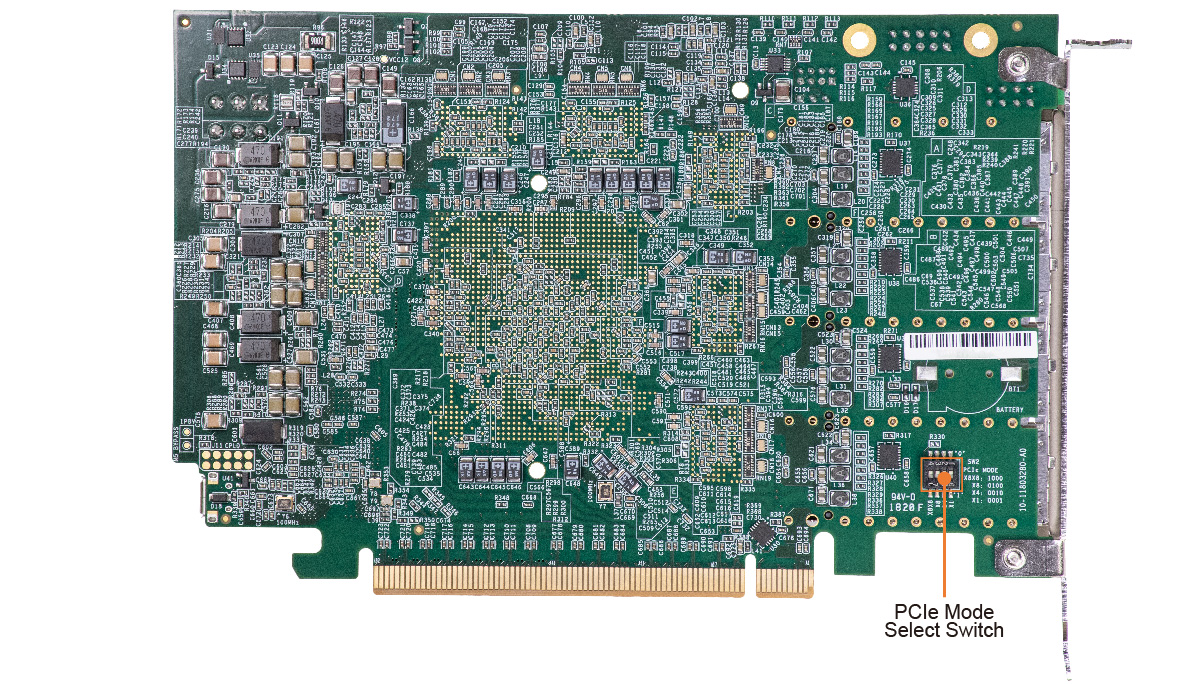

Layout

  • Size:106.65x167.64mm

Resource

Documents

TitleVersionSize(KB)Date AddedDownload
TR10a-HL2 User Manual1.193472019-07-02

CD-ROM

TitleVersionSize(KB)Date AddedDownload
TR10a-HL2 CD-ROM1.0.2 2019-07-02




Kit Contents

  1. TR10a-HL2 Development Board
  2. TR10a-HL2 Quick Start Guide
  3. Micro USB Cable
  4. Screw & Copper Pillar Package
  5. Fan (Installed)
  6. AC Power Cord
  7. Power Supply & Power Cable
  8. PCIe Bracket (Installed)

Quartus design software license is not included in this kit.
