Terasic DE10-Pro Stratix 10 GX/SX FPGA Development Kit provides the ideal hardware solution for designs that demand high capacity and bandwidth memory interfacing, ultra-low latency communication, and power efficiency. With a full-height, 3/4-length form-factor package, the DE10-Pro is designed for the most demanding high-end applications, empowered with the top-of-the-line Intel Stratix 10 GX/SX, delivering the best system-level integration and flexibility in the industry.
The Stratix 10 GX/SX FPGA features integrated transceivers that transfer at a maximum of 28 Gbps, allowing the DE10-Pro to be fully compliant with version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 100G/40G QSFP28 modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. For designs that demand high capacity and high speed for memory and storage, the DE10-Pro provides 4 independent banks of DDR4 SO-DIMM RAM modules and high-speed parallel flash memory. (The sockets can work with Terasic's QDRII or QDR-IV memory modules). The feature-set of the DE10-Pro fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.
![]() | ![]() | ![]() | ![]() | ![]() | ||||
High Frequency Trading | High Performance Computing | Instrumentation | Military & Defence | Broadcast & Video |
▶ Specifications

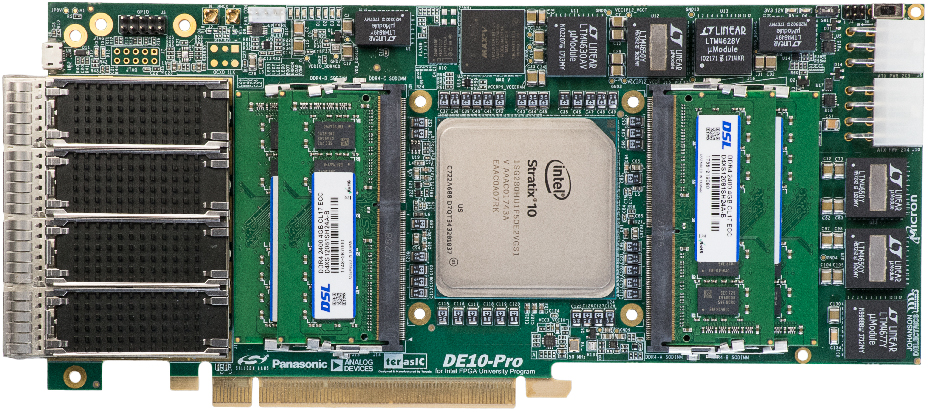

The four DDR4 SODIMM sockets are divided into two groups.

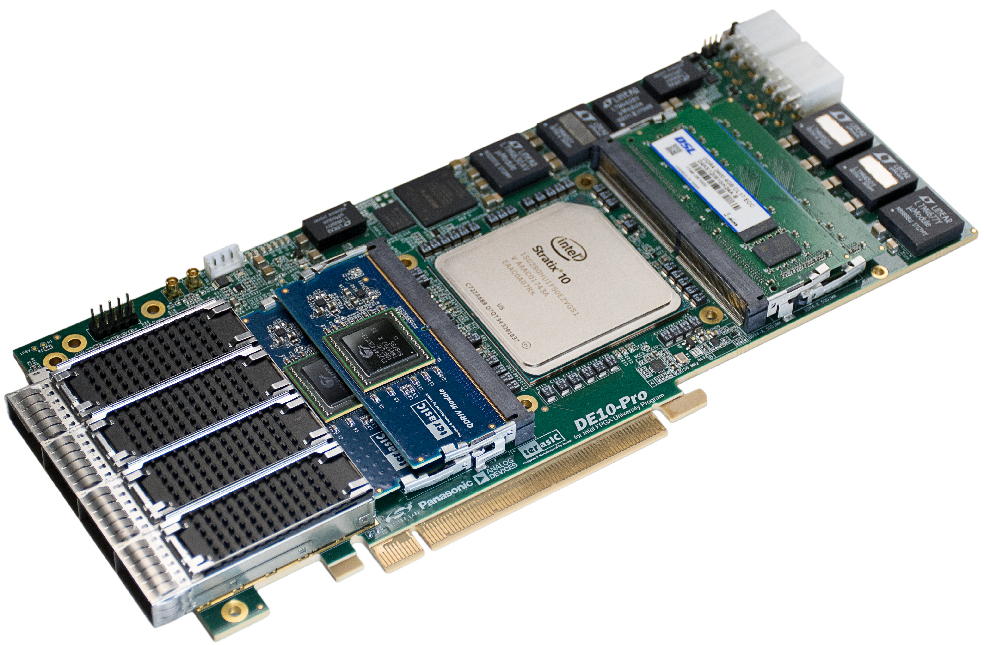

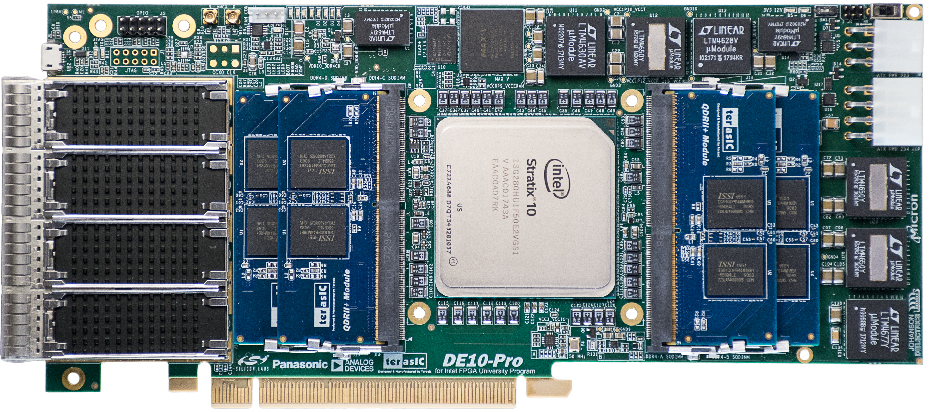

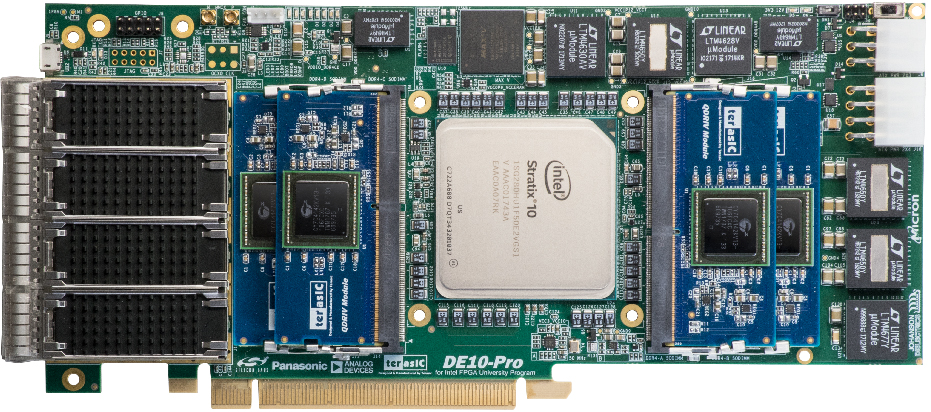

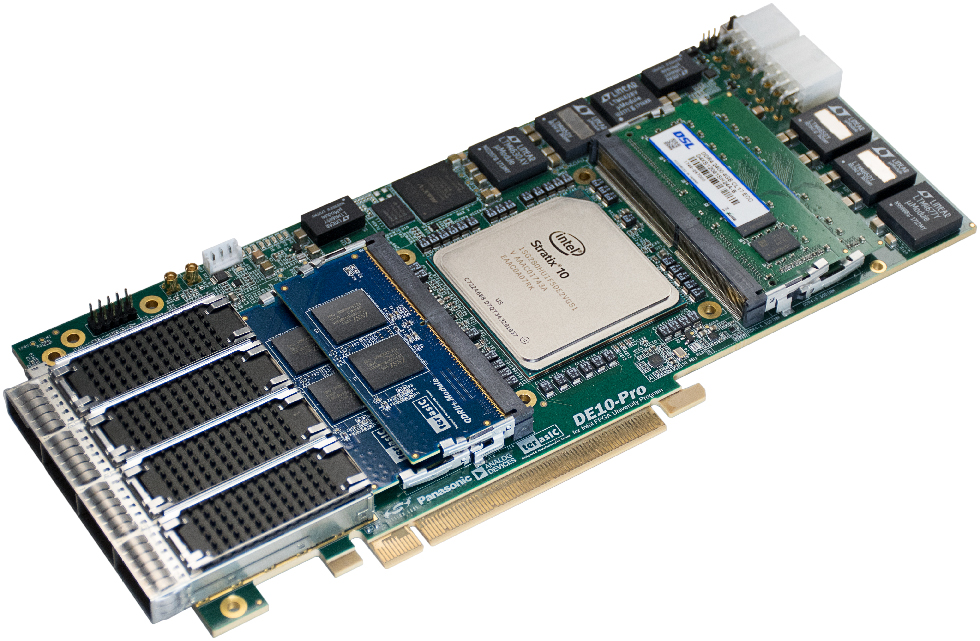

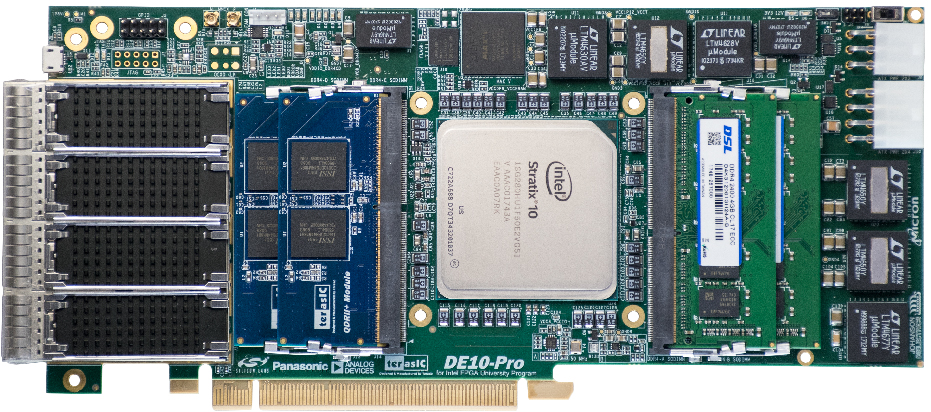

For better user flexibility, two different memory modules can be inserted separately in right & left groups. For example, users can insert two DDR4 modules on the right side and two QDRII+ SRAM modules on the left side.
Limitation: The two SODIMM sockets must be inserted with the same memory to prevent dysfunction on memory module that requires higher voltage.
▶ Layout
▶ Resources
Title | Version | Size(KB) | Date Added | Download |
---|---|---|---|---|
DE10-Pro User Manual | 1.1 | 8758 | 2018-09-04 | ![]() |
Title | Version | Size(KB) | Date Added | Download |
---|---|---|---|---|
DE10-Pro CD-ROM | 1.0.3 | 2018-09-04 |
More resources about IP and Dev. Kit are available on Altera User Forums.
