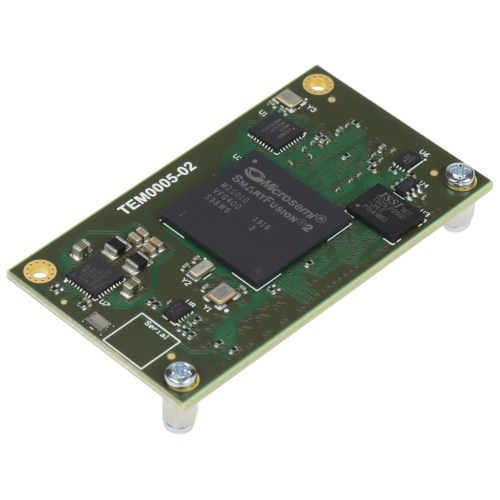

The Trenz Electronic TEM0005-02 is a low cost small-sized FPGA module integrating a Microchip SmartFusion® 2 FPGA and 32 MByte Flash memory for configuration and operation. SmartFusion® 2 combines a 166 MHz Cortex-M3 MCU including 256 KByte Flash and 80 KByte SRAM, as well as 12 kLUT FPGA Core Logic.

Key Features

• Microchip SmartFusion® 2 SoC M2S010-VFG400I FPGA
• 256 MByte DDR3 SDRAM
• 32 MByte QSPI Flash
• Samtec ST5 160 pin B2B Connector
• Crypto Authentication Device (optional)
• 100 Mbps Ethernet PHY
• Serial EEPROM for MAC Address
• 14 x Differential pairs (28 x single ended) with variable bank voltage supply
• 77 x GPIO (ULPI, 2xI2C, UART, 2xSPI)
• Power Supply Monitor
• Size 31 x 56 mm



Scope of Delivery

• 1 x TEM0005-02-010I Trenz Electronic FPGA module with Microchip Smartfusion® 2 FPGA
• 4 x screws
• 2 x bolts

Additional Information

• Manufacturer's article number: TEM0005-02-010I
• Trenz Electronic TEM0005 Wiki
• Support Forum
