▶ Product Description

The T-Core presents a robust hardware design platform built around the Intel MAX 10 FPGA. It is well equipped to provide cost effective, single-chip solutions in control plane or data path applications and industry-leading programmable logic for ultimate design flexibility. With MAX 10 FPGA, you can get lower power consumption / cost and higher performance than previous generation. When you need high-volume applications, including protocol bridging, motor control drive, analog to digital conversion, and handheld devices, the T-Core is your best choice.

The T-Core development board includes hardware such as on-board USB-Blaster II, QSPI Flash, ADC header, WS2812B RGB LED and 2x6 TMD expansion header. By leveraging all of these capabilities, the T-Core is the perfect solution for showcasing, evaluating, and prototyping the true potential of the Intel MAX 10 FPGA.

T-Core also supports RISC-V CPU with on-board JTAG debug. It is an ideal platform for learning RISC-V CPU design or embedded system design.

▶ Specifications

FPGA Device

• MAX 10 10M50DAF484C7G Device
• Integrated dual ADCs, each ADC supports 1 dedicated analog input and 8 dual function pins
• 50K programmable logic elements
• 1,638 Kbit M9K Memory
• 5,888 Kbits user flash memory
• 144 18 × 18 Multiplier
• 4 PLLs

User Interface

• Button x2
• Dip Switch x4
• Green LED x4
• RGB LED x4

JTAG

• On-board USB-Blaster II for programming MAX10
• On-board USB-Blaster II for programming RISC-V
• JTAG Master for programming the FPGA on other Boards.

Clock and Memory Devices

• Two 50 MHz single-ended, external oscillator clock source
• One 10 MHz single-ended, external oscillator clock source
• 64Mb QSPI Flash (Store RISC-V Code)

Expansion Connector

• 2x6 TMD Expansion Header
• 1x10 ADC Header
• Two 1x3 RGB LED Expansion header

Power Supply

• USB Type mini-AB port (5V)
• 2-pin external power header (4.4-5.6V)

Block Diagram

Connectivity

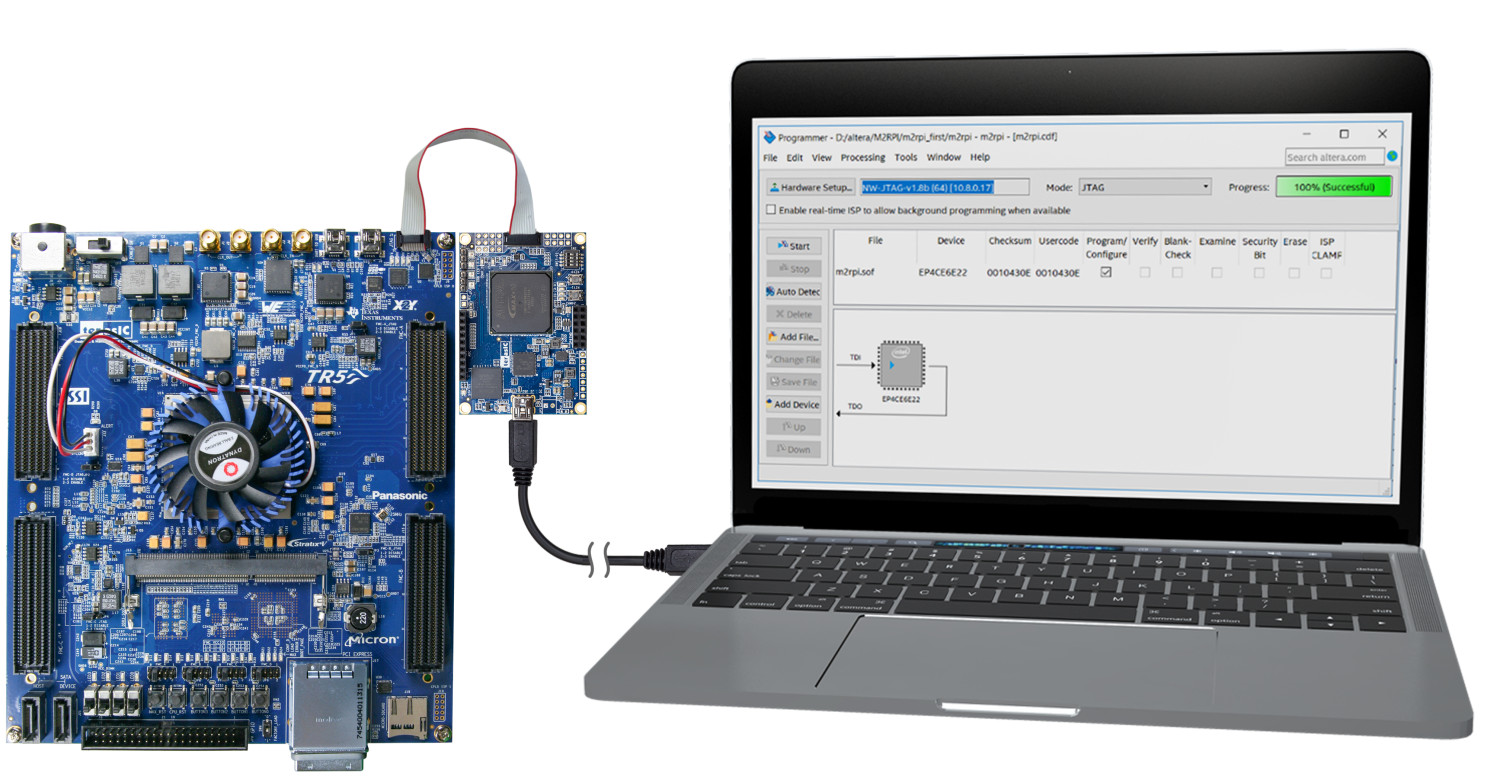

USB-Blaster II Download Cable

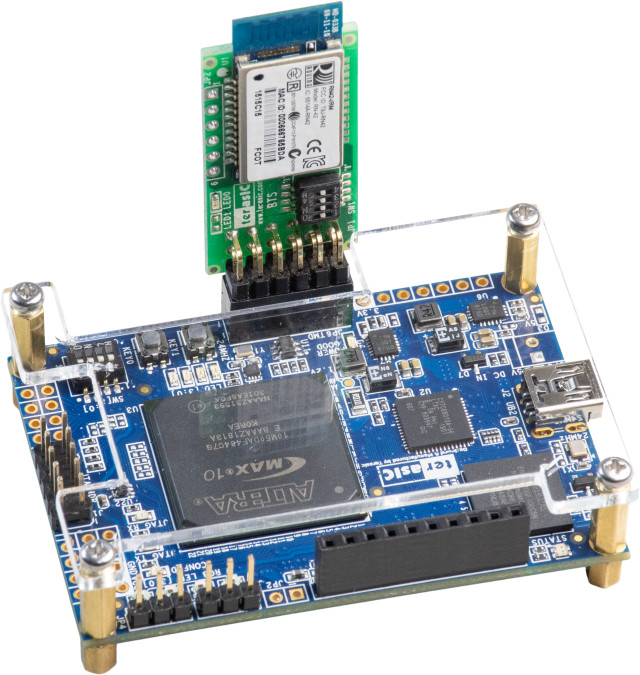

Connect BTS-TMD

Connect WS2812B LED Strip

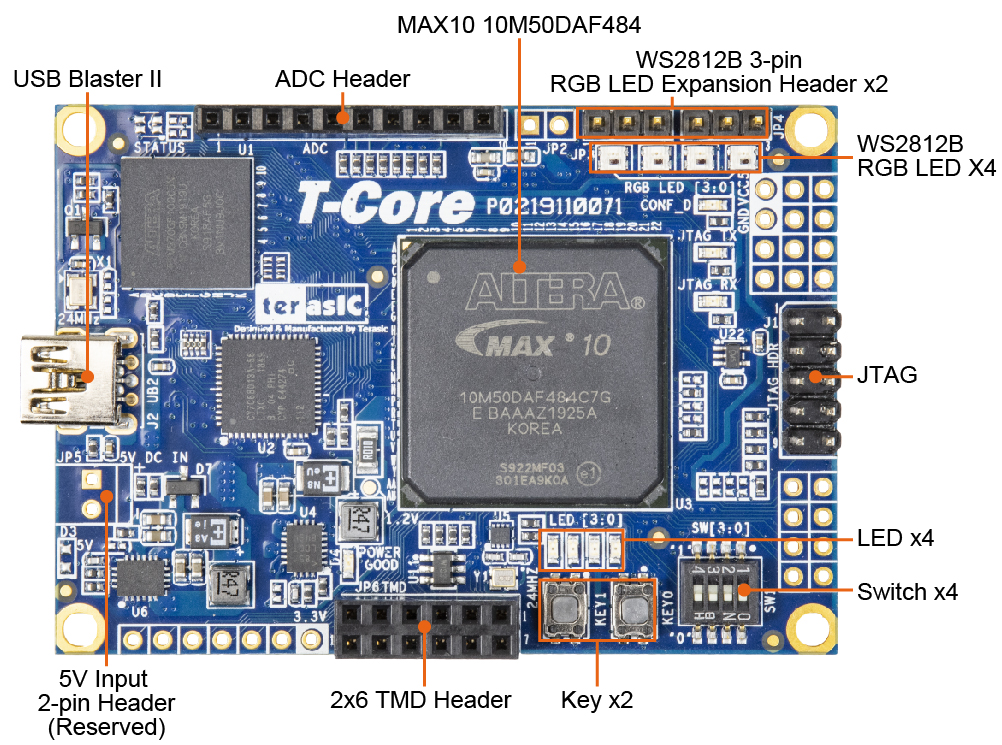

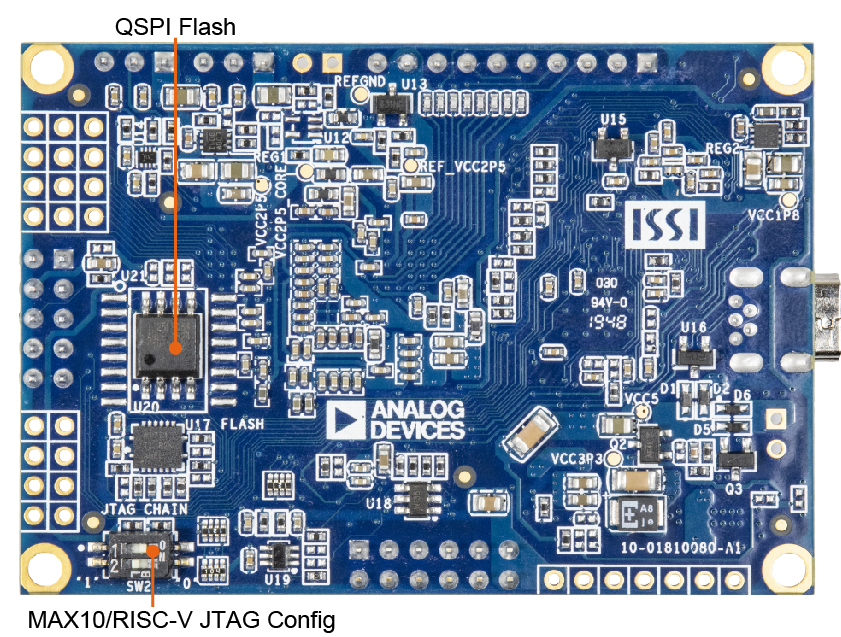

▶ Layout

Board Size: 47X67.4 mm

▶ Resources

Documents

Title	Version	Size(KB)	Date Added	Download
T-Core User Manual	1.2	6699	2020-04-30

CD-ROM

T-Core RISC-V BSP

▶ Kit Contents

1. T-Core board
2. Mini USB Cable
3. Flat Ribbon Cable
