Description

The MYD-YA157C development board consists of a compact CPU Module MYC-YA157C and a base board to provide a complete evaluation platform for ST STM32MP1 Processors which features dual-core Arm Cortex-A7 operating at up to 650 MHz and an embedded Cortex-M4 core operating at up to 209 MHz. Typical applications are industrial control, consumer electronics, smart home, medical and more other energy-efficient applications which require rich performance and low power.


The MYD-YA157C has a base board which installed MYC-YA157C CPU Module through 1.0mm pitch 164-pin stamp-hole (Castellated-Hole) interface. The MYC-YA157C CPU Module is a highly-integrated SoM which combines the STM32MP157 processor (STM32MP157AAC3), 512MB DDR3, 4GB eMMC as well as an integrated GigE PHY chip. The base board has brought out rich peripherals through connectors and headers such as RS232, RS485, USB Type-C DRP, USB2.0 HOST, Gigabit Ethernet, WiFi/Bluetooth, CAN, Micro SD Card Slot, JTAG, RGB888 based LCD/HDMI, MIPI-DSI, etc.


The MYD-YA157C is running Linux OS. MYIR provides abundant software resources for Yocto 2.6 based MYIR MEasy-HMI system, Yocto 2.6 based ST Weston system, Yocto 2.6 based MYIR MEasy-IOT system and Ubuntu 18.04 system including kernel and driver source code, STM32CubeProgrammer and STM32CubeMX tools to enable users to start their development rapidly and easily.

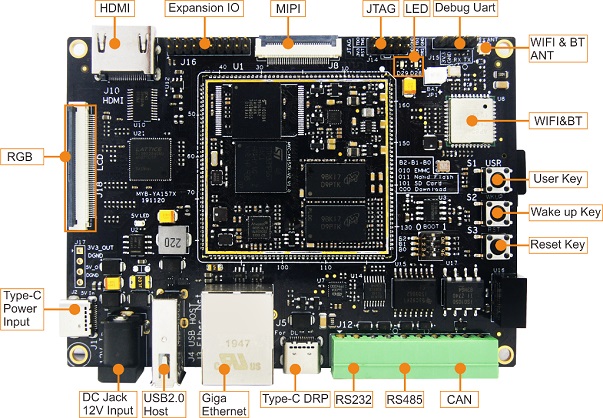

MYD-YA157C Development Board Top-view





MYD-YA157C Development Board Bottom-view



The MYD-YA157C development board is delivered with one Quick Start Guide, one Type-C cable, one USB to TTL serial cable and one WiFi/Bluetooth antenna to provide user a complete platform for evaluating and prototyping based on STM32MP1 series microprocessors. MYIR also offers MY-CAM002U Camera Module and MY-TFT070CV2 LCD Module as options for the board.



Features

Mechanical Parameters

  • Dimensions: 110mm x 80mm (base board), 45mm x 43mm (CPU Module)
  • PCB Layers: 4-layer design (base board) or USB Typpower supply, 8-ayer design (CPU Module)
  • Power supply: +12V/1.5A (base board) or USB Type-C power supply, 5V/0.5A (CPU Module)
  • Working temperature: 0~70 Celsius (commercial grade) or -40~85 Celsius (industrial grade)
    (WiFi/BT Module: -30~85 Celsius)

The MYD-YA157C Controller Board (MYC-YA157C CPU Module)

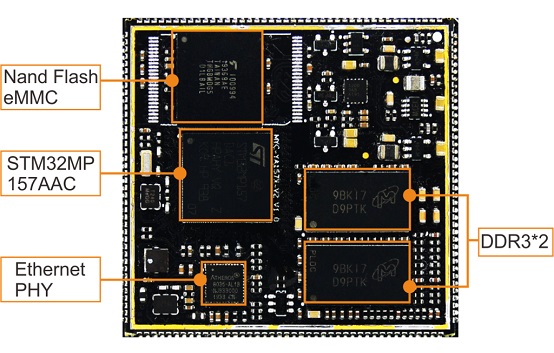

MYC-YA157C CPU Module

Processor

  • STMicroelectronics STM32MP157AAC3 Microprocessor
    Up to 650MHz dual-core Arm Cortex-A7 32-bit RISC core
    Up to 209MHz Arm Cortex-M4 32-bit RISC core with FPU/MPU
    Integrated 3D GPU

Memory

  • 512MB DDR3 (supports up to 1GB DDR3)
  • 4GB eMMC Flash (supports up to 64GB eMMC)
  • Nand Flash (alternative design with eMMC, supporting 256MB / 512MB /1GB Nand Flash)

Peripherals and Signals Routed to Pins

  • One 10/100/1000M Ethernet PHY
  • 1.0mm pitch 164-pin stamp hole expansion interface
    - 8 x Serial ports
    - 6 x I2C
    - 6 x SPI
    - 1 x SAI
    1 x USB 2.0 Host and 1 x USB 2.0 OTG
    - 2 x SDIO
    - 2 x CAN
    - 1 x MIPI-DSI
    - 1 x
    Digital Camera Interface (DCMI)
    1 x RGB Interface (supports RGB888, resolution up to 1366 x 768 @60fps)
    - Up to 97 x GPIOs

    Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and pin-out description file.

The MYD-YA157C Development Board Base Board

  • Serial ports
  • - Debug serial port (TTL)
    - 1 x RS232
    - 1 x RS485 (isolated power signal)
    • USB
      - 1 x USB2.0 Host ports
      - 1 x USB Type-C DRP
    • 1 x 10/100/1000 Mbps Ethernet interface (RJ45)
    • 1 x CAN (isolated power signal)
    • 1 x JTAG interface (2.0mm pitch 2 x 5-pin headers)
    • WiFi/Bluetooth Module (complies with IEEE 802.11 b/g/n standard and supports Bluetooth V4.2)
    • 1 x external antenna connector (for WiFi/Bluetooth)
    • 1 x TF card slot
    • RGB888 based LCD/HDMI (supports resolution up to 1366 x 768 pixels at 60Hz)
    • 1 x MIPI-DSI Display Interface (supports resolution up to 1366 x 768 pixels at 60Hz)
    • 3 x Buttons (one for RESET, one for Wake up and one for USER)
    • 1 x 2.0mm 2*10-pin male expansion header

    OS Support

    • Linux 4.19.94

    Hardware Specification

    The MYC-YA157C CPU Module is using STMicroelectronics STM32MP157AAC3 Microprocessor with 12 x 12 mm, 0.5 mm pitch, TFBGA361 package which is among the STM32MP1 Series. The STM32MP1 series is based on a heterogeneous single or dual Arm Cortex-A7 and Cortex-M4 cores architecture, strengthening its ability to support multiple and flexible applications, achieving the best performance and power figures at any time. The Cortex-A7 core provides access to open-source operating systems (Linux/Android) while the Cortex-M4 core leverages the STM32 MCU ecosystem. It is available in 3 different lines which are pin-to-pin compatible:

    • STM32MP157: Dual Cortex-A7 cores @ 650 MHz, Cortex-M4 core @ 209 MHz, 3D GPU, DSI display interface and CAN FD
    • STM32MP153: Dual Cortex-A7 cores @ 650 MHz, Cortex-M4 core @ 209 MHz and CAN FD
    • STM32MP151: Single Cortex-A7 core @ 650 MHz, Cortex-M4 core @ 209 MHz
      Each line comes with a security option (cryptography & secure boot)



    STM32MP1 Series Processsors



    STM32MP157 Block Diagram

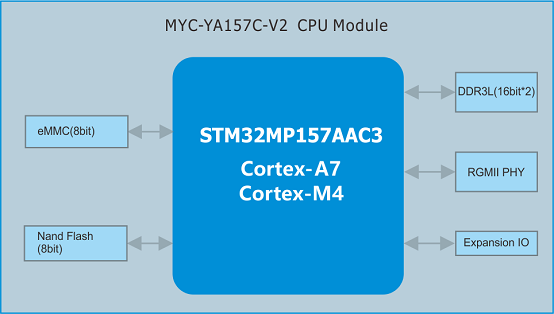

    MYC-YA157C CPU Module Function Block Diagram

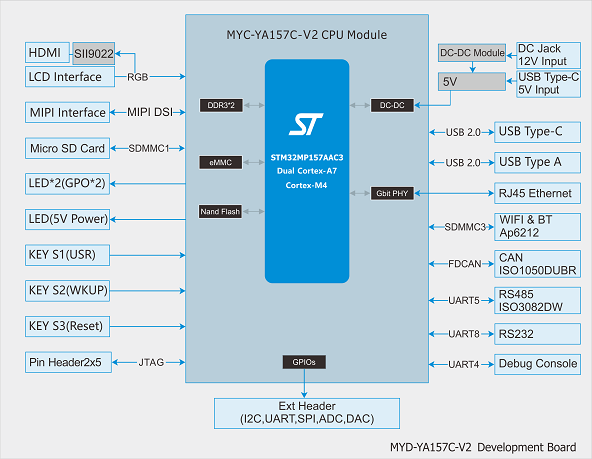

    MYD-YA157C-V2 block diagram

    MYC-YA157C CPU Module Dimension Chart


    MYD-YA157C Dimension Chart


    Software Features

    The MYD-YA157C runs Linux OS and is provided with software packages. Based on Linux 4.19.94 kernel, MYIR has provided abundant software resources for Yocto 2.6 based MYIR MEasy-HMI system (available later), Yocto 2.6 based ST Weston system, Yocto 2.6 based MYIR MEasy-IOT system and Ubuntu 18.04 system including kernel and driver source code, STM32CubeProgrammer and STM32CubeMX tools to enable users to start their development rapidly and easily.



    Item

    Features

    Description

    Source Code

    Bootstrap program

    TF-a-2.0

    Arm Trusted Firmware

    YES

    Bootloader

    U-boot-2018.11

    Kernel bootstrap

    YES

    Linux kernel

    Linux-4.19.94

    Customized based on ST kernel_4.19.94 version for MYD-YA157C

    YES

    Drivers

    Nand Flash

    Nand Flash driver

    YES

    USB Host

    USB Host driver

    YES

    USB OTG

    USB OTG driver

    YES

    I2C

    I2C driver

    YES

    SPI

    SPI driver

    YES

    TTY

    TTY Serial port driver

    YES

    Ethernet

    10M/100M/1000M Ethernet driver

    YES

    MMC

    eMMC/TF card driver

    YES

    LCD

    LCD driver, supports MYIR’s 7-inch LCD with 800 x 480 pixels resolution

    YES

    HDMI

    HDMI driver

    YES

    Touch

    Capacitive touch screen driver

    YES

    PWM

    PWM driver

    YES

    RTC

    RTC driver

    YES

    GPIO

    GPIO driver

    YES

    CAN

    FDCAN Bus driver

    YES

    RS485

    RS485 driver

    YES

    RS232

    RS232 driver

    YES

    MIPI

    MIPI display driver

    YES

    Camera

    USB Camera driver (OV2659)

    YES

    ADC

    ADC driver

    YES

    WiFi & BT

    AP6212 WiFi/BT driver (SDIO)

    YES

    Watchdog

    Watchdog driver

    YES

    File system

    rootfs

    Yocto 2.6 for ST Weston system

    YES

    rootfs

    MEasy HMI demo system developed by MYIR

    YES

    rootfs

    MEasy-IOT demo system developed by MYIR

    YES

    Ubuntu core system

    Based on ubuntu18.04

    YES

    Tool

    SDK

    arm-ostl-linux-gnueabi 8.2.0

    BIN

    Yocto2.6

    System construction tool

    YES

    STM32CubeProgrammer

    ST programmer software

    BIN

    Win32DiskImager

    Creating SD card boot tool

    BIN

    SDCardUpdater

    Creating production burning tool

    YES

    Applications

    GPIO LED

    LED example

    YES

    GPIO KEY

    KEY example

    YES

    NET

    TCP/IP Socket C/S example

    YES

    RTC

    RTC example

    YES

    RS232

    RS232 example

    YES

    RS485

    RS485 example

    YES

    CAN

    CAN example

    YES

    LCD

    LCD Display example

    YES

    Camera

    Camera Display example

    YES

    stm32cube_fw_mp1

    M4 core testing example

    YES

    IDE

    STM32CubeIDE

    ST Integrated Development Environment

    BIN
































































    MYD-YA157C Software Features



    MEasy-HMI System Structure



    MEasy-IOT System Structure


    Relative Download and Links

    You can download relative chip datasheet, products datasheet, user manual, software package from below.
    Detailed technical data are available on request.



    1MYC-YA157C CPU Module Overview1.54 MB
    2ST STM32MP157A Datasheet3.32 MB
    3MYC-YA157C Pinouts Description43 KB
    4MYD-YA157C Development Board Overview
    2.18 MB
