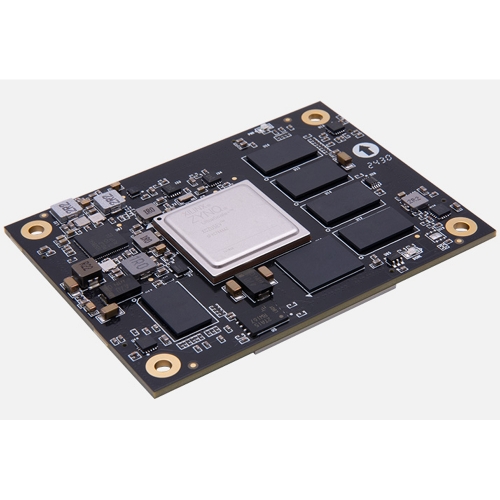

ACU5EV

HOME >

ACU5EV

짧은설명: ACU5EV SoM with AMD Zynq™ US+ MPSoC XCZU5EV

판매가: 1,518,000원 <관세ㆍ부가세 포함>

구매제한: 옵션당 최소 1개

구매혜택: 할인 : 적립 마일리지 :

배송비

0원 / 주문시결제(선결제) 조건별배송

금액별배송비

0원 이상 ~ 100,000원 미만 55,000원
100,000원 이상 ~ 200,000원 미만 44,000원
200,000원 이상 ~ 300,000원 미만 33,000원
300,000원 이상 ~ 400,000원 미만 22,000원
400,000원 이상 ~ 500,000원 미만 11,000원
500,000원 이상 0원

배송비 계산 기준 : 판매가

택배

방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호

상품코드: 1000618522

제조사: ALINX

ACU5EV

0원

총 상품금액

총 할인금액

총 합계금액

상품상세정보
배송안내
교환 및 반품안내
상품후기 (0)
상품문의 (0)

상품상세정보

▶ Product Description

The ACU2CG/3EG/4EV/5EV System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

▶ Applications

● Artificial Intelligence
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Drive / Motion Control
● Industrial Internet of Thing
● Cloud Computing Security
● Machine Vision
● Medical Endoscop
● Video and Image Processing

▶ Key Features

● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53
(Dual-core Arm Cortex-A53 for ACU2CG)
◆ ARM® dual-core Cortex™-R5F
◆ Mali-400 MP2 GPU
◆ H.264 / H.265 Video Codec (only for EV devices)
◆ 16nm FinFET+ FPGA fabric● Pluggable module with 4 x Panasonic board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS (2 GByte for ACU2CG)
● 1 GByte (16-bit) DDR4 SDRAM on PL (only for ZU3/4/5)
● 32 MB QSPI Flash
● 32 GB eMMC Flash (8 GB for ACU2CG)
● PCIe® Gen3 ×4 (PL, only for ZU4/5), PCIe® Gen2 ×4 (PS)
● Gigabit transceivers
◆ 4 x PS-GTR, up to 6 Gbps
◆ 4 x PL GTH, up to 12.5 Gbps (only for ZU4/5)● User I/Os
◆ 54 PS MIOs
◆ 180 FPGA I/Os (84 HD + 96 HP)● Work temperature range of -40°C to +85°C (only for ZU3/4/5)
● 12V single supply
● Dimensions: 80 x 60 mm form factor

▶ Specifications

Module Features

Featuring the AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU5EV-2SFVC784I

* If you want to design a base board based on this Zynq™ UltraScale+™ MPSoC system-on-module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

* We have Zynq™ UltraScale+™ MPSoC development boards AXU5EVB-P and AXU5EVB-E that uses this Zynq™ UltraScale+™ MPSoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

▶ What's Inside

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU5EV System-on-Module/SoM

MPSoC SOM	1

▶ Product Selection Matrix

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	eMMC	GTR	Temp. Range	USD Price
ACU2CG	√	XCZU2CG-1SFVC784E	2 GB	N/A	32 MB	8 GB	4	0°C~+70°C	404
ACU2EG		XCZU2EG-1SFVC784I	4 GB	1 GB	32 MB	8 GB	4	-40°C~+85°C	TBD
ACU2CG-I	√	XCZU2CG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	494
ACU3CG		XCZU3CG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	TBD
ACU3EG	√	XCZU3EG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	539
ACU4CG		XCZU4CG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	TBD
ACU4EG		XCZU4EG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	TBD
ACU4EV	√	XCZU4EV-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	749
ACU5EV	√	XCZU5EV-2SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	898

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
