▶ Product Description

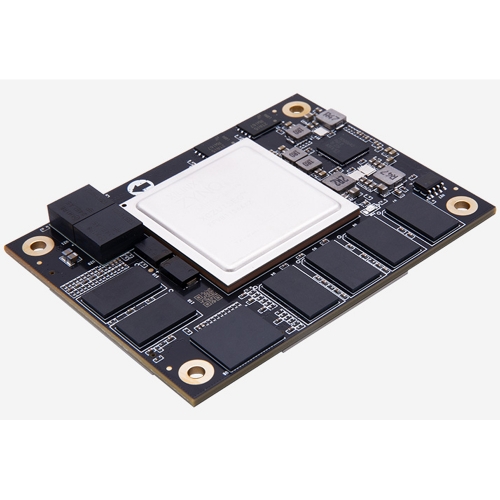

The ACU9EG/15EG System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

▶ Applications

● Artificial Intelligence
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Drive / Motion Control
● Industrial Internet of Thing
● Cloud Computing Security
● Machine Vision
● Medical Endoscop
● Video and Image Processing

▶ Key Features

● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
◆ ARM® dual-core Cortex™-R5F up to 533 MHz
◆ Mali-400 MP2 GPU

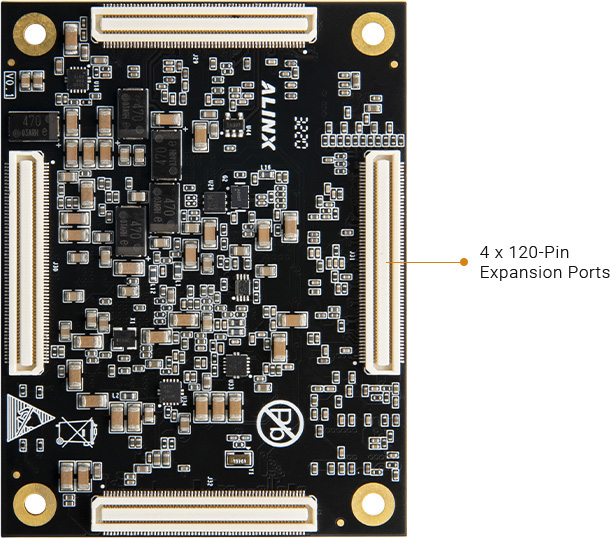

◆ 16nm FinFET+ FPGA fabric● Pluggable module with 4 x Panasonic board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS
● 2 GByte (32-bit) DDR4 SDRAM on PL
● 64 MB QSPI Flash
● 32 GB eMMC Flash
● PCIe® Gen2 ×4 (PS)
● Gigabit transceivers
◆ 4 x GTR, up to 6 Gbps
◆ 16 x GTH, up to 16.3 Gbps
● User I/Os
◆ 54 PS MIOs
◆ 162 FPGA I/Os (66 HD + 96 HP)● Work temperature range of -40°C to +85°C
● 12V single supply

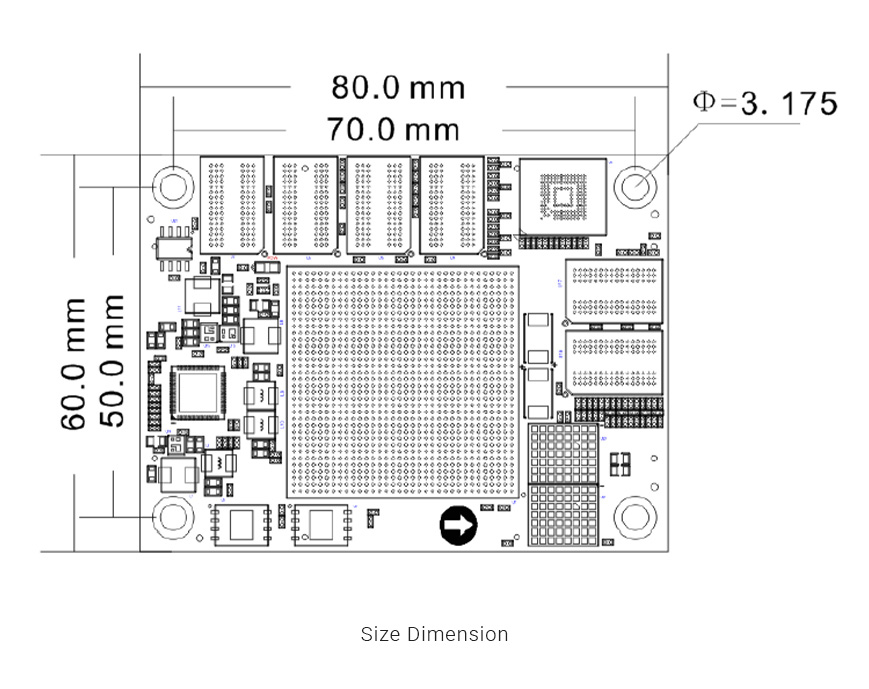

● Dimensions: 80 x 60 mm form factor

▶ Specifications

Module Features

Featuring the AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU9EG-2FFVB1156I

* If you want to design a base board based on this Zynq™ UltraScale+™ MPSoC System-on-Module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

* We have Zynq™ UltraScale+™ MPSoC development boards AXU9EGB that uses this Zynq™ UltraScale+™ MPSoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

▶ What's Inside

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU9EG System-on-Module/SoM

MPSoC SoM	1

▶ Product Selection Matrix

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	eMMC	GTR	GTH	Temp. Range	USD Price
ACU6CG		XCZU6CG-2FFVB1156I	4 GB	2 GB	64 MB	32 GB	4	16	-40°C~+85°C	TBD
ACU6EG		XCZU6EG-2FFVB1156I	4 GB	2 GB	64 MB	32 GB	4	16	-40°C~+85°C	TBD
ACU9EG	√	XCZU9EG-2FFVB1156I	4 GB	2 GB	64 MB	32 GB	4	16	-40°C~+85°C	1497
ACU15EG	√	XCZU15EG-2FFVB1156I	4 GB	2 GB	64 MB	32 GB	4	16	-40°C~+85°C	1797

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
