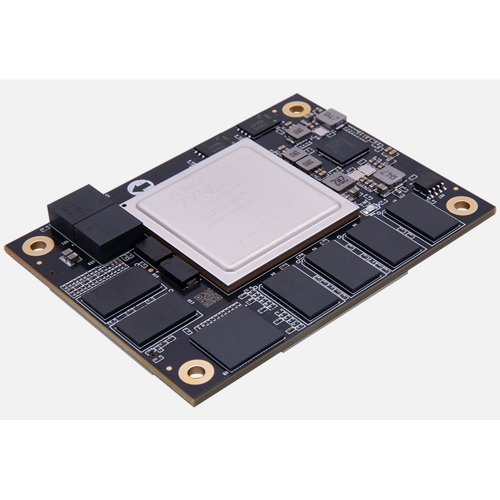

ACU15EG

HOME >

ACU15EG

짧은설명: Xilinx Zynq UltraScale+ MPSoC SOM AI FPGA Core Board XCZU15EG

판매가: 3,091,000원 <관세ㆍ부가세 포함>

구매제한: 옵션당 최소 1개

구매혜택: 할인 : 적립 마일리지 :

배송비

0원 / 주문시결제(선결제) 조건별배송

택배

방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호

상품코드: 1000618524

제조사: ALINX

ACU15EG

0원

총 상품금액

총 할인금액

총 합계금액

상품상세정보
배송안내
교환 및 반품안내
상품후기 (0)
상품문의 (0)

상품상세정보

Xilinx Zynq UltraScale+ MPSoC FPGA High-end FPGA Board

Quad-core ARM® Cortex-A53 and Dual-core Cortex-R5 Real-time Processors

Apply to 5G Wireless Infrastructure, High-Speed Data Exchange and Storage Industrial Control, AI intelligence, Cloud computing 4K Video Transmission Processing, and Aerospace

·ARM CPU
4 x ARM CORTEX-A53 + Dual Core ARM CORTEX-R5
·Chip CPU
Mali™-400 MP2 GPU

·6GB DDR4
PS 4GB DDR4、PL 2GB DDR4
·FLASH storage
8GB eMMC FLASH、64MB QSPI FLASH

key Features

Corresponding Development Board

·AXU15EG

*Learn about the corresponding development board, Click to see details>>

Product Performance

Main Parameters

Core board

ACU15EG

FPGA Chip

XCZU15EG-2FFVB1156I

Chip CPU

4x ARM Cortex-A53, 1.333GHz，Dual Core Cortex™-R5, 533MHz

Chip GPU

Mali™-400 MP2

RAM

PS DDR4, 4GB, 64bit, 2400Mbps
PL DDR4, 2GB, 32bit, 2400Mbps

PS-end High Speed Connection

PCIe® Gen2 x4, 2x USB3.0, SATA 3.1,DisplayPort, 4x Tri-mode Gigabit Ether net

PS-end General Connection

2xUSB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B,2x I2C, 2x SPI, 4x 32b GPIO

PL-end GTH

12.5Gb/sx16

Chip Level

Industrial Grade

Working Temperature

-40°c~85°c

Speed Grades

-2

Logic Cells

747K

CLB Flip-Flops

682K

Look Up Tables (LUTs)

341K

Global Clock

DSP Slices

3,528

MAX.DISTRIBU-TED RAM

11.3Mb

BLOCK RAM

26.2Mb

ULTRARAM

31.5Mb

EMMC FLASH

8GB

QSPI FLASH

64MB

HP I/O

HD I/O

Interface and Function

QSPI Flash

2 Pieces of 256 Mbit QSPI Flash, Used as FPGA User Data Storage

EMMC Flash

8GB, Used as Large-Capacity Storage System

40-120 Pin Expansion Ports

Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator

33.333MHz Provide for the PS system
200MHz Provide DDR Reference Clock for the PL Logic

Power Supply Parameters

Voltage Input

Board to Board Connector, + 5V DC

Package List

FPGA SoM Board

Structure Size

Size Dimension

3.15 inch x 2.36 inch

Connector Height

0.12 Inch

Number of Layers

16-Layer Core Board PCB


XILINX VITIS-AI DPU

AI Recognition and Detection, Deep Computational Learning

Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring, traffic safety, smart construction site, smart hotel, smart agriculture, Internet of things
