짧은설명

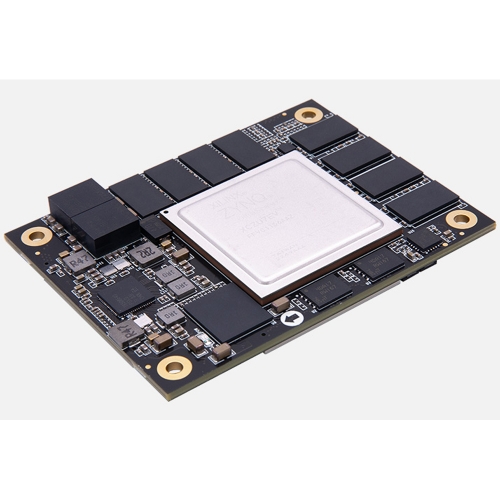

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU7EV
판매가
2,299,000 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
0원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000618632
제조사
ALINX
ACU7EVC
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보

Xilinx Zynq UltraScale+ MPSoC FPGA High-end FPGA Board

Quad Core ARM Cortex™-A53,  Dual Core ARM Cortex™-R5

Combination of Mali-400 MP2 GPU and 16nm FinFET+ Programmable Logic Integrated H.264 / H.265 video codec, codec up to 4Kx2K (60fps) video Apply to Multimedia, Automotive ADAS, Surveillance, AI Intelligence Cloud Computing, Data Exchange and Storage, Embedded Vision

  • ·ARM CPU

    4 x ARM CORTEX-A53 + Dual Core ARM CORTEX-R5

  • ·GPU Graphics Processor

    Mali™-400 MP2 GPU

  • ·8GB DDR4

    PS 4GB DDR4、PL 4GB DDR4

  • ·FLASH Storage

    8GB eMMC FLASH、64MB QSPI FLASH


key Features


Corresponding Development Board

·AXU7EV




*Learn about the corresponding development board, Click to see details>>

Product Performance

Main Parameters

SoM Module

ACU7EVB

FPGA Chip

XCZU7EV-2FFVC1156I

Chip CPU

4x ARM Cortex™-A53,1.333GHz,Cortex™-R5x2, 533MHz

RAM

PS  DDR4  4GB, 64bit  2400Mbps
PL  DDR4  4GB, 64bit  2400Mbps

GPU

Mali-400 MP2, 677MHz

Chip Level

Speed Grades: -2; Industrial Grade, Working Temperature -40°c~85°c

PS side High-Speed Connection

PCIe® Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet

PS side General Connection

2xUSB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

Logic Cells

504K

Look Up Tables (LUTs)

230.4K

Total Block RAM

11Mb

Global Clock

8

eMMC FLASH

8GB

Video Codec

H.264 / H.265

Transceiver

12.5Gb/s x16

HR I/O

46个

Trigger

460.8K

Max. Distributed RAM (Mb)

6.2Mb

UltraRAM (Mb)

27Mb

DSP Slices

1728

QSPI FLASH

64MB

PL PCIe Gen3 x16

2

HP I/O

142



Interface and Function

VCU

1 Video Codec Unit (VCU), integrated H.264 / H.265 video codec

QSPI Flash

2 Pieces totally 64 Mbit QSPI Flash, Used as FPGA User Data Storage

EMMC Flash

8GB, Used as Large-Capacity Storage System

40-120 Pin Expansion Ports

Panasonic Industrial Grade High-Speed Inter-Board Connectors

Crystal Oscillator

                        32.768KHz MHz Provide RTC (Real Time Clock) for the PS system
33.333MHz Provide Clock input for the PS system
200MHz PL System Clock Source for DDR4 Controller Reference Clock



Power Supply Parameters

Voltage Input

Board to Board Connector, + 12V DC



Package List

FPGA SoM Board

1







Structure Size

Size Dimension:

3.15 inch x 2.36 inch

Connector Height

0.36 Inch

Number of Layers

16-Layer Core Board PCB









XILINX VITIS-AI DPU

AI Recognition and Detection, Deep Computational Learning

Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring, traffic safety, smart construction site, smart hotel, smart agriculture, Internet of things


Vehicle Identification


Infrared Vehicle Recognition


Pedestrian Recognition


Indoor Person Recognition


Fire Detection


Hard Hat Detection


Concrete Defect Detection


PCB Defect Detection

Super Combination with Mali™-400 MP2 GPU, 64bit DDR4 RAM

Industiral Grade Chip Dual ARM Application Processor

4x  ARM Cortex-A53,1.333GHz;Dual Core Cortex™-R5, 533MHz;PS 4GB DDR4,64bit,Data rate 2400Mbps;PL 4GB DDR4,64bit,Data rate 2400Mbps


HD Video Concept Design

H.264 / H.265 Video Codec

Multimedia, Automotive ADAS, Surveillance and other Embedded Vision Applications


Multimedia, Automotive ADAS, Surveillance and other Embedded Vision Applications

Provide Documents to Study

Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
