Xilinx Kintex UltraScale FMC HPC Optical fiber FPGA Development board XCKU040
판매가
1,606,000 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
0원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000618709
제조사
ALINX
AXKU040
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보

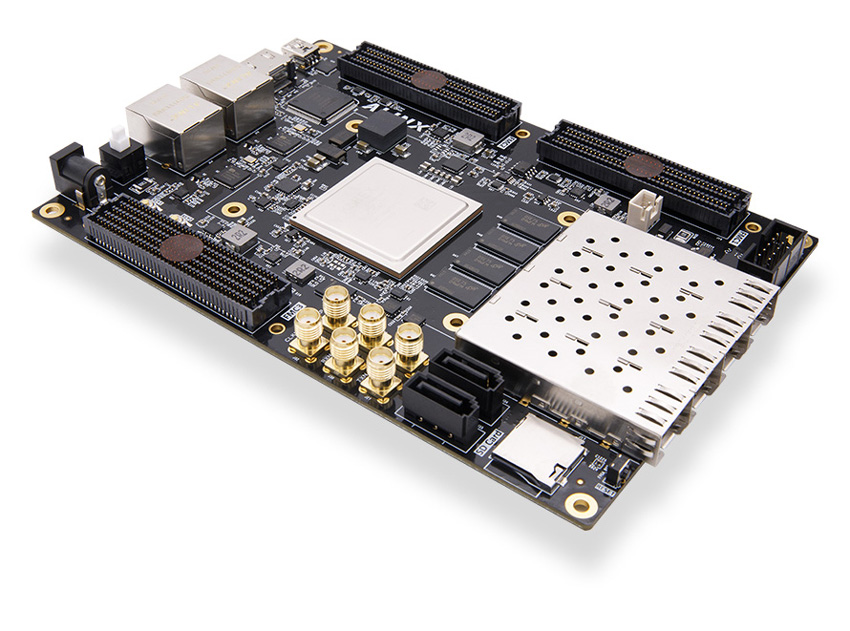

Xilinx Kintex UltraScale  FPGA High end development board

For high-speed data transmission and exchange, pre-verification and post-application of data processing is possible

·4x 10G SFP+Optical fiber interface

·4GB DDR4,64bit

·2x LPC,1xHPC FMC Expansion Interface


technical support

Linux Core: petalinux 4.9.0-xilinx-v2017.4 Development Board all supporting data are provided through Baidu Disk, after purchase, please contact customer service for request

Basic experiment
01.vivado2017.4 Installation
02.  LED water lamp experiment and simulation in vivado
03.Power chip output adjustable voltage test
04.Key Experiment in Vivado
05.PLL Experiment Under Vivado
06.Serial port Transmitting and Receiving experiment
07.Key Shake Removal Experiment
08.LM75 Temperature Test Routine
09.12C Interface EEPROM Experiment
10.FPGA on-chip ROM Read and Write Test Experiment
11.FPGA on-chip RAM Read and Write Test Experiment
12.FPGA on-chip FIFO Read and Write Test Experiment


13.SD Card Read and Write Test Experiment
14.DDR3 Read and Write Test Experiment
15.Gigabit Ethernet transmission experiment
16.HDMI Programming Output Experiment
17.HDMI Character Display Experiment
18.SD Card Read HDMI Picture Display Experiment
19.GTX1.25G Fiber Optic Communication IBERTTesting Experiment
20.GTX10G Fiber Optic Communication IBERTTesting Experiment
21.GTX 1.25G Fiber Optic Communication Testing Experiment
22.GTX 10G Fiber Optic Communication Testing Experiment

Functional Interface

·Development board




Product Parameters

Core Board Parameters

FPGA Chip

XCKU040-2FFVA1156I

Chip level

Industrial Grade

Logic Cells

530K

Look Up Tables (LUTs)

242,400

CLB Flip-Flops

484,800

Max. Distributed RAM (Kb)

7,050

Block RAM (18Kb each)

1,200

Total Block RAM

21.1 Mb

Global clock

10

I/O DLL

40

DSP Slices

1,920

PCIe Gen3 x8

3

 Transceiver

20X12.5Gb/s max

Interface and Function

DDR4

4x1GB DDR4,4GB,64bit,Data Rate 2400Mbps

QSPI Flash

1 slice 128Mbit QSPI FLASH, which can be used as the storage of user data in the field programmer

Optical fiber interface

4-way SFP+optical interface for 4-way high-speed optical communication, each optical data communication receiving and sending speed up to 12.5 Gb/s

FMC Extension interface

Three standard FMC extensions, two LPC extensions and one HPC extensions. External XILINX or ALINX various FMC sub-boards (HDMI input and output module, binocular camera module, high speed AD module, etc.)

HDMI output

1 HDMI output, support 1080P@60Hz Output, supporting 3D output

USB Uart

1 Uart to USB interface for communication with computer and user debugging

Ethernet interface

2-way Gigabit Ethernet interface for Ethernet data exchange with computers or other network devices

SMA interface

6-way SMA External Interface for External High Speed Input and Output Signals

SATA interface

2-way SATA interface for connecting peripherals such as hard disks

Crystal Oscillator

A 200Mhz differential crystal oscillator provides a stable clock source for the field bus system
A 125Mhz differential crystal oscillator to provide a reference clock for optical fiber
A 156.25Mhz differential crystal oscillator, which gives the transceiver a reference clock

JTAG

10-pin 2.54mm standard JTAG port for downloading and debugging of field programmers

Temperature Sensor

Sensor Chip LM75, Used to Detect the Ambient Temperature

EEPROM

EEPROM 24LC04 with 1 piece of IIC interface

SD Card Slot

1-way Micro SD card holder for data read, write and storage of SD card by GA

LED

1 power indicator, 1 DONE configuration indicator, 4 user indicators

KEYs

1 Reset KEY, 2 User KEYs

Power Supply Parameters

Voltage Input

+12 V DC

Current Input

Max. Current 3A

Package List

FPGA Board

1

DC Fan (Fixed on the Board)

1

Mini USB Cable

1

USB Downloader Cable

1 Set

12V Power Adapter

1

Transparent Protection Board

1

Structure Size

Size Dimension

165mm x 113.94mm

Number of Layers

14-Layer Carrier Board PCB Reserve independent power layer and GND layer




Rich extension interface

High-Speed Transmission

Intelligent Recognition, Image and Video Processing Security Monitoring, Machine Vision


Supports high-speed optical network communication, high-speed data storage, video image processing, pre-project validation, machine vision, and industrial control applications

Rich peripheral interfaces: 1 FMC HPC interface, 2 FMC LPC interfaces, 4 SFP+optical interfaces, 1 HDMI output, 2 Gigabit Ethernet interfaces, 2 SATA interfaces, 1 UART serial interface, 1 SD card, 1 10 pin JTAG port

SFP Optical Fiber Interface

SFP Transmission Communication

Receiving and Transmitting Speed up to 12.5Gb/s
