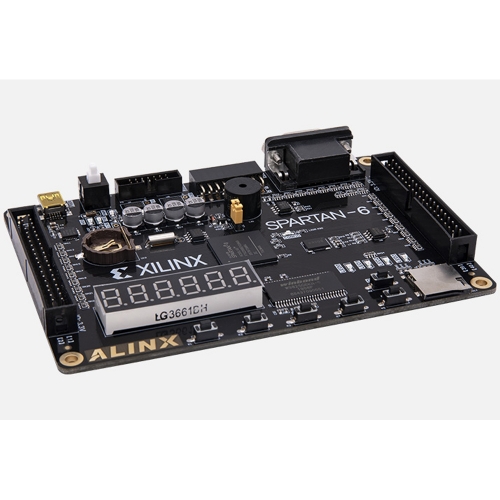

Spartan-6 Family, Beginner's Choice, with Supporting Sourcing Code, Demos and PCB
AX309 Supporting Verilog HDL Demos and Docuemnts,All Doucments Saved in Dropbox, after buy the board, email to get it.
Part 1: Basic Tutorial
01.ISE14.7 Software Installation
02.Downloader Driver Installation
03.Modelsim Installation and Simulation
04. Write Testbench and Simulation
05.LED running light experiment under ISE14.7
Part 2: Experimental Tutorial
01.LED water lamp experiment and simulation in ISE14.7
02. Key detection experiment in ISE14.7
03.PLL Experiment in ISE14.7
04.Serial port Transmitting and Receiving experiment
05.Digital Tube Scanning Experiment
06.Key debounce experiment
07.Attach _ Buzzer to Play Music Experiment.
07.PWM Buzzer Experiment
07.ds1302 Digital Tube Display RTC Time Experiment
08.spi_flash Experiment
09.ds1302 Digital Tube Display RTC Time Experiment
10.I2C Interface EEPROM Experiment
11.FPGA on-chip ROM read and write Experiment
12.FPGA on-chip RAM read and write Experiment13.FPGA on-chip FIFO read and write Experiment
14.SD Card Read and Write Experiment
15.VGA Test Experiment 16.sdram Read Write Testing Experiment
17.Recording and Playback Experiment of AN831 Module 18.SD Card Music Player Experiment
19.Character Display Experiment
20.SD Card Read BMP Picture Display Experiment
21.OV5640 Camera Display Experiment
22.Color Video Image to Black and White Experiment
23.SOBEL Edge Detection Experiment
24.AD9226 Waveform Dispaly Experiment
25.AD7606 Waveform Display Experiment
26.ADDA Testing Experiment
27.Mini Games Greedy Snake Experiment
AN108 AD/DA Collection Package
AN9767 DA Collection Package
AN706 AD Collection Package
AN9238 AD Collection Package
AN831 Audio Package
Video Processing Packge
Luxury Package
FPGA Board
●
●
●
●
●
●
●
USB Downloader
●
●
●
●
●
●
●
AN108
●
●
AN9767
●
●
AN706
●
●
AN9238
●
●
AN831
●
●
AN5640
●
●
AN430 4.3-Inch LCD
●
●
Supporting Modules in the Package, Click to Learn More
FPGA Chip
XC6SLX9-2FTG256C
Logic Cells
9152
Block RAM
576Kbit
Multiplier
16
Configurable Logic Block
90Kb
Clock Unit
2
Kernel Voltage
1.2V
Working Temperature
0-70℃
JTAG
10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download
USB Interface
USB Power Supply Interface, and Can Realize USB to Serial Port Function
SDRAM
256Mbit SDRAM, Used as FPGA Data Cache
SPI FLASH
16Mbit, Used as Storage for FPGA Configuration Files and User Data
Camera Interface
Connected with 5 million OV5640 Monocular Camera Module AN5640
VGA
VGA Interface, 16bit, Display 65536 Colors
Real Time Clock
RTC with a Battery Holder, The Battery Model is CR1220
EEPROM
EEPROM 24LC04 with IIC Interface On-Board
40-Pin Expansion Ports
Two 40-Pin Expansion Ports (0.1 inch Pitch), Can be Connect with Various ALINX Modules (Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules).
Crystal Oscillator
50MHz Provide Stable Clock Source for the System
LEDs
4 User LEDs
KEYs
5 Keys, 1 Reset KEY, 4 User KEYs
SD Card Slot
1 Micro SD Card Slot, Support SPI Mode
Digital Tube
6-bit Digital Tube to Realize 6-Digit Dynamic Display
Power supply
USB Interface Power Supply
FPGA Board
1
Transparent Protection Board
1
Mini USB Cable
1
Size Dimension
5.12 inch x 3.54 inch
Number of Layers
FPGA Development Board 6-Lay PCB, Reserve a Separated GND Layer
Will Provide Complete Schematic, PCB (Altium Format), Source Code, Schematic Library, Driver, PCB Library Files and Other Information. What Can You Learn Through These?
·4-Layer PCB layered Design ·BGA Package Fan-Out Method ·Isometric Design
·Power Layer and Ground Layer ·Device Placement and Routing ·Pin Assignment of FPGA Chip
Monocular Camera Module AN5640 VGA On-Board Demo
The Monocular Camera Module AN5640 for Video Capture, and Displays it on the Monitor through the VGA Interface
Camera Module AN5642, 4.3-Inch LCD AN430 Module On-Board Demo
Onboard USB interface, Gigabit Ethernet interface, VGA interface, camera interface, etc., to meet the needs of high-speed communication, video and audio acquisition and processing
AN9767/AN706 Module On-Board Demo
*The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module, Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the VGA Interface of the FPGA Development Board
