Xilinx Zynq UltraScale + MPSoC FPGA Core board（Stamp hole）

2 x ARM Cortex-A53 , 2 × ARM Cortex™-R5

·4GB DDR4

• PS 4GB DDR4

·FLASH storage

• 8GB EMMC FLASH、32MB QSPI FLASH

key Features

Product Performance

Main Parameters

Core board

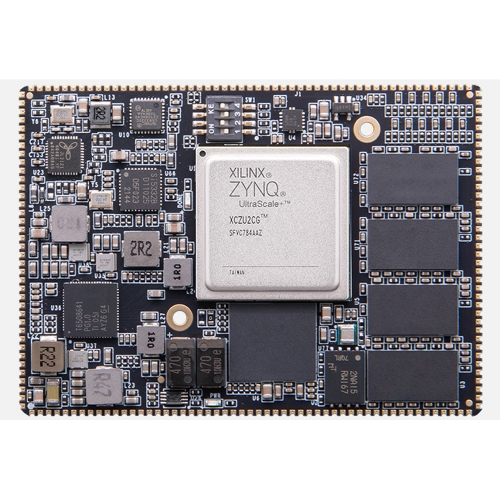

M2CG

FPGA Chip

  XCZU2CG-1SFVC784E

Speed Grades

-1

Working Temperature

Industrial Grade ，0°C~70°C

CPU kernel

2 × ARM CORTEX-A53 + 2 × ARM CORTEX-R5

CPU frequency

1.2GHz | 500MHz

GPU Graphic processing sheet

PCIe Gen2 x1 , 1x USB3.0 , Sata 3.1 , DisplayPort 1x Tri-mode Gigabit Ethernet

Common connection interface

1x SD2.0, 1x JTAG

PS DDR4

4GB, 64bit

QSPI | EMMC Flash

32MB | 8GB

Logic Cells

103K

Flip-Flops

94K

LUTs

47K

Max. Distributed RAM

1.2Mb

Total Block RAM

5.3Mb

Clock Management Tiles (CMTs)

3

DSP Slices

240

PS MI/Os

15

PL I/Os

102

PL HP I/Os

96个

PL HD I/Os

6

Connection mode

Stamp hole



Functions and interfaces

RAM

4GB DDR4, 64bit

QSPI Flash

One piece of 256Mbit QSPI flash, which can be used as FPGA user data storage

EMMC Flash

8GB, used in zynq system, can be used as a large capacity storage device of the system

Crystal oscillator

One passive crystal oscillator is provided to PS system



Power Supply Parameters

Voltage Input

+5 V DC



Package List

FPGA SoM Board

1







Structure Size

Size Dimension

70mm x 50mm

Number of Layers

16-Layer PCB







Memory 64bit DDR4 super combination

EG SoM-Industrial Grade Chip Dual ARM Application Processor

2x  ARM Cortex-A53，1.2GHz；2x Cortex™-R5， 500MHz；PS 4GB DDR4



Get Started Quickly ，Shorten Learning and Development Time

Provide Documents to Study

Provide schematic diagram, PCB structure diagram (PDF), packaging, reference design, etc. to facilitate secondary development
