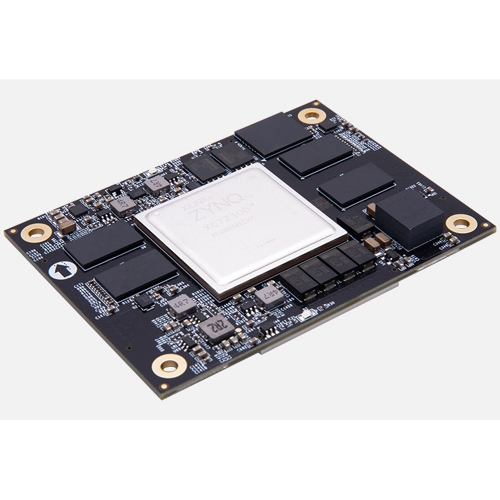

ALINX Xilinx ZYNQ7000 ARM SOM FPGA Core Board XC7Z100
판매가
1,265,000 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
0원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000618726
제조사
ALINX
AC7Z100C
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보

Xilinx Zynq-7000 SoM FPGA Core Board

ARM+FPGA SOC technology

2x ARM Cortex-A9, Industrial grade


Functional interface




Corresponding Development Board

·AX7Z100




*Learn about the corresponding development board, Click to see details>>



Product parameters



Core Board Parameters

Core board

AC7Z100B

FPGA Chip

XC7Z100-2FFG900I

Chip CPU

2x ARM Cortex-A9, Dominant frequency 800MHz

PL RAM

1GB DDR3, Data rate 1600Mbps

PS RAM

1GB DDR3, Data rate 1066Mbps

Speed Grades

-2

Chip Level

Industrial grade

Working Temperature

-40°C~85°C

Logic Cells

444K

Lookup table

277400

trigger

554800

Multiplier

2020

transceiver

16 -Channels, supporting PCIe Gen2 x8

Block RAM

25.6Mbit

MIO

37

PL IO

162

Adjustable voltage IO

96

LVDS differential pair

48



Functions and interfaces

EMMC FLASH

8GB EMMC flash chip is used to start the storage configuration and system files

QSPI Flash

Two 256Mbit QSPI flash for FPGA user data storage

AD converter

ADC is integrated inside the chip, 2 AD converters, which can measure on-chip voltage and temperature sensing, 17 external differential input channels, and the sampling rate is 1Mbps

Crystal oscillator

One crystal oscillator 33.333mhz provides clock input for PS terminal
A differential crystal oscillator 200MHz is used as the clock source of PL system and the reference clock of DDR3 controller
A differential crystal oscillator 125MHz provides a reference clock for GTX transceiver

Expansion port

Four 120 pin Panasonic industrial grade connectors



Power parameters

input voltage

5V power supply







Packing list

FPGA core board

1





structure size

Size

80mm x 60mm x 10.8mm

Connector closing height

3.0mm

Number of laminations

12 layer PCB board design






With a Super Combination of Memory DDR3

Linux Operating System Dual-Core ARM Cortex-A9

2x ARM Cortex-A9, 800MHz; PS 1GB DDR3, Data rate 1066Mbps; PL, 1GB DDR3; Data rate 1600Mbps






Get Started Quickly, Shorten Learning and Development Time

Provide Documents to Study

Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
