Xilinx Zynq-7000 FPGA Core Board
ARM+FPGA SOC technology
dual core Cortex-A9, industrial grade
dual core Cortex-A9, industrial grade
Functional interface
Corresponding Development Board
·AX7Z035
*Learn about the corresponding development board, Click to see details>>
Product parameters
Core Board Parameters
Core Board
AC7Z035B
FPGA Chip
XC7Z035-2FFG676I
Chip CPU
2 x ARM Cortex-A9, Dominant frequency 800MHz
PL side memory
1GB DDR3, Data rate 1600Mbps
PS side memory
1GB DDR3, Data rate 1066Mbps
Speed Grades
-2
Chip Level
Industrial Grade
Working Temperature
-40°C~85°C
Number of logical units
275k
Lookup table
171900
trigger
343800
Multiplier
900
transceiver
8 -Channels，PCIE Gen2x8
Block RAM
17.6Mbit
MIO
37
PL IO
144
Adjustable voltage IO
96
LVDS differential pair
48 pairs
Core Board
AC7Z035B
FPGA Chip
XC7Z035-2FFG676I
Chip CPU
2 x ARM Cortex-A9, Dominant frequency 800MHz
PL side memory
1GB DDR3, Data rate 1600Mbps
PS side memory
1GB DDR3, Data rate 1066Mbps
Speed Grades
-2
Chip Level
Industrial Grade
Working Temperature
-40°C~85°C
Number of logical units
275k
Lookup table
171900
trigger
343800
Multiplier
900
transceiver
8 -Channels，PCIE Gen2x8
Block RAM
17.6Mbit
MIO
37
PL IO
144
Adjustable voltage IO
96
LVDS differential pair
48 pairs
Functions and interfaces
EMMC FLASH
8GB EMMC flash chip is used to start the storage configuration and system files
QSPI Flash
Two 256Mbit QSPI flash for FPGA user data storage
AD converter
ADC is integrated inside the chip, 2 AD converters, which can measure on-chip voltage and temperature sensing, 17 external differential input channels, and the sampling rate is 1Mbps
Crystal oscillator
One crystal oscillator 33.333mhz provides clock input for PS terminal
A differential crystal oscillator 200MHz is used as the clock source of PL system and the reference clock of DDR3 controller
A differential crystal oscillator 125MHz provides a reference clock for GTX transceiver
Expansion port
Four 120 pin Panasonic industrial grade connectors
EMMC FLASH
8GB EMMC flash chip is used to start the storage configuration and system files
QSPI Flash
Two 256Mbit QSPI flash for FPGA user data storage
AD converter
ADC is integrated inside the chip, 2 AD converters, which can measure on-chip voltage and temperature sensing, 17 external differential input channels, and the sampling rate is 1Mbps
Crystal oscillator
One crystal oscillator 33.333mhz provides clock input for PS terminal
A differential crystal oscillator 200MHz is used as the clock source of PL system and the reference clock of DDR3 controller
A differential crystal oscillator 125MHz provides a reference clock for GTX transceiver
Expansion port
Four 120 pin Panasonic industrial grade connectors
Power parameters
Voltage Input
5V power supply
Voltage Input
5V power supply
Packing list
FPGA SoM Board
1
FPGA SoM Board
1
structure size
Size Dimension
80mm x 60mm x 10.8mm
Connector Height
3.0mm
Number of Layers
12-Layer PCB
Size Dimension
80mm x 60mm x 10.8mm
Connector Height
3.0mm
Number of Layers
12-Layer PCB
Super Combination with DDR3 Memory
Industrial Grade Chip ARM 2 x CortexA9
2x ARM Cortex-A9，800MHz；PS,1GB DDR3，Data rate 1066Mbps；PL，1GB DDR3，Data rate 1600Mbps
2x ARM Cortex-A9，800MHz；PS,1GB DDR3，Data rate 1066Mbps；PL，1GB DDR3，Data rate 1600Mbps
Get started quickly ，Shorten Development Learning Time
Documents to Accelerate Development
Provide Schmatic, PCB, Structure Size, Package, Reference Design Convenient for secondary development
Provide Schmatic, PCB, Structure Size, Package, Reference Design Convenient for secondary development
배송안내
● 결제일로부터 1~3주 안에 배송됩니다.
● 제조사 재고가 부족하여 3주 안에 배송이 어려울 경우 메일로 안내해 드리니 참고하시기 바랍니다.
교환 및 반품안내
● 본 상품은 해외 재고 상품으로 기본적으로 교환 및 반품 처리가 어렵습니다.
● 상품에 따라 교환 및 반품 처리가 가능한 경우 비용이 수반되며 이니프로 고객센터에 연락하여 처리하시기 바랍니다.
환불안내
● 본 상품은 해외 재고 상품으로 기본적으로 환불 처리가 어렵습니다.
● 상품에 따라 환불이 가능한 경우 비용이 수반되며 이니프로 고객센터에 연락하여 처리하시기 바랍니다.
AS안내
● 제조사별로 A/S정책이 상이하니 하단 고객센터로 문의 주시기 바랍니다.

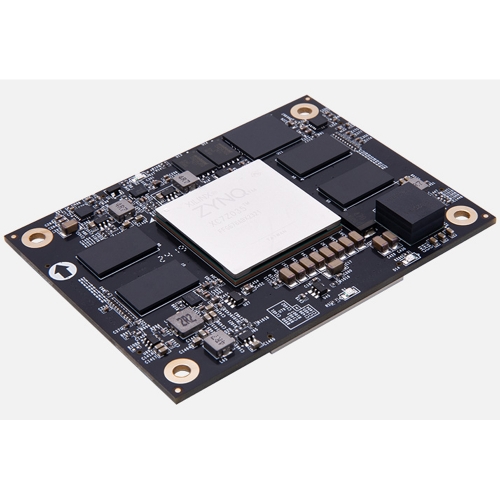

이미지 확대보기AC7Z035B
