Xilinx Zynq 7000 SoM FPGA Core Board

ARM+FPGA SOC Technolgoy

Dual-Core ARM Cortex-A9，Industrial Grade

key Features

Corresponding Development Board

·AX7015



*Learn about the corresponding development board, Click to see details>>



PRODUCT PARAMETERS

Core Board Parameters

Core Board Chip

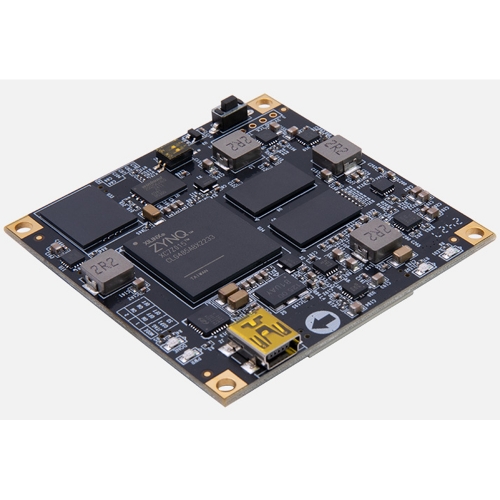

AC7015B

FPGA Chip

XC7Z015-2CLG485I

Kernel

Dual-Core ARM Cortex-A9，Main Frequency 767MHz

RAM

DDR3，1GB，Data Rate 1066Mbps

Chip level

 Industrial grade, working temperature -40 ° c~85 ° C

Logic Cells

74K

Look Up Tables (LUTs)

46200

CLB Flip-Flops

92400

Multiplier

160(18x25MACCs)

Block RAM

3.3Mb

EMMC FLASH

8GB

QSPI FLASH

256MBit

PS MIOs

39

PL IOs

148

LVDS

24

Voltage Adjustable IO

50

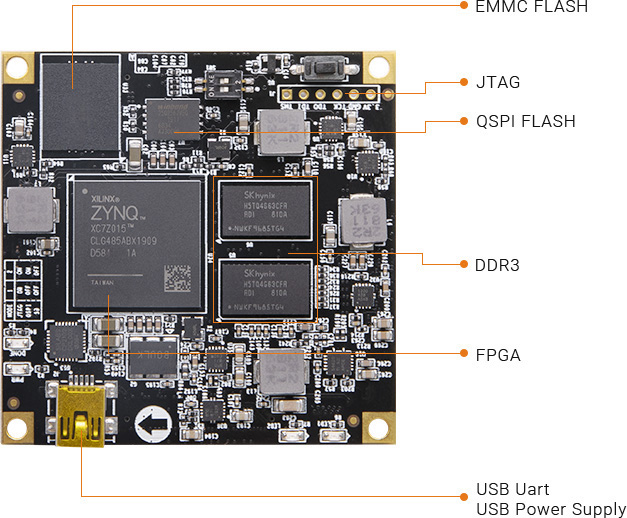

Interface and Function

DDR3

Two 512MB DDR3, 32bit Bus, Data Rate 1066Mbps

QSPI Flash

256Mbit, Used as FPGA User Data Storage

EMMC Flash

8GB, Used as a Large-Capacity Storage Device in the ZYNQ System

JTAG

Reserve a 6-pin JTAG interface for Download and Debugging

AD Converter

Integrated ADC and 2 AD Converters to Measure on-chip Voltage and Sense Temperature, Sampling Rate 1MBPS

Crystal Oscillator

33.333 Mhz Provide Stable Clock Source for the PS System
125 Mhz Provide GTP Reference Clock
150 Mhz Provide Clock Source for the PL System

USB Uart

Used for Serial Communication with PC , and Provide 5V Power

KEY

1 Reset Key

Expansion Ports

4 x 80-Pin Panasonic Industrial Grade Connectors ( AXK580137YG) The matching connector in the carrier board is AXK680337YG

LEDs

2 LED lights, 1 Controlled by PS, 1 Controlled by PL

DIP Switch

Used to Configure the Startup Mode of the ZYNQ System: JTAG Debug Mode, QSPI FLASH and SD Card Startup Mode



Power Supply Parameters

Voltage Input

+5 V DC







Package List

FPGA Core Board

1

Mini USB Cable

1





Structure Size

Size Dimension

3.15 inch x 2.36 inch

Connector height

0.08 inch

Number of Layers

10-Layer Core Board PCB











Super Combination with DDR3 Memory

Industrial Grade Chip ARM Dual-Core CortexA9

2x  ARM Cortex-A9，767MHz；1GB RAM



Get Started Quickly ，Shorten Learning and Development Time

Provide Documents to Study

Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
