짧은설명

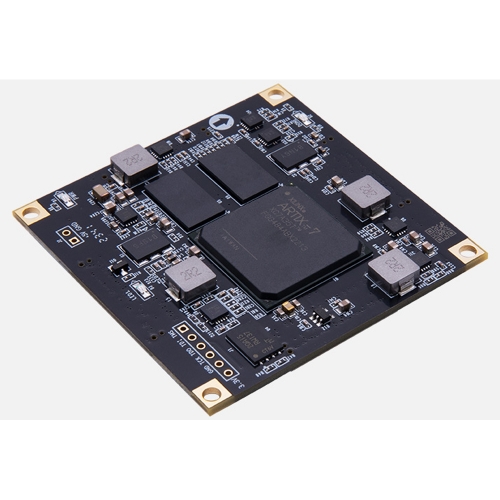

XILINX Artix7 SOM FPGA Core Board XC7A35T
판매가
266,200 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
0원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000618739
제조사
ALINX
AC7A035
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보

Xilinx Artix-7 SoM FPGA Core Board

High-speed Transceiver,  High Bandwidth Capacity

Suitable for high-speed data communication, video image processing, high-speed data acquisition, etc


Key Feature

AC7A035 EN.jpg
AC7A035 200 ENjpg.jpg

Corresponding Development Board

·AX7A035






*Learn about the corresponding development board, Click to see details>>



Product Parameters



Core Board Parameters

Core Board Chip

AC7A035

FPGA Chip

XC7A35T-2FGG484I

Logic Cells

33280

Look Up Tables (LUTs)

5200

CLB Flip-Flops

41600

Block RAM

1800KB

DSP

90

Expansion IOS

146 IOs(3.3V Level)

RAM

Two 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI FLASh

128MBit QSPI FLASH Used as System File and FPGA User Data Storage

Speed Grades

-2

FPGA Chip Level

Industrial Grade

Working Temperature

-40°c~85°c

XADC

12bit, 1Mbps AD

Transceiver

4 -Channels, each up to 6.6Gb/s

PCIe Gen2

Support PCI Express 2.0x4

Crystal Oscillator

200Mhz Provide System Main Clock and Generate DDR Control Clock,125Mhz Provide Stable Clock Source Input for the GTX transceiver

JTAG

Reserve a 6-pin JTAG Interface for Download and Debugging

LED

1 Power Indicator (PWR) 1 Configure LED Light (DONE) 1 User LED Light(LED1)

Power Connector

2Pin Power Interface

Expansion Ports

4 x 80-Pin Panasonic Industrial Grade Connectors ( AXK580137YG) The matching connector in the carrier board is AXK680337YG



Power Supply Parameters

Voltage Input

+ 5V

Current Input

Max. Current 2A

Powered By

Carrier Board







Package List

FPGA Core Board

1 Piece









Structure Size

Size Dimension

2.36 inch x 2.36 inch

Connector Height

0.12 inch

Number of Layers

10-Layer Core Board PCB





AC7A035 200结构图1.png
AC7A035 200结构图2.png

                                                                                                                                                                                                                            AC7A200.jpg



Super Combination with DDR3 Memory

Industrial Grade Chip, 4 x GTP High-Speed Transceiver

6.6Gb/s, 4 x GTP,  1GB DDR3  , Support PCI-E 2.0




Low Power Consumption, High Performance

Artix-7 Cost-Effective

High-Speed Data Transmission, High Bandwidth and Capacity Apply to Data Acquisition and Communication, Video Image Processing
