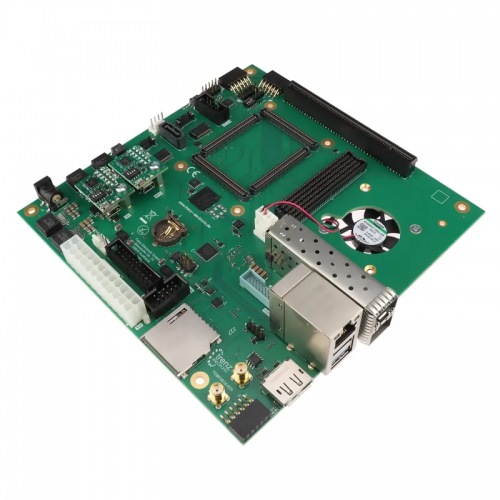

The Trenz Electronic TEBF0818 carrier board is a baseboard for the AMD/Xilinx Zynq Ultrascale+ MPSoC modules TE0813, TE0817 and TE0818, which exposes the module's B2B connector pins to accessible connectors and provides a whole range of on-board components to test and evaluate the Zynq UltraScale+™ SoMs and for developing purposes. The carrier board has a Mini-ITX form factor making it capable to be fitted into a PC enclosure. On the PC enclosure's rear and front panel, MGT interfaces and connectors are accessible, for the front panel elements there are also Intel-PC compatible headers available.

Key Features

• Mini-ITX form factor, PC enclosure compatible
• ATX-24 power supply connector
• Optional 12V standard power plug
• Headers
  • Intel 10-pin HDA audio
  • Intel 9-pin power/reset button, Power-/HD-LED
  • PC-BEEPER
• On-board power-/reset-switches
• 2 x configuration 4-bit DIP switches
• 2 x optional 4-wire PWM fan connectors
• PCIe slot - one PCIe lane (16 lane connector)
• CAN FD transceiver (10 Pin IDC connector and 6-pin header)
• 4 x On-board configuration EEPROMs (1 x Microchip 24LC128-I/ST, 3 x Microchip 24AA025E48T-I/OT)
• Dual SFP+ connector (2x1 Cage)
• 1 x DisplayPort (single lane)
• 1 x SATA connector
• 2 x USB 3.0 A connector (Superspeed Host Port (Highspeed at USB 2.0))
• 1 x USB 3.0 on-board connector with two ports
• FMC HPC slot (FMC_VADJ max. VCCIO)
• FMC fan
• Gigabit Ethernet RGMII PHY with RJ45 MagJack
• All carrier board peripherals' I²C interfaces muxed to MPSoC's I²C interface
• Quad programmable PLL clock generator
• 2 x SMA coaxial connectors for clock signals
• MicroSD/MMC card socket (bootable)
• 64 GBit (8 GByte) on-board eMMC Flash
• 2 x System controller CPLDs Lattice MachXO2 1200 HC
• 1 x Samtec FireFly (4 GT lanes bidirectional)
• 1 x Samtec FireFly connector for reverse loopback
• 20-pin ARM JTAG connector (PS JTAG0)
• 3 x Pmod connector (GPIO's and I²C interface to SC CPLDs and MPSoC module)
• On-board DC-DC PowerSoCs
• Size: 170 mm × 170 mm. Please download the assembly diagram for exact details.
• Mating height with standard connectors: 5 mm

Scope of Delivery

• 1 x TEBF0818-02 UltraITX+ Baseboard for Trenz Electronic's TE081X series MPSoCs

Including pre-assembled accessories

• 2 x XMOD FTDI JTAG adapter for programming MPSoC and SC CPLDs
  TE0790-03 = compatible with Xilinx tools
  TE0790-03L = not compatible with Xilinx tools

Required Hardware

• Switching Power Supply 12V

Additional Information

• Manufacturer's article number: TEBF0818-02
• Trenz Electronic TEBF0818 Wiki
• Support Forum
