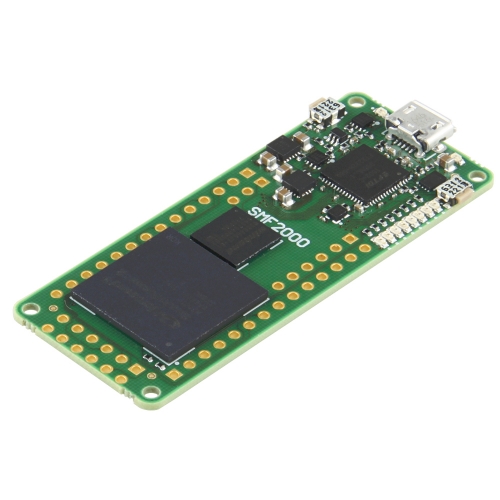

The Trenz Electronic TEM0001 is a low cost small-sized FPGA module integrating a Microchip SmartFusion® 2 FPGA SoC and 8 MByte Flash memory for configuration and operation. SmartFusion® 2 combines a 166 MHz Cortex-M3 MCU including 256 KByte Flash and 80 KByte SRAM, as well as 12 kLUT FPGA Core Logic. The TEM0001 is ideal for evaluation and rapid prototying.

Key Features

• Microchip SmartFusion® 2 SoC M2S010-VFG400 FPGA
• 8 MByte SDRAM
• 8 MByte QSPI Flash memory
• 25 MHz system clock and 32.768 KHz auxiliary clock
• JTAG and UART over Micro USB2 connector
• 1 x 3-pin header for Live Probes
• 1 x Pmod header providing 8 I/O
• 2 x 14-pin headers (2.54 mm pitch) providing 23 I/O
• 9 user LEDs
• 1 user push button
• 3.3 V single power supply with on-board voltage regulators
• Size 61.5 x 25 mm

Scope of Delivery

• 1 x TEM0001-01A-ABC-2 Trenz Electronic SMF2000 FPGA module with Microchip SmartFusion® 2 FPGA
• User Manual

Additional Information

• Manufacturer's article number: TEM0001-01A-ABC-2
