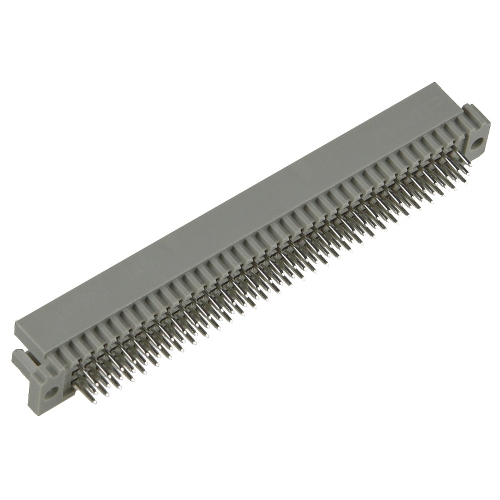

Product information "VG96 Connector vertical, TE Connectivity DIN41612 (male)"

TE Connectivity DIN 41612 connectors, Eurocard series, 2.54mm, 96-pin, 3-row, a / b / c, straight, C2 type R

Prices for other quantities are available on request.

Key Features

• Number of contacts: 96
• Gender: Male
• Number of rows: 3
• Housing orientation: Straight
• Connection type: Soldering
• Row fitting: a/b/c
• Type: R
• Pitch: 2.54 mm
• Contact coating: gold over nickel
• Class: C2
• Contact material: brass
• Contact resistance max.: 15mΩ
• Operating voltage: 250V AC
• Series: Eurocard
• Operating temperature min.: -55 ° C
• Operating temperature max.: + 125 ° C
• Housing material: PET

Scope of Delivery

1 x VG96 Steckerleiste vertikal, TE Connectivity DIN41612 (male)

References

• Manufacturer: TE Connectivity
• Manufacturer's description: 096 EURO TYPE R PIN ST ASSY
• Manufacturer's article number: 650470-5
