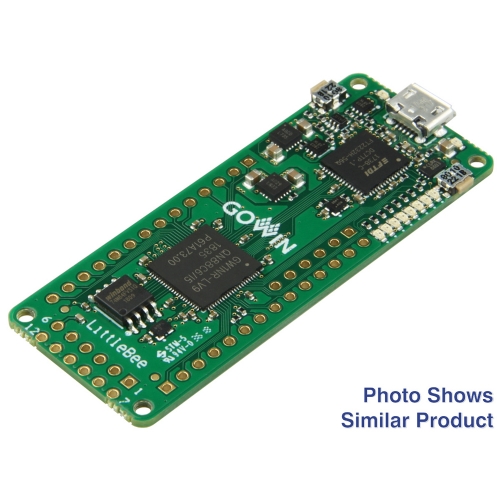

The TEC0117-01-A is a low cost FPGA module integrating a GOWIN LittleBee 1NR9 FPGA with 8 MByte internal SDRAM and 8 MByte SPI Flash for user applications. It's compatible to the Arduino MKR standard.

Please note: this module is identical to variant TEC0117-01, except that an other flash memory was used.

Key Features

• GOWIN LittleBee 1NR9 FPGA
  • 8 MByte internal SDRAM
• 8 MByte SPI Flash for user applications
• JTAG and UART over Micro USB2 connector
• 1 x 6-pin header for JTAG access to FPGA SoC
• 1 x Pmod header providing 8 I/O
• 2 x 14-pin headers (2,54 mm pitch) providing 22 I/O
• 8 x user LEDs
• 1 x user push button
• 100 MHz user clock (MEMS oscillator)
• 5V single power supply with on-board voltage regulators
• Size: 61.5 x 25 mm

Scope of Delivery

• 1 x TEC0117-01-A Trenz Electronic FPGA module with GOWIN LittleBee 1NR9

Additional Information

• Manufacturer's order number: TEC0117-01-A
