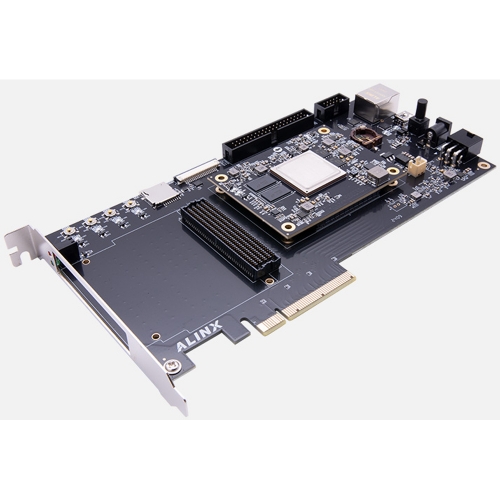

AXKU3 FPGA Dev Board & Kit with AMD Kintex™ US+ XCKU3P
판매가
1,353,000 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
0원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000619344
제조사
ALINX
AXKU3
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보

Overview

ALINX AMD Xilinx Kintex UltraScale+ XCKU3P development board AXKU3 KU3P

Product Description

The AXKU5/AXKU3 FPGA development board equipped with the AMD/Xilinx Kintex Ultrascale+™-series device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, FMC HPC, Gigabit Ethernet.


Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe).

Applications

  • ● PON Access

  • ● Mobile Backhaul

  • ● Data Center Network Acceleration



Key Features

System-on-Module

  • ● AMD/Xilinx Kintex Ultrascale+™:
    ◆ 16nm FinFET FPGA fabric
    ◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs
    ◆ More than 2x faster system-level performance per watt compared to Kintex 7 FPGAs
    ● Pluggable module with 2 x Samtec board-to-board connectors
    ● 2 GByte (32-bit) DDR4 SDRAM
    ● 2 x 32 MB QSPI Flash

Base Board

  • ● FMC HPC (34 pairs lvds ios + 8 pairs GTH)
    ● 1 x PCIe® Gen3 ×8
    ● 1 x Gigabit Ethernet
    ● 1 x UART (USB to UART)
    ● 1 x 4 lane MIPI
    ● 1 x MicroSD
    ● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
    ● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED)  KEY(4 x KEY)
    ● 12V single supply
    ● Dimensions: 215 x 111 mm form factor

Product Information

  • Specifications
  • What's Inside

Board Features

Featuring the AMD/Xilinx Kintex Ultrascale+™ XCKU3P-2FFVB676I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale+™ based application.

ALINX AMD Xilinx Kintex UltraScale+ XCKU3P development board AXKU3 KU3P

* The AXKU3 development board consists of a ACKU3 SoM and base board. If you want to purchase ACKU3 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR4 SDRAMQSPI FlashGTYUSD Price
AXKU3XCKU3P-2FFVB676I2 GB2 x 32 MB16792
AXKU5XCKU5P-2FFVB676I2 GB2 x 32 MB16924


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations
