▶ Product Description

A Digital Multimeter is an essential tool for anyone working on electronics from the engineer to the student. The Mastech® MS8217 provides all of the functionality needed in a DMM, DC and AC Voltage and Current measurement, resistance measurement, capacitance measurement and temperature measurement. Users can choose between manual or automatic ranging, and have the piece of mind of convienient replaceable fuses, and a battery life of up to 500 hours. Built ruggedly for everyday use, the MS8217 digital multimeter is perfect for reliable & stable electrical testing.

▶ Features

Features:

• 4000 counts
• Diode test/Buzzer
• Temperature Test
• Frequency/Duty Cycle
• Relative Measurement
• Data Hold
• Auto Power Off
• Auto/Manual Ranging
• Holster (secondary injection)
• Mechanical/Electronic Protection System
• In conformity with IEC 1010 CAT II 1000V
• Convenient Fuse/Battery Change Design
• Battery Life up to 500 Hours

• Product Compliance:
• HTC: 9030310000
• ECCN: 3A992.a

Specifications:

• DC Voltage range: 0.1mV-1000V

• DC Voltage accuracy: ± (0.5%+3digits)
• DC Current range: 0.1 μ A-10A
• DC Current accuracy: ± (1.5%+3digits)
• AC Voltage range: 0.1mV-1000V
• AC Voltage accuracy: ± (1.0%+3digits)
• AC Voltage Freq. response: 40Hz-500Hz
• AC Current range: 0.1 μ A-10A
• AC Current accuracy: ± (1.5%+3digits)
• AC Current Freq. response: 40Hz-200Hz
• Resistance range: 0.1Ω-40MΩ
• Resistance accuracy: ± (0.5%+2digits)
• Capacitance range: 0.01nF-100μF
• Capacitance accuracy: ± (3.0%+5digits)
• FREQUENCY/DUTY CYCLE Range: 10Hz-100kHz
• FREQUENCY/DUTY CYCLE Accuracy: ± (0.1%+3digits)
• TEMPERATURE Range: -55°C-1000°C
• TEMPERATURE Accuracy: ± (2.0%+1°C)

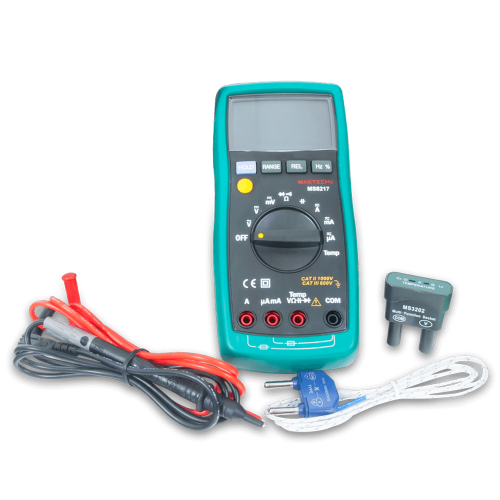

▶ What's Included

• Mastech Autorange Ditigal Multimeter (MS8217)
• Mastech protective cardboard box
• Two detachable test leads with shrouded plugs and capped tips
• Multi-function socket
• K-Type temperature probe
• User manual
