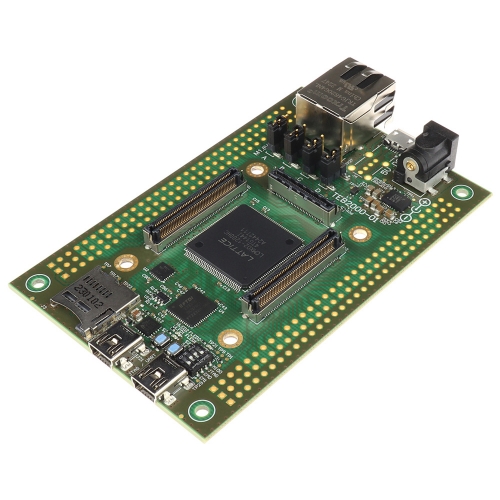

The Trenz Electronic TEB2000 carrier board provides functionality for development, evaluation and testing purposes of Trenz 4 x 5 cm SoMs (System on Module).

The carrier board is equipped with a broad range of various components and connectors for different configuration setups and needs. On-module functional components and multipurpose I/Os of the SoM's logic are connected via board-to-board connectors to the carrier board components and connectors for easy user access.

See page "4 x 5 cm carriers" to get information about the SoMs supported by the TE0703 carrier board.

Key Features

• On Board
• System Controller (SC) (LCMXO2-1200HC-4TG144I1))
• Mini USB for JTAG and UART connection (FTDI FT2232H)
• Mini USB second UART connection (FTDI FT230XQ)
• SDIO port expander
• 4 x User LEDs

  • D1, D2 connected to SC (firmware-dependent functionality)
  • D3, D4 connected to SC and 4 x 5 SoM
• 2 x User push button

  • Connected to SC (firmware-dependent functionality)
  • Currently used for Hard- and Soft-Reset
• 4 User DIP switches

  • Enable/disable update of the SC
  • MIO0 (accessible signal by SC and SoM)
  • 2 "mode" bits


• Interface
• Trenz 4 x 5 SoM socket

  • 3 x Samtec LSHM series high-speed connectors
• Micro SD card connector
• 2 x VG96 backplane connectors assembly option (mounting holes and solder pads)
• Mini or Normal USB for SoM USB-OTG connection (depends on assembly variant)
• RJ45 GbE connector


• Power
  • Overvoltage-, undervoltage- and reversed- supply-voltage-protection
  • Barrel jack (2.1 mm) for 5V power supply input


• Size
  • 10 x 6.45 cm

Scope of Delivery

• 1 x TEB2000-01-T001 Carrier board for TEM0007 Microchip PolarFire SoC module



Note: VG96 Connector vertical (article 21545), Harting DIN41612 (female) is not included in the scope of delivery, but can be purchased as an accessory in the shop.

Info: M2.5x8 mm screws and M2.5 galvanized nuts are required for mounting the VG96 connector.

Additional Information

• Manufacturer's article number: TEB2000-01-T001
