overview

The LNX-003M is a Modbus-only converter 　that connects RS-485 to LAN . It can perform mutual protocol conversion from Modbus TCP to Modbus RTU/ASCII and connect. It can operate as a master or slave and connect Modbus devices over Ethernet. Modbus can be used for both serial and Ethernet devices, but since serial communication and Ethernet communication differ not only in terms of physical connection but also in protocol, protocol conversion is also required to interconnect them. The LNX-003M allows you to integrate Modbus TCP and Modbus RTU/ASCII networks.

　You can also use our original virtual COM port generation tool LNX-VCP to assign the IP address assigned to this product to a virtual COM port. Because it can be treated as a normal COM port, you can design PC-side applications even if you have no knowledge of networks.　

　Since it comes standard with PoE functionality, it can be powered from a LAN cable (requires a PoE-compatible HUB, etc.). It
can also be powered by the included AC adapter. The LNX-003Me is a non-PoE compatible product and can be powered by an AC adapter.

　Network settings and other settings can be configured from a microSD card, and when replacing equipment, you can easily restore them by simply inserting the microSD card. By using a microSD card, you can configure the product without connecting the PC to the same network as the product.
　Rev2 and later are CE compliant (except when using PoE).

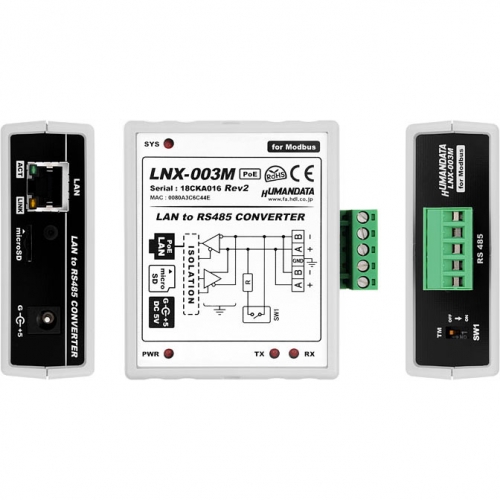

LNX-003M *The second and subsequent images are CG.


LNX-003Me *The second and subsequent images are CG.

* Installation reference diagram (mounting fixture sold separately)

Features

• Media converter function to convert RS-485 to LAN
• Mutual protocol conversion between Modbus TCP and Modbus RTU/ASCII
• IP addresses can be assigned to virtual COM ports
• Automatically detects 10Base-T/100Base-TX
• Easy device setup with setting memory card (microSD)
  • When replacing equipment, you can easily migrate by replacing the setting memory card.
  • Setting data can be sent to remote locations via email attachments, etc.
  • There are no restrictions on the IP address that can be set (can be set outside the segment)
  • Easily back up and record settings by saving the settings file
• Device settings can also be configured via network (LAN) using the original setting tool.
• PoE compatible, so power can be supplied via LAN cable (LNX-003Me does not support PoE)
• Virtual COM port support
• Industrial Design
• Small lot OEM possible
  from 50 units, we will provide you with your original nameplate.
• Free of 10 substances restricted by the RoHS Directive
• CE compliant from Rev2 (except when using PoE)

Connection Topology

[LNX-003M in slave mode]


　It can communicate with Modbus RTU/ASCII slave devices in remote locations via Ethernet.
If the master is a PC, the IP address assigned to the LNX-003M can be assigned to a virtual COM port for use, so no network knowledge is required for programming.

[LNX-003M in master mode]


　A Modbus RTU/ASCII master device can communicate with a Modbus TCP slave device in a remote location via Ethernet.

[Tunneling connection between LNX-003M]

specification

item	Contents	remarks
Model number	LNX-003M/LNX-003Me
power supply	DC5V Supplied from the included AC adapter or LAN connector via POE function (LNX-003Me does not support PoE)	PoE supports both pattern A and pattern B
Current consumption	350mA or less
Network Interface	IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX) half duplex/full duplex (automatic determination)
LAN connector	RJ45	ESD protection insulation (1500Vrms or more)
Communication Protocol	Modbus TCP
Communication Standards	RS-485 half-duplex asynchronous non-procedure internal circuit with DC3000V insulation	ESD Protection
connector	PHOENIX CONTACT 5PIN terminal block	5mm pitch
Communication speed	300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Data Length	7 or 8 bit
Stop bits	1 or 2 bits
Parity Check	Odd, Even, No Parity
Operational Mode	Modbus RTU Master/SlaveModbus ASCII Master/Slave
Number of connectable terminals (in slave mode)	Up to 8 devices can be connected simultaneously to the Modbus TCP master
Slave Address - IP Address Table (in Master Mode)	Up to eight IP addresses can be registered for each slave address (ID) range.
Memory card for settings	microSD card	For setting up this product
Indicator LED	POW: Power display LED RX: Received data display LED TX: Transmitted data display LED SYS: System status LED LINK (RJ45 connector): LINK status ACT (RJ45 connector): ACT status
Operating temperature range	-10 to 55°C	No condensation, etc.
Operating humidity range	30～85% RH	No condensation, etc.
Storage Temperature Range	-20 to 60°C	No condensation, etc.
Storage Humidity Range	30～85% RH	No condensation, etc.
Noise resistance standards, etc.	EMS:EN61000-6-2 EN61000-4-2(2009) Electrostatic Test EN61000-4-3(2010) Radio Frequency Electromagnetic Fields EN61000-4-4(2010) Fast Transient EN61000-4-5(2006) Surge Immunity EN61000-4-6(2009) Radio Frequency Common Mode EMI: EN61000-6-4 EN61000-6-4(2007)+A1(2011) Radiated interference field strength EN61000-6-4(2007)+A1(2011) Terminal Disturbance Voltage	This product complies with the common standards for industrial environments, EN61000-6-2 and EN61000-6-4. Except when using PoE.
mass	About 120 [g]	Body only
External dimensions	69 x 82.5 x 30 [mm]	Protrusions not included

RS-485 pin assignment

1-4 and 2-5 are internally connected

LNX series setting tool

　This is an application for creating setting data for the LNX series.

　The created setting data is automatically configured by inserting it into the setting memory card (microSD) and turning on the power.
At this time, a backup file of the setting data is created on the setting memory card (microSD).
The setting data is saved even when the power is turned off, so there is no need to insert the microSD card next time.
When replacing the main unit of the LNX series, you can easily set it to the same settings by using the setting memory card (microSD).
If the PC and product are connected in the same segment, you can also configure it via the network (LAN).

Product Configuration

• Main unit
• microSD card (with USB adapter)
• AC adapter
• Driver & Application CD
• Product Manual

Introducing an application for checking Modbus communications

　This application allows you to check Modbus communication using our LAN or USB converter. You can download it from
here .

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.
