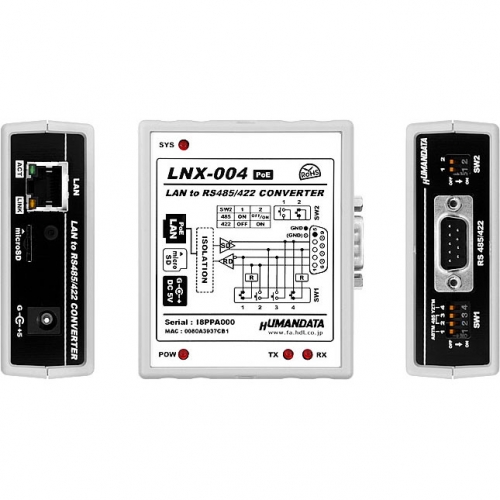

LNX-004 is a LAN converter that allows you to use RS-485/RS-422 from a LAN. It uses a D-Sub 9-pin interface connector. LNX-004e does not support PoE.

LNX-004

*The second and subsequent images are CG.

LNX-004e

*The second and subsequent images are CG.

overview

　LNX-004 is a LAN converter that allows you to use RS-485/RS-422 via Ethernet. The RS-485/RS-422 side is insulated.
The LAN is originally insulated, so it is double insulated. It can be connected to
　LNX-001 and connected in tunneling mode (transparent mode/1:1 communication without going through a PC).
It is also possible to connect LNX-004 to LNX-004. In that case, it can join another RS485/422 line group. It is
　also possible to connect directly to LNX-004 from a PC using TCP/UDP or Telnet.
It comes standard with PoE function, so it can be powered from the LAN cable. (PoE-compatible HUB, etc. is required.) It can also be operated with the included AC adapter. LNX-004e works with the AC adapter.

*Mounting fixtures sold separately

■Tunneling operation example

It is also possible to connect directly to the LNX-004 from a PC via TCP/IP.

Features

• Media converter function to convert RS-485/RS-422 to LAN
• Two LNX-004 units can be used for 1:1 connection in tunneling mode (transparent mode).
• Automatically detects 10Base-T/100Base-TX
• Easy device setup with setting memory card (microSD)
  • When replacing equipment, you can easily migrate by replacing the setting memory card.
  • Setting data can be sent to remote locations via email attachments, etc.
  • There are no restrictions on the IP address that can be set (can be set outside the segment)
  • Easily back up and record settings by saving the settings file
• Device settings can also be configured via network (LAN) using the original setting tool.
• PoE compatible, so power can be supplied via LAN cable (LNX-004e does not support PoE)
• Virtual COM port support
• Industrial Design
• Small lot OEM possible
  from 50 units, we will provide you with your original nameplate.
• Free of 10 substances restricted by the RoHS Directive

Connection Topology

[Tunneling connection between LNX-004]

[Tunneling connection between LNX-001 and LNX-004]

[LNX-004 alone]


　You can communicate with RS-485/422 lines at remote locations using Ethernet.

specification

item	Contents	remarks
Model number	LNX-004/LNX-004e
power supply	DC5V Supplied from the included AC adapter or LAN connector via POE function (LNX-004e does not support PoE)	PoE supports both pattern A and pattern B
Current consumption	350mA or less
Network Interface	IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX) half duplex/full duplex (automatic determination)
LAN connector	RJ45	ESD protection insulation (1500Vrms or more)
Communication Protocol	TCP/UDP/Telnet
Input/Output Specifications	RS-485 / RS-422 2-wire or 4-wire internal circuit with DC3000V insulation	ESD Protection
connector	D-Sub 9-pin male (Mounting screw #4-40 UNC)	Mounting screws M2.6 mm screws are also included and can be replaced.
Memory card for settings	microSD card	For setting up this product
Communication speed	300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 bps
Data Length	7 or 8 bit
Stop bits	1 or 2 bits
Parity Check	Odd, Even, No Parity
Indicator LED	POW: Power display LED RX: Received data display LED TX: Transmitted data display LED SYS: System status LED LINK (RJ45 connector): LINK status ACT (RJ45 connector): ACT status
Operating temperature range	-10 to 55°C	No condensation, etc.
Operating humidity range	30～85% RH	No condensation, etc.
Storage Temperature Range	-20 to 60°C	No condensation, etc.
Storage Humidity Range	30～85% RH	No condensation, etc.
Noise resistance	Not specified
Standards etc.	Not specified
mass	About 120 [g]	Body only
External dimensions	69 x 82.5 x 30 [mm]	Protrusions not included

D-Sub 9-pin connector pin assignment

LNX series setting tool

　This is an application for creating setting data for the LNX series.

　The created setting data is automatically configured by inserting it into the setting memory card (microSD) and turning on the power.
At this time, a backup file of the setting data is created on the setting memory card (microSD).
The setting data is saved even when the power is turned off, so there is no need to insert the microSD card next time.
When replacing the main unit of the LNX series, you can easily set it to the same settings by using the setting memory card (microSD).
If the PC and product are connected in the same segment, you can also configure it via the network (LAN).

Product Configuration

• Main unit
• microSD card (with USB adapter)
• AC adapter
• Driver & Application CD
• Product Manual

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.

• Application example: Controlling Espec's thermostatic chamber using LNX-004
• Application example: Modbus RTU/ASCII communication
