overview

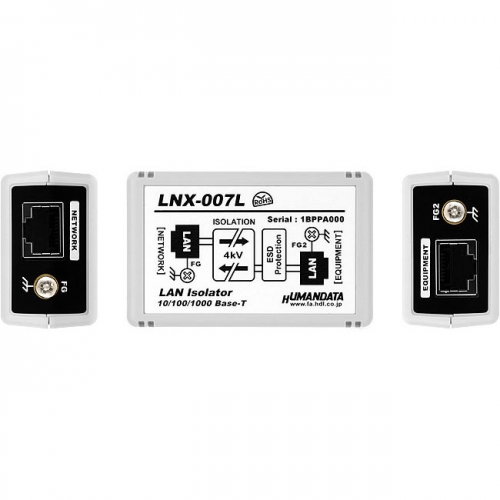

The LNX-007L is a small LAN isolator that can provide high-voltage insulation between network devices. It has a built-in high-voltage insulating transformer (4000V), ESD protection element, and common mode filter for radiated noise removal, and is expected to provide the benefits of isolation such as improved noise resistance and strong protection for devices. Both the network side and the device side are equipped with FG terminals, so even when using STP cable, both ends of the shielded wire can be easily grounded.

*The second and subsequent images are CG.

* Installation reference diagram (mounting fixture sold separately)



Features

• Uses a high-voltage insulating transformer. Dielectric strength: 4000V
• Applicable lines: 1000BASE-T, 100BASE-TX, 10BASE-T Transmission characteristics: Category 5e compatible
  *PoE power supply is not supported.
• Equipped with FG terminals on both the network side and device side
• Built-in common mode filter for eliminating radiation noise from differential transmission
• ESD protection (equipment side only)
• No external power supply required
• Free of 10 substances restricted by the RoHS Directive

Connection example

*Does not support PoE power supply
*Please use a Category 5e or higher LAN cable that supports 1000BASE-T, 100BASE-TX, and 10BASE-T

specification

Product Configuration

• Main unit
• Product Manual

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.
