overview

　LNX-010 is a converter that connects to RS-485/RS-422 via LAN. The RS-485/RS-422 side is insulated. The LAN is originally insulated, so it is double insulated. It supports multiple connections of up to four devices at the same time, so you can communicate with RS-485/422 devices from multiple PCs or tablets. The baud rate on the RS-485/422 side can be set to a custom (arbitrary) baud rate within the range of 9,600 to 4 Mbps. It is possible to install multiple LNX-010s and connect them in tunneling mode without going through a PC, and it can also be used to extend the distance between RS-485/422 devices via LAN. In that case, it can join a different RS-485/422 line group. You can also communicate with RS-485/422 devices by directly connecting to the LNX-010 from a PC using TCP/UDP or Telnet.

　Since it comes standard with PoE functionality, it can be powered from a LAN cable (requires a PoE-compatible HUB, etc.). It
can also be powered by the included AC adapter or USB bus power. The LNX-010e is not PoE-compatible and can be powered by an AC adapter.

　Various settings such as network and serial communication can be easily written via USB using our original setting tool (LNX SETTING TOOL). Setting data can also be backed up and imported, allowing multiple devices to be set up quickly and sequentially.

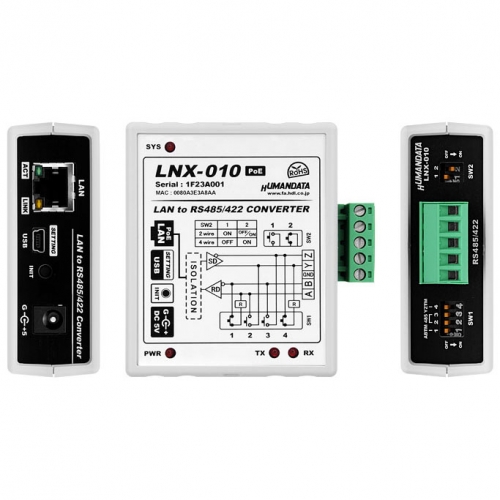

LNX-010 *The second and subsequent images are CG.


LNX-010e *The second and subsequent images are CG.

* Installation reference diagram (mounting fixture sold separately)

Features

• Media converter function to convert RS-485/RS-422 to LAN
• Supports high-speed communication of up to 4Mbps
• Custom baud rate support
• Supports multiple connections for up to four devices at the same time
• Multiple LNX-010 units can be installed and connected in tunneling mode without going through a PC.
• Easy device setup via USB using the dedicated application
  • Easy recovery with backup data even when replacing equipment
  • Setting data can be sent to remote locations via email attachments, etc.
  • There are no restrictions on the IP address that can be set (can be set outside the segment)
  • Easily back up and record settings by saving the settings file
• Power can be supplied from an AC adapter or USB bus power
• PoE compatible, so power can be supplied via LAN cable (LNX-010e does not support PoE)
• Industrial Design
• Small lot OEM possible
  from 50 units, we will provide you with your original nameplate
• Free of 10 substances restricted by the RoHS Directive

Connection Topology

[LNX-010 alone (terminal mode)]

You can communicate with RS-485/422 lines at remote locations using Ethernet.

[Tunneling connection between LNX-010]

LNX-010 can communicate directly with each other without the need for a PC, and RS-485/422 lines can be connected together.
1:1 connection with a cross cable is also possible.

[Connect LNX-011W and LNX-010 via tunneling and use RS-485/422]

Wifi

You can communicate with a remote RS-485/422 line from a PC's USB port via an access point such as a Wi-Fi router. For communication with the LNX-011W, you can use FTDI's virtual COM port or D2XX-API. No network knowledge is required for programming.

specification

item	Contents	remarks
Model number	LNX-010/LNX-010e
power supply	DC5V Supplied from the included AC adapter, USB bus power , or LAN connector via POE function (LNX-010e does not support PoE)	PoE supports both pattern A and pattern B
Current consumption	500mA or less
Network Interface	IEEE 802.3 MAC, 10BaseT/100BaseT (RMII)
Communication Protocol	DHCP client, server IPv4 TCP/IP, UDP/IP, ARP, ICMP Auto IP, DNS, SNMP v1/v2
Number of simultaneous network connections	4 units	Multi-connection support
LAN connector	RJ45	ESD protection  insulation (1500Vrms or more)
Serial Interface	RS-485/422 2-wire or 4-wire internal circuit and DC3000V insulation	ESD Protection
RS-485/422 terminal block	PHOENIX CONTACT 5PIN terminal block	5.08mm pitch
Communication speed	9,600bps to 4Mbps	Custom baud rate support
Data Length	7 or 8 bit
Stop bits	1 or 2 bits
Parity Check	Odd, Even, No Parity
RS485 (2-wire) transmit/receive switching time	1ms or less
USB connector for main unit settings	Mini-B type female
How to set up the device	Dedicated application: LNX SETTING TOOL Supported OS: Windows 10	Configuration via web browser is optional
Display LED, Button	PWR: Power indicator LED SYS: System status LED TX: Transmitted data indicator LED RX: Received data indicator LED LINK (RJ45 connector): LINK status ACT (RJ45 connector): ACT status INIT: Initialization button
Operating Temperature Range	-20 to 60°C	No condensation, etc. ( AC adapter excluded)
Operating Humidity Range	30～85% RH
Storage Temperature Range	-20 to 60°C
Storage Humidity Range	30～85% RH
mass	About 120 [g]	Body only
External dimensions	69 x 82.5 x 30 [mm]	Protrusions not included

*Parts may be changed to compatible ones
. *Power saving functions such as suspend, standby, and hibernation are not supported.

RS-485/RS-422 terminal block

The terminal block can be inserted and removed with wiring in place. Please avoid inserting and removing the terminal block while the power is on.

It is recommended to connect this pin to ground.

LNX series setting tool

　This is an application that creates setting data for the LNX series.

Various settings can be easily made via USB. Since USB operates as a standard CDC-ACM class, the driver (Usbser.sys) that is built into the OS from the beginning is used. In Windows 10, it is automatically loaded when the USB is connected, so there is no need to install the driver.

Product Configuration

• Main unit
• Mini USB cable 1.0m long
• AC adapter
• Application CD
• Product Manual

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.
