overview

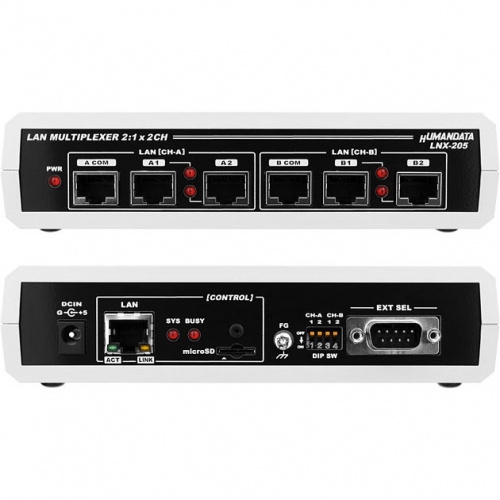

　LNX-205 is a LAN multiplexer that can switch 2 circuits x 2 channels of LAN ports. The multiplexer IC can switch all the LAN connections (8 wires) in the following three ways.

• Switching by sending simple commands from a PC via LAN
• Remote switching by external contact input
• Manual switching by the switch on the main unit

　It can be used to switch between external and internal networks, or for systems that connect to the network only when necessary. By switching the LAN port, it is possible to perform inspections of two LAN devices with a single setting during automatic inspections, and it can also be used to reduce the labor required for inspection processes.

　The LNX-205 comes standard with a PoE function, so it can be powered from a LAN cable (requires a PoE-compatible HUB, etc.). It can also be powered by the included AC adapter.

　Network settings and other settings can be configured from a microSD card, and when replacing equipment, they can be easily restored by simply inserting the microSD card.

*The second and subsequent images are CG.



* Installation reference diagram (mounting fixture sold separately)



Features

•
  There is no need to manually plug and unplug the LAN cable by switching the entire LAN wiring (8 cores).
• Remote switching is possible via LAN or external contact input. Switching via virtual COM port is also possible with
  LNX-VCP.
• Manual switching is possible using the switch on the main unit.
• Can be used for switching between EtherCAT master and slave, and
  for systems that automatically switch between devices with the same IP address and connect to the network only when necessary.
• Can also be used as a simple firewall
• Easy device setup with setting memory card (microSD)
  • When replacing equipment, you can easily migrate by replacing the setting memory card.
  • Setting data can be sent to remote locations via email attachments, etc.
  • There are no restrictions on the IP address that can be set (can be set outside the segment)
  • Easily back up and record settings by saving the settings file
• Device settings can also be configured via network (LAN) using the original setting tool.
• The power supply for the main unit is PoE compatible and can be powered from a LAN cable
  . *The switching port does not support PoE power supply.
• AC adapter included
• Equipped with FG terminal
• ESD protection on all LAN ports
• Free of 10 substances restricted by the RoHS Directive

Connection example

Switch between the LAN or external network connected to the common port (A COM) and either LAN ① or ②. The same applies to Channel B, which is independent of Channel A.

specification

(*1)
This product has been tested in a 10/100/1000 Base-T environment, but
because it is inserted in the middle of the LAN cable, speed may decrease. Speed ​​is not guaranteed. If the LAN cable is long, inserting a gigabit-compatible switching hub may improve the speed decrease. You can evaluate it with a free demo unit
before purchasing .

External contact input connector pin assignment

D-Sub 9-pin male
mounting screw can be replaced with M2.6 mm screw

LNX series setting tool

　This is an application for creating setting data for the LNX series.

　The settings will be automatically configured by inserting the created setting data into the setting memory card (microSD) and turning on the power.
At this time, a backup file of the setting data will be created on the setting memory card (microSD). The
setting data will be saved even if the power is turned off, so there is no need to insert the microSD card next time.
When replacing the LNX series main unit, you can easily set it to the same settings by using the setting memory card (microSD).
If the PC and product are connected in the same segment, you can also configure it via the network (LAN).

Product Configuration

• Main unit
• microSD card (with USB adapter)
• AC adapter
• Driver & Application CD
• Product Manual

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.
