overview

　The LNX-209/LNX-209e is a LAN multiplexer that can switch between four LAN ports. You can physically switch all the LAN connections (8 wires) using the following method.

• Switching can be done by sending simple commands via LAN from a remote PC, etc.
• Manual switching with the switch attached to the main unit
• Switching by external contact input *Not compatible with LNX-209e (economy version)

　The switching circuit uses a latching relay, so the connection of the switched LAN port can be maintained even after the power is turned off. Switching is also possible for PoE LAN ports (hot plugging and unplugging is not supported). It can be used for switching between external and internal networks, or for systems that connect to the network only when necessary. By switching the LAN port, it is possible to test four devices with a single setting during automatic testing of LAN devices, which can also be used to reduce the labor required for testing.

　The LNX-209 comes standard with a PoE circuit, so it can be powered from a LAN cable (a PoE-compatible hub is required). It can also be powered from the included AC adapter. Network settings can be
　configured from a microSD card, and when replacing equipment, you can easily restore the settings by simply inserting the microSD card.

　The LNX-209e is an economy (low-cost) version that omits the PoE circuit for power and the external contact input function. Power is supplied from the included AC adapter.

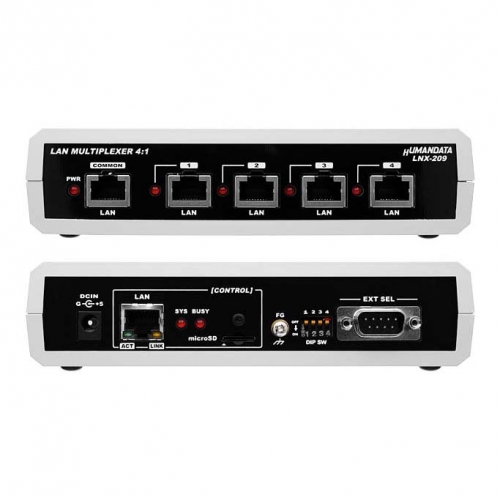

LNX-209 *The second and subsequent images are CG.


LNX-209e *The second and subsequent images are CG.

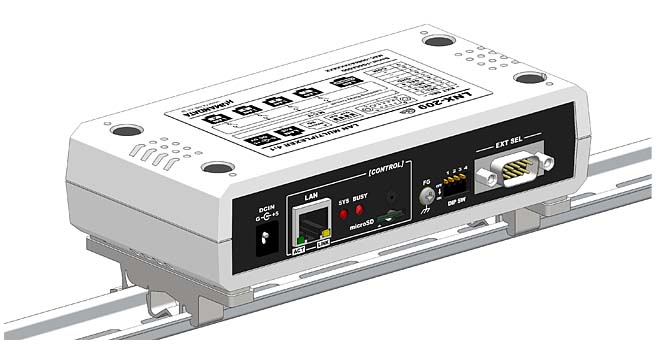

* Installation reference diagram (mounting fixture sold separately)



Features

• Physically switches all LAN connections (8 cores) (also supports PoE switching)
  No need to manually plug and unplug LAN cables
• PoE LAN port can also be switched. *Hot line insertion and removal is not supported.
• The connection of the switched LAN port can be maintained even when the power is turned off.
• You can switch the LAN port in the following three ways.
  • Switching of LAN ports can be done by sending simple commands from a remote PC via LAN. Switching via virtual COM port is also possible with
    LNX-VCP.
  • Manual switching with the switch attached to the main unit
  • Switching by external contact input *Not compatible with LNX-209e (economy version)
• Since the unconnected ports are not connected, it can also be used as a simple firewall.
• Can be used for switching between EtherCAT master and slave, and
  for systems that automatically switch between devices with the same IP address and connect to the network only when necessary.
• Easy device setup with setting memory card (microSD)
  • When replacing equipment, you can easily migrate by replacing the setting memory card.
  • Setting data can be sent to remote locations via email attachments, etc.
  • There are no restrictions on the IP address that can be set (can be set outside the segment)
  • Easily back up and record settings by saving the settings file
• Device settings can also be configured via network (LAN) using the original setting tool.
• The power supply for the main unit is PoE compatible and can be powered from a LAN cable. *LNX-209e (economy version) is not compatible.
• AC adapter included
• Equipped with FG terminal
• ESD protection on all LAN ports
• Free of 10 substances restricted by the RoHS Directive

Connection example

Switch between the COMMON port LAN or external network and any of LANs ① to ④

specification

item		Contents		remarks
Model number		LNX-209	LNX-209e
power supply		DC5V supplied from the included AC adapter or LAN connector via PoE function	DC5V AC adapter included	PoE supports both pattern A and pattern B
External contact input connector		D-Sub 9pin Male	none
Current consumption		400mA or less
Control Port		IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX) half duplex/full duplex (automatic determination)
Common/switching port		10/100/1000 Base-T(*1)		Supports PoE switching
LAN connector		6 x RJ45		ESD Protection
Communication Protocol		TCP/UDP/Telnet
Switching Method		Path switching by latching relay (*2)
Switching Time		100 ms or less
Memory card for settings		microSD card		For setting up this product
Indicator LED		Power indicator LED Selection indicator LED × 4 System status LED microSD LED LINK status LED (RJ45 connector) ACT status LED (RJ45 connector)
Operating temperature range		-20 to 60°C		No condensation, etc. ( AC adapter excluded)
Operating humidity range		10～85% RH
Storage Temperature Range		-20 to 60°C
Operating Humidity Range		10～85% RH
mass		About 300 [g]		Body only
External dimensions		165 x 80.5 x 39 [mm]		Protrusions not included

(*1)
This product has been tested in 10/100/1000 Base-T environments, but
because it is inserted in the middle of the LAN cable, speed may decrease. Speed ​​is not guaranteed. In cases such as when the LAN cable is long, speed decrease may be improved by inserting a gigabit-compatible switching hub. You can evaluate it with a free demo unit
before purchasing . (*2) The electrical contact life of the latching relay is more than 50,000 times.

External contact input connector pin assignment

*Not installed on LNX-209e (Economy version)

D-Sub 9-pin male
Mounting screw can be replaced with M2.6 mm screw


LNX series setting tool

　This is an application for creating setting data for the LNX series.

　The created setting data is automatically configured by inserting it into the setting memory card (microSD) and turning on the power.
At this time, a backup file of the setting data is created in the setting memory card (microSD).
The setting data is saved even when the power is turned off, so there is no need to insert the microSD card next time.
When replacing the main unit of the LNX series, you can easily set it to the same settings by using the setting memory card (microSD).
If the PC and the product are connected in the same segment, you can also configure it via the network (LAN).

Product Configuration

• Main unit
• microSD card (with USB adapter)
• AC adapter
• Driver & Application CD
• Product Manual

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.
