overview

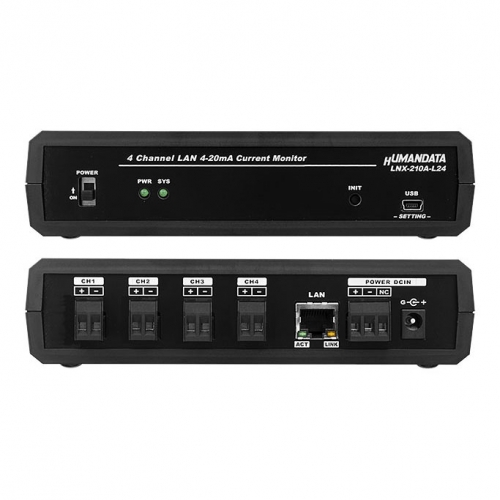

　The LNX-210A-L24 is a current monitor that can measure 4-20mA signals on 4 channels via LAN. The LAN side and each channel are independently isolated. Each channel is equipped with an AD converter, allowing simultaneous measurement of 4 channels. The power
supply can accept a wide range of inputs from 8 to 30V DC, and can be supplied from a 24V DC power supply that is often used in control panels. It can also be powered from the included AC adapter.
By using the included application LNX-210A C-Monitor, it is possible to display measurement results, scaling values, charts, etc. on a remote computer.
By using dedicated control commands, it is also possible to measure 4-20mA from your own application.

We also have 　a Wi-Fi type, LNX-210A-W24 .

*The second and subsequent images are CG.



* Installation reference diagram (mounting fixture sold separately)



Features

• Acquires 4-20mA measurement results from 4 channels via LAN
• Measurable range: 0 to 22.5mA
• Measurement accuracy: ±0.3%FS
• LAN and each channel are independently isolated (insulation voltage: DC2500V)
• The attached application allows you to display current values, scaling values, charts, etc.
• By using the dedicated control command, you can measure 4-20mA from your own application.
• The main unit can be easily configured via USB using the original configuration tool.
  • Easy recovery with backup data even when replacing equipment
  • Setting data can be sent to remote locations via email attachments, etc.
  • No restrictions on the IP address you can set (can be set outside the segment)
  • Easily back up and record settings by saving the settings file
• Power supply: DC8 to 30V wide power input or supplied with AC adapter
• Noise-resistant design
• Resin housing for reliable insulation
• Uses a removable terminal block.
  The terminal block can be removed while wiring is still connected.
• Mini USB cable 1.0m long included (for main unit settings)
• AC adapter (DC5V) included
• External dimensions: 165 x 80.5 x 39 [mm] (excluding protrusions)
• Small lot OEM possible
  from 50 units, we will provide you with your original nameplate.
• Free of 10 substances restricted by the RoHS Directive

Application Overview

　The application (LNX-210A C-Monitor) that comes with the LNX-210A-L24 allows you to use it as a high-precision 4-20mA signal monitor on your PC. It also allows scaling (unit conversion), chart display, logging, etc.
Dedicated commands are available, so you can easily measure current from Tera Term or your own application.
*Supported OS: Windows 11/10/8.1/8/7 (32/64bit)

specification

item	Contents	remarks
Model number	LNX-210A-L24
power supply	Powered by DC8 to 30V or included AC adapter
Power Connector	Detachable terminal block 3 poles/3.5mm pitch	Molex model number 39520-0003
Current consumption	150mA or less (when DC24V is supplied)
Network Interface	IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX) half duplex/full duplex (automatic determination)
LAN connector	RJ45	ESD protection insulation (1500Vrms or more)
Communication Protocol	TCP/IP
Current Input Connector	Detachable terminal block 2 poles/3.5mm pitch x 4	Molex model number 39520-0002
Number of Channels	4
Measurable range	0 to 22.5mA
Measurement accuracy	±0.3%FS or less
resolution	24bit A/D
Sampling Period	10ms to 10min	Can be set by command
Input Resistance	200Ω/channel
Insulation method	Independent Bus Isolation
Channel-to-channel insulation voltage	DC2500V	Design value
Installed LSI	General-purpose microcomputer
Indicator LED	PWR: Power display LED SYS: System status LED LINK (RJ45 connector): LINK status ACT (RJ45 connector): ACT status
Operating Temperature Range	-20 to 60°C	No condensation, etc.
Operating Humidity Range	30～85% RH
Storage Temperature Range	-20 to 60°C
Storage Humidity Range	30～85% RH
mass	Approximately 300 [g]
External dimensions	165 x 80.5 x 39 [mm]	Protrusions not included

*Parts may be changed to compatible ones
. *Power saving functions such as suspend, standby, and hibernation are not supported.

Pin assignment

[Power connector]

• Detachable terminal block 3 poles/3.5mm pitch
• Molex 39520-0003
• Applicable wire: AWG30(0.05sq) to AWG16(1.25sq)
• Stripped wire length: 6.5mm

[Current input connector]



symbol	Contents
+	Current Terminal +
-	Current terminal -

• Detachable terminal block, 2 poles/3.5mm pitch
• Molex 39520-0002 (4 pieces)
• Applicable wire: AWG30(0.05sq) to AWG16(1.25sq)
• Stripped wire length: 6.5mm

LNX series setting tool

　This is an application for creating setting data for the LNX series.

Product Configuration

• Main unit
• Mini USB cable 1.0m long
• AC adapter (DC5V)
• Application CD
• Product Manual

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.
