overview

　LNX-211V-L24 is a voltage monitor that can measure 4-channel analog voltage (±10V) via LAN. The LAN side and each channel are independently insulated. Each channel is equipped with an AD converter, allowing simultaneous measurement of 4 channels.
The power supply can accept a wide range of power input from 8 to 30V DC, and can be supplied from a DC24V power supply that is often used in control panels. It can also be powered from the included AC adapter.
By using the included application LNX-211V Voltage Monitor, it is possible to display measurement results, scaling values, charts, etc. on a remote computer.
By using dedicated control commands, it is also possible to measure analog voltage (±10V) from your own application.

We also have 　a Wi-Fi type, LNX-211V-W24 .

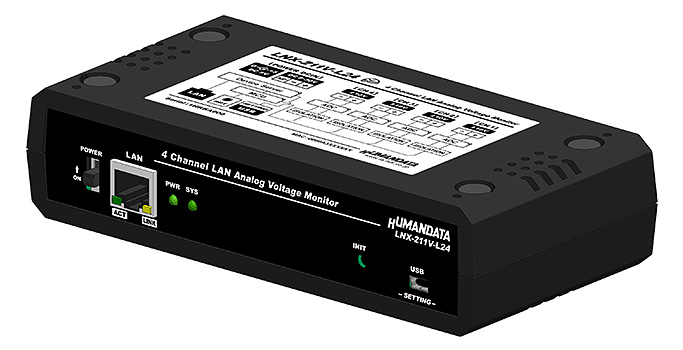

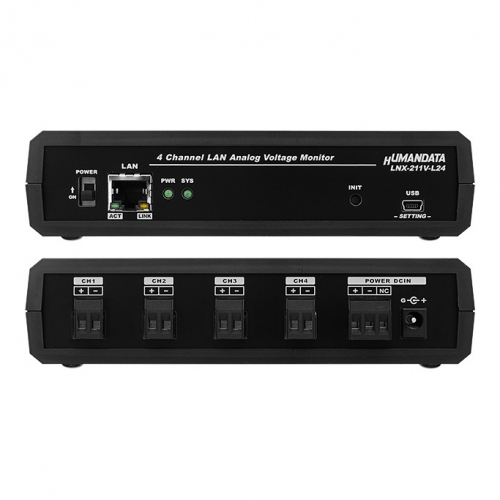

*The second and subsequent images are CG.



* Installation reference diagram (mounting fixture sold separately)



Features

• Acquires 4-channel analog voltage (±10V) measurement results via LAN
• Measurable range: ±10V
• Measurement accuracy: ±0.05%FS or less
• LAN and each channel are independently isolated (insulation voltage: DC2500V)
• The attached application allows you to display voltage values, scaling values, charts, etc.
• By using dedicated control commands, you can measure analog voltage (±10V) from your own application.
• The main unit can be easily configured via USB using the original configuration tool.
  • Easy recovery with backup data even when replacing equipment
  • Setting data can be sent to remote locations via email attachments, etc.
  • No restrictions on the IP address you can set (can be set outside the segment)
  • Easily back up and record settings by saving the settings file
• Power supply: DC8 to 30V wide power input or supplied with AC adapter
• Noise-resistant design
• Resin housing for reliable insulation
• Uses a removable terminal block.
  The terminal block can be removed while wiring is still connected.
• Mini USB cable 1.0m long included (for main unit settings)
• AC adapter (DC5V) included
• External dimensions: 165 x 80.5 x 39 [mm] (excluding protrusions)
• Small lot OEM possible
  from 50 units, we will provide you with your original nameplate
• Free of 10 substances restricted by the RoHS Directive

Application Overview

　The application (LNX-211V Voltage Monitor) that comes with the LNX-211V-L24 allows you to use your PC as a high-precision analog voltage (±10V) monitor. Scaling (unit conversion), chart display, logging, etc. are also possible.
Dedicated commands are available, so you can easily measure voltage from Tera Term or your own application.
*Supported OS: Windows 11/10/8.1/8/7 (32/64bit)

specification

item	Contents	remarks
Model number	LNX-211V-L24
power supply	Powered by DC8 to 30V or included AC adapter
Power Connector	Detachable terminal block 3 poles/3.5mm pitch	Molex model number 39520-0003
Current consumption	250mA or less (when DC24V is supplied)
Network Interface	IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX) half duplex/full duplex (automatic determination)
LAN connector	RJ45	ESD protection insulation (1500Vrms or more)
Communication Protocol	TCP/IP
Voltage Input Connector	Detachable terminal block 2 poles/3.5mm pitch x 4	Molex model number 39520-0002
Number of Channels	4
Measurable range	±10V
Measurement accuracy	±0.05%FS or less (at temperature range of -20 to 50°C) ±0.03%FS or less (at temperature range of 0 to 40°C)
resolution	24bit A/D
Sampling Period	10ms to 10min	Can be set by command
Insulation method	Independent Bus Isolation
Channel-to-channel insulation voltage	DC2500V	Design value
Installed LSI	General-purpose microcomputer
Indicator LED	PWR: Power display LED SYS: System status LED LINK (RJ45 connector): LINK status ACT (RJ45 connector): ACT status
Operating Temperature Range	-20 to 50°C	No condensation, etc.
Operating Humidity Range	30～85% RH
Storage Temperature Range	-20 to 60°C
Storage Humidity Range	30～85% RH
mass	Approximately 300 [g]
External dimensions	165 x 80.5 x 39 [mm]	Protrusions not included

*Parts may be changed to compatible ones
. *Power saving functions such as suspend, standby, and hibernation are not supported.

Pin assignment

[Power connector]

• Detachable terminal block 3 poles/3.5mm pitch
• Molex 39520-0003
• Applicable wire: AWG30(0.05sq) to AWG16(1.25sq)
• Stripped wire length: 6.5mm

[Voltage input connector]



symbol	Contents
+	Voltage Terminal +
-	Voltage Terminal -

• Detachable terminal block, 2 poles/3.5mm pitch
• Molex 39520-0002 (4 pieces)
• Applicable wire: AWG30(0.05sq) to AWG16(1.25sq)
• Stripped wire length: 6.5mm

LNX series setting tool

　This is an application for creating setting data for the LNX series.

Product Configuration

• Main unit
• Mini USB cable 1.0m long
• AC adapter (DC5V)
• Application CD
• Product Manual
