overview

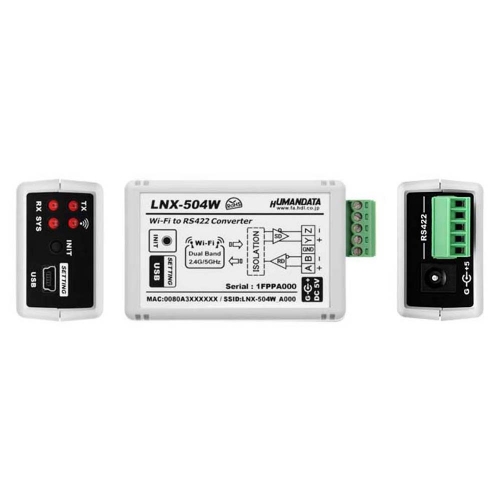

　The LNX-504W is a converter that can communicate with 4-wire (full duplex) RS-422 devices located at a distance via Wi-Fi.
For communication with 2-wire (half duplex) RS-485 devices, the LNX-503W is available.
It supports dual-band (2.4GHz/5GHz) IEEE 802.11a/b/g/n wireless standards and can be used in various Wi-Fi environments. It
　supports multiple connections of up to four devices at the same time, allowing communication with RS-422 devices from multiple PCs and tablets. The baud rate on the RS-422 side can be set to a custom (arbitrary) baud rate within the range of 9,600 to 4M bps.
　It is possible to install multiple LNX-504Ws and connect them in tunneling mode without going through a PC. It can also be used to wirelessly connect RS-422 devices to each other via Wi-Fi and extend the signal.
　Various settings such as Wi-Fi and serial communication can be easily written via USB using our original setting tool (LNX SETTING TOOL). It is also possible to back up and import configuration data, allowing you to quickly configure multiple devices sequentially.

*Cannot be used overseas as it requires certification according to the radio laws of each country.

*The second and subsequent images are CG.



* Installation reference diagram (mounting fixture sold separately)



Features

• Media converter function to convert RS-422 to Wi-Fi
• Supports multiple connections for up to four devices at the same time
• Multiple LNX-504W units can be installed and connected in tunneling mode without going through a PC.
• Easy device setup via USB using the dedicated application
  • Easy recovery with backup data even when replacing equipment
  • Setting data can be sent to remote locations via email attachments, etc.
  • There are no restrictions on the IP address that can be set (can be set outside the segment)
  • Easily back up and record settings by saving the settings file
• Supports custom baud rates
  In addition to the standard baud rates, communication at special baud rates is possible.
• Power can be supplied from an AC adapter or USB bus power
• Industrial Design
• Small lot OEM possible
  from 50 units, we will provide you with your original nameplate
• Free of 10 substances restricted by the RoHS Directive

Connection Topology

[LNX-504W only (terminal mode)]

    Wifi

You can communicate with RS-422 devices located far away from your PC via an access point such as a Wi-Fi router.

[LNX-504W alone (Access Point Mode)]

  Wifi

The built-in access point function of the product allows communication with RS-422 devices in remote locations.

[Tunneling connection between LNX-504W]

   Wifi

LNX-504W can communicate directly with each other without the need for a PC, and can wirelessly extend RS-422 signals.

[Connect LNX-011W and LNX-504W via tunneling and use RS-422]

   Wifi

You can communicate with RS-422 devices in remote locations via Wi-Fi from the USB interface. For communication with
the LNX-011W,
you can use FTDI's virtual COM port or D2XX-API. No network knowledge is required for programming.

specification

item		Contents	remarks
Model number		LNX-504W
power supply		DC5V AC adapter or USB bus power
Current consumption		500mA or less
Wifi	Interface	IEEE 802.11 a/b/g/n compliant Dual band 2.4 GHz / 5 GHz
	Safety features	WPA/WPA2-PSK CCMP and TKIP encryption	WEP (40/128bit) WPA2 Enterprise (IEEE 802.1x) is optional
	Frequency range	2.412-2.484GHz (20MHz channel) 5.18-5.845GHz (20/40MHz channel)
	Transmission speed	IEEE 802.11a/b/g: 54Mbps IEEE 802.11n: MCS7
	Modulation Method	IEEE 802.11 a/g/n: OFDM method IEEE 802.11 b: DSSS method
	Transmission Level	IEEE 802.11a: 15±2 dBm IEEE 802.11b: 17±2 dBm IEEE 802.11g: 15±2 dBm IEEE 802.11n (2.4GHz): 15±2 dBm IEEE 802.11n (5GHz): 13±2 dBm	Indoor guideline: Approximately 10m
	Communication Protocol	DHCP client, server IPv4 TCP/IP, UDP/IP, ARP, ICMP Auto IP, DNS, SNMP v1/v2	IPv6 is optional
	Number of simultaneous connections	4 units	Multi-connection support
Serial Interface		RS-422 4-wire (full duplex) internal circuit with DC3000V insulation	ESD Protection
RS-422 terminal block		PHOENIX CONTACT 5PIN terminal block	3.5mm pitch
Communication speed		9,600bps to 4Mbps	Custom baud rate support
Data Length		7 or 8 bit
Stop bits		1 or 2 bits
parity		Odd, Even, No Parity
USB connector for main unit settings		Mini-B type female
How to set up the device		Dedicated application: LNX SETTING TOOL Supported OS: Windows 10 or later	Configuration via web browser is optional
Indicator LEDs and buttons		SYS: System status LED Antenna mark: Wi-Fi connection active LED TX: Transmitted data display LED RX: Received data display LED INIT: Initialization button
Operating Temperature Range		-20 to 60°C	No condensation, etc. ( AC adapter excluded)
Operating Humidity Range		30～85% RH
Storage Temperature Range		-20 to 60°C
Storage Humidity Range		30～85% RH
Noise resistance		Not specified
Standards etc.		Not specified
mass		About 70 [g]	Body only
External dimensions		67 x 43.5 x 27 [mm]	Protrusions not included

*Parts may be changed to compatible ones
. *Power saving functions such as suspend, standby, and hibernation are not supported.

RS-422 terminal block

The terminal block can be inserted and removed with wiring in place. Please avoid inserting and removing the terminal while the power is on.
We recommend connecting the ground.

	symbol	Contents
	Z	send-
	Y	Send +
	GND	ground
	B	Reception -
	A	Reception +

How to check the operation

LNX series setting tool (LNX SETTING TOOL)

　This is an original Human Data application for settings. You can easily read and write settings via USB. Click here to download the manual and application.

Product Configuration

• Main unit
• Mini USB cable 1.0m long
• AC adapter
• Termination resistor (120Ω) × 2
• Application CD
• Product Manual

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.
