overview

　LNX-506 is a converter that connects to RS-485 2-wire (half-duplex) via LAN. The RS-485 side is insulated. The LAN is originally insulated, so it is double insulated. By
connecting a PC and LNX-506 via LAN, you can control RS-485 devices using TCP, UDP, Telnet, etc. You can also connect LNX-506 to each other via LAN and use it to extend an existing RS-485 network via LAN. It
　operates by supplying DC5V from the included AC adapter ( there is also a separate product, LNX-506-24V, which can accept a wide range of power inputs from DC5 to 30V). You can also use
　the virtual COM port generation tool to link the IP address assigned to this product to a virtual COM port and use it. This allows it to be treated as a normal COM port, so you can design PC-side applications even if you do not have knowledge of networks.

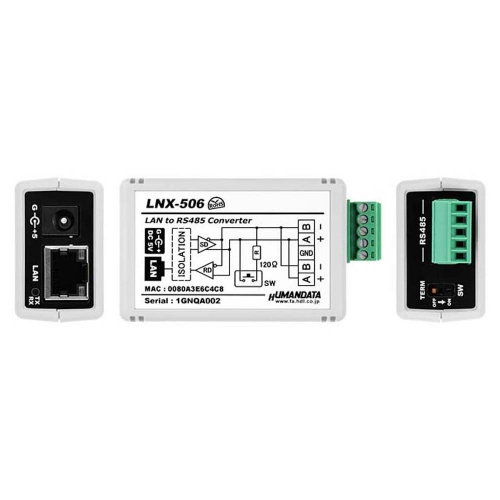

LNX-506 *The second and subsequent images are CG.


* Installation reference diagram (mounting fixture sold separately)

Features

• Media converter function to convert RS-485 to LAN
• Two LNX-506 units can be installed and connected in tunneling mode without going through a PC.
• IP addresses can be assigned to virtual COM ports
• Automatically detects 10Base-T/100Base-TX
• LAN and RS-485 sides are highly insulated (transformer insulation of DC1500V + double insulation of DC3000V)
• Easy configuration via network using original configuration tool
• Industrial design (includes ESD and surge protection components)
• Powered by AC adapter ( LNX-506-24V
  is also available, which can accept a wide range of power inputs from DC5 to 30V )
• Uses a removable terminal block (terminal block can be removed with wiring still connected)
• Screw fasteners, 35mm DIN rails, and magnetic mounting fixtures are available for fixing this product (accessories sold separately)
• Small lot OEM possible
  from 50 units, we will provide you with your original nameplate
• Free of 10 substances restricted by the RoHS Directive

Connection Topology

[LNX-506 single use]

　You can communicate with RS-485 lines at remote locations using Ethernet.

[Tunneling connection between LNX-506]

　LNX-506 can communicate directly with each other and connect RS-485 lines without the need for a PC.
1:1 connection with a cross cable is also possible.

[Tunneling connection between LNX-001 and LNX-506]

specification

item	Contents	remarks
Model number	LNX-506
power supply	DC5V AC adapter included
Power Consumption	2W or less
Network Interface	IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX) half duplex/full duplex (automatic determination)
LAN connector	RJ45	ESD protection insulation (1500Vrms or more)
Communication Protocol	TCP/UDP/Telnet
Communication Standards	RS-485 half-duplex asynchronous non-procedure internal circuit with DC3000V insulation	ESD Protection
RS-485 Connector	Detachable terminal block 5 poles/3.5mm pitch	Phoenix Contact Model 1844249
Communication speed	300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800 bps
Data Length	7 or 8 bit
Stop bits	1 or 2 bits
Parity Check	Odd, Even, No Parity
Indicator LED	TX/RX LED Link (RJ45 connector) LED Activity LED (RJ45 connector) LED
Operating temperature range	-20 to 60°C	No condensation, etc.
Operating humidity range	20～85% RH	No condensation, etc.
Storage Temperature Range	-20 to 60°C	No condensation, etc.
Storage Humidity Range	20～85% RH	No condensation, etc.
mass	About 70 [g]	Body only
External dimensions	67 x 43.5 x 27 [mm]	Protrusions not included

RS-485 pin assignment

1-4 and 2-5 are internally connected

LNX series setting tool

　This is an application for creating setting data for the LNX series.

Product Configuration

• Main unit
• AC adapter
• Driver & Application CD
• Product Manual

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.
