overview

　The LNX-506M-24V is a Modbus-only converter that connects to RS-485 via LAN. It converts the protocol from Modbus TCP to Modbus RTU/ASCII. It can operate as a master or slave and connect Modbus devices over Ethernet. Modbus can be used for both serial and Ethernet devices, but because serial and Ethernet communications differ not only in terms of physical connections but also in protocols, protocol conversion is also required to interconnect them. The LNX-506M-24V can be used to integrate Modbus TCP and Modbus RTU/ASCII networks. It
　supports a wide range of power inputs from DC5 to 30V, and can be powered from a DC24V power supply that is often used in control panels ( there is also a separate product, the LNX-506M, which can be powered from an AC adapter). You can also use
　the virtual COM port generation tool to link the IP address assigned to this product to a virtual COM port and use it. This allows it to be treated as a normal COM port, so you can design PC-side applications without any network knowledge.

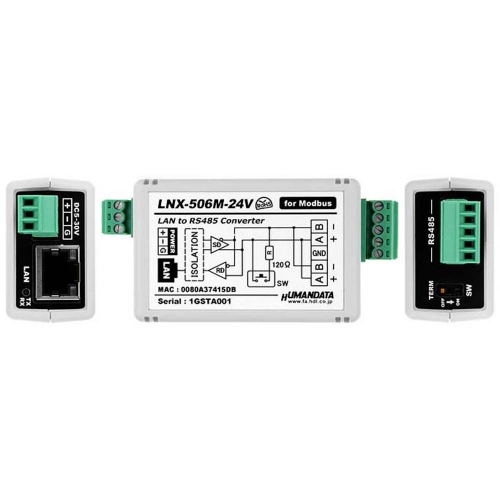

LNX-506M-24V *The second and subsequent images are CG.


* Installation reference diagram (mounting fixture sold separately)

Features

• Media converter function to convert RS-485 to LAN
• Mutual protocol conversion between Modbus TCP and Modbus RTU/ASCII
• Multiple devices can be used to connect in tunneling mode
• IP addresses can be assigned to virtual COM ports
• Automatically detects 10Base-T/100Base-TX
• LAN and RS-485 sides are highly insulated (transformer insulation of DC1500V + double insulation of DC3000V)
• Easy configuration via network using original configuration tool
• Original communication confirmation application can be used
• Industrial design (includes ESD and surge protection components)
• A wide range of power inputs from DC5 to 30V are possible ( the LNX-506M,
  which can be powered via an AC adapter, is also available)
• Uses a removable terminal block (terminal block can be removed with wiring still connected)
• Available with screw mounting, 35mm DIN rail and magnetic mounting fixtures (accessories sold separately)
• Small lot OEM possible
  from 50 units, we will provide you with your original nameplate
• Free of 10 substances restricted by the RoHS Directive

Connection Topology

[LNX-506M-24V in slave mode]


　It can communicate with Modbus RTU/ASCII slave devices in remote locations via Ethernet.
If the master is a PC, the IP address assigned to the LNX-506M-24V can be assigned to a virtual COM port for use, so no network knowledge is required for programming.

[LNX-506M-24V in master mode]


　A Modbus RTU/ASCII master device can communicate with a Modbus TCP slave device in a remote location via Ethernet.

[Tunneling connection between LNX-506M-24V]

specification

item	Contents	remarks
Model number	LNX-506M-24V
power supply	DC5～30V
Power Consumption	2W or less
Network Interface	IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX) half duplex/full duplex (automatic determination)
LAN connector	RJ45	ESD protection insulation (1500Vrms or more)
Communication Protocol	Modbus TCP
Communication Standards	RS-485 half-duplex asynchronous non-procedure internal circuit with DC3000V insulation	ESD Protection
Power Connector	Detachable terminal block 3 poles/3.5mm pitch	Phoenix Contact Model 1844223
RS-485 Connector	Detachable terminal block 5 poles/3.5mm pitch	Phoenix Contact Model 1844249
Communication speed	300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps
Data Length	7 or 8 bit
Stop bits	1 or 2 bits
Parity Check	Odd, Even, No Parity
Operational Mode	Modbus RTU Master/SlaveModbus ASCII Master/Slave
Number of connectable devices	Up to 8 devices can be connected simultaneously to the Modbus TCP master	In slave mode
Slave Address - IP Address Table	Up to eight IP addresses can be registered for each slave address (ID) range.	In Master Mode
Indicator LED	TX/RX LED Link (RJ45 connector) LED Activity LED (RJ45 connector) LED
Operating temperature range	-20 to 60°C	No condensation, etc.
Operating humidity range	20～85% RH	No condensation, etc.
Storage Temperature Range	-20 to 60°C	No condensation, etc.
Storage Humidity Range	20～85% RH	No condensation, etc.
mass	About 70 [g]	Body only
External dimensions	67 x 43.5 x 27 [mm]	Protrusions not included

RS-485 pin assignment

1-4 and 2-5 are internally connected

LNX series setting tool

　This is an application for creating setting data for the LNX series.

Introducing an application for checking Modbus communications

　This application allows you to check Modbus communication using our LAN or USB converter. You can download it from
here .

Product Configuration

• Main unit
• Driver & Application CD
• Product Manual

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.
