overview

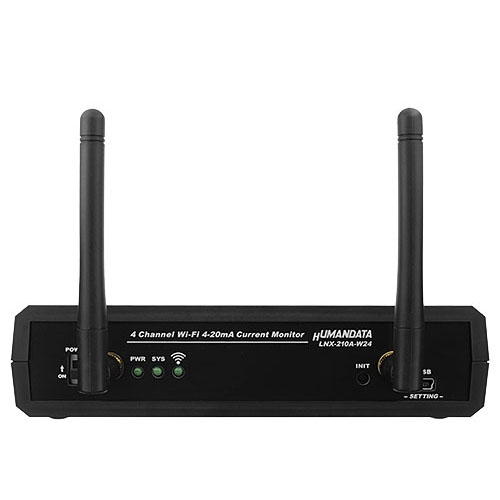

　The LNX-210A-W24 is a current monitor that can measure 4-20mA signals on 4 channels via Wi-Fi. Each channel is independently isolated from the others. Each channel is equipped with an AD converter, allowing simultaneous measurement of 4 channels. The
power supply can accept a wide range of inputs from 8 to 30V DC, and can be supplied from a 24V DC power supply that is often used in control panels. It can also be powered from the included AC adapter.
By using the included application LNX-210A C-Monitor, it is possible to display measurement results, scaling values, charts, etc. on a remote computer.
By using dedicated control commands, it is also possible to measure 4-20mA from your own application.

We also have 　a wired type, LNX-210A-L24 .

*Cannot be used overseas as it requires certification according to the radio laws of each country.

*The third and subsequent images are CG.



* Installation reference diagram
(mounting fixture sold separately)



Features

• Acquire 4-20mA measurement results on 4 channels via Wi-Fi
• Measurable range: 0 to 22.5mA
• Measurement accuracy: ±0.3%FS or less
• Each channel is isolated from the others (insulation voltage: DC2500V)
• The attached application allows you to display current values, scaling values, charts, etc.
• By using the dedicated control command, you can measure 4-20mA from your own application.
• The main unit can be easily configured via USB using the original configuration tool.
  • Easy recovery with backup data even when replacing equipment
  • Setting data can be sent to remote locations via email attachments, etc.
  • There are no restrictions on the IP address that can be set (can be set outside the segment)
  • Easily back up and record settings by saving the settings file
• Power supply: DC8 to 30V wide power input or supplied with AC adapter
• Noise-resistant design
• Resin housing for reliable insulation
• Uses a removable terminal block.
  The terminal block can be removed while wiring is still connected.
• Mini USB cable 1.0m long included (for main unit settings)
• Small lot OEM possible
  from 50 units, we will provide you with your original nameplate.
• Free of 10 substances restricted by the RoHS Directive

Application Overview

　The application (LNX-210A C-Monitor) that comes with the LNX-210A-W24 allows you to use it as a high-precision 4-20mA signal monitor on your PC. It also allows scaling (unit conversion), chart display, logging, etc.
Dedicated commands are available, so you can easily measure current from Tera Term or your own application.
*Supported OS: Windows 11/10/8.1/8/7 (32/64bit)

specification

*Parts may be changed to compatible ones
. *Power saving functions such as suspend, standby, and hibernation are not supported.

Pin assignment

[Power connector]

• Detachable terminal block 3 poles/3.5mm pitch
• Molex 39520-0003
• Applicable wire: AWG30(0.05sq) to AWG16(1.25sq)
• Stripped wire length: 6.5mm

[Current input connector]



symbol	Contents
+	Current Terminal +
-	Current terminal -

• Detachable terminal block, 2 poles/3.5mm pitch
• Molex 39520-0002 (4 pieces)
• Applicable wire: AWG30(0.05sq) to AWG16(1.25sq)
• Stripped wire length: 6.5mm

LNX series setting tool

　This is an application for creating setting data for the LNX series.

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.
