▶ Product Description

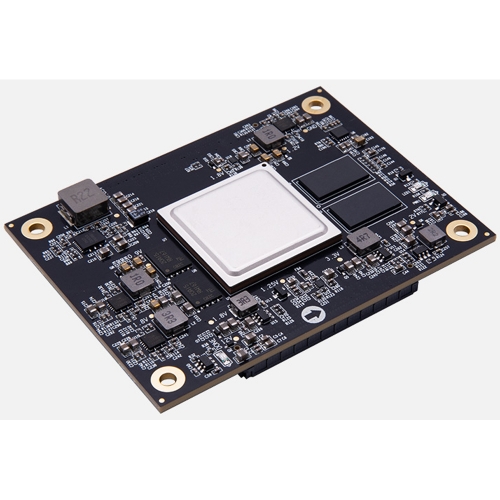

The ACKU3/ACKU5 FPGA system-on-module(SoM) combines high-end AMD Xilinx Kintex UltraScale+™ series device with fast DDR4 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

▶ Applications

Data Center
● Network Acceleration
● Storage Acceleration
Industrial, Science, Medical
● Medical Imaging Backhaul
● Machine Vision
Wired Communications
● PON Access
● Optical Transport Network
Wireless Communications
● Radio
● Basebandn

▶ Key Features

● AMD/Xilinx Kintex Ultrascale+™ :
◆ 16nm FinFET FPGA fabric
◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs
◆ More than 2 x faster system-level performance per watt compared to Kintex 7 FPGAs● Pluggable module with 2 x Samtec board-to-board connectors
● 2 GByte (32-bit) DDR4 SDRAM
● 2 x 32 MB QSPI Flash
● 1 x PCIe® Gen3 ×16
● Gigabit transceivers
◆ 16 x GTY, up to 28.21 Gbps● User I/Os
◆ 179 FPGA I/Os● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimensions: 80 x 60 mm form factor

▶ Specifications

Module Features

Featuring the AMD/Xilinx Kintex Ultrascale+™ XCKU3P-2FFVB676I

* If you want to design a base board based on this Kintex Ultrascale+™ FPGA system-on-module, you need to purchase ADM6-60-01.5-L-4-2-A-TR high-speed Board to Board Connectors, 240 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.

* We have Kintex Ultrascale+™ development boards AXKU3 that uses this Kintex Ultrascale+™ module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

▶ What's Inside

What's Inside the Box

ALINX AMD Xilinx Kintex Ultrascale+™ XCKU3P FPGA system-on-module/SOM

Kintex Ultrascale+™ SOM	1

▶ Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR4 SDRAM	QSPI Flash	GTY	Temp. Range	USD Price
ACKU3	√	XCKU3P-2FFVB676I	2 GB	2 x 32 MB	16	-40°C~+85°C	719
ACKU5	√	XCKU5P-2FFVB676I	2 GB	2 x 32 MB	16	-40°C~+85°C	824

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
