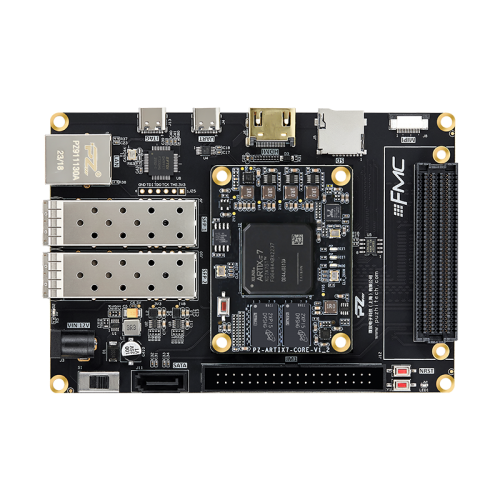

짧은설명: Puzhi FPGA Artix-7 PA75T-FL Development Board

판매가: 500,500원 <관세ㆍ부가세 포함>

구매제한: 옵션당 최소 1개

구매혜택: 할인 : 적립 마일리지 :

배송비

55,000원 / 주문시결제(선결제) 조건별배송

금액별배송비

0원 이상 ~ 100,000원 미만 110,000원
100,000원 이상 ~ 200,000원 미만 99,000원
200,000원 이상 ~ 300,000원 미만 88,000원
300,000원 이상 ~ 400,000원 미만 77,000원
400,000원 이상 ~ 500,000원 미만 66,000원
500,000원 이상 ~ 600,000원 미만 55,000원
600,000원 이상 ~ 700,000원 미만 44,000원
700,000원 이상 ~ 800,000원 미만 33,000원
800,000원 이상 ~ 900,000원 미만 22,000원
900,000원 이상 ~ 1,000,000원 미만 11,000원
1,000,000원 이상 0원

배송비 계산 기준 : 판매가

택배

방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호

상품코드: 1000620016

제조사: Puzhi

PA75T-FL-KFB

0원

총 상품금액

총 할인금액

총 합계금액

상품상세정보
배송안내
교환 및 반품안내
상품후기 (0)
상품문의 (0)

상품상세정보

Interface Function Display

Product Parameters

Core Board Main Parameters

FPGA Dev. Board	PZ-A775T-FL-KFB
FPGA Chip	XC7A75T-2FGG484I
Speed Grade	2
Chip Level	Industrial Grade（-40°C~+85°C）
Logic Cells	75K
Slices	11800
BLOCK RAM	3780
DSP Slices	180
DDR3	1GB
QSPI FLASH	256Mb
Start-up Mode	JTAG/QSPI, The Default Boot Mode is QSPI
User LED	2
Reset KEY	1
Number of GTP	4 Pairs of TX/RX
INumber of IO	172 IOs
Crystal Oscillator	200MHz Differential Crystal for FPGA 125MHz Differential Crystal for the GT Transceiver Reference Clock
Core Board Form Factors	2.36 inch x 1.77 inch (60mm x 45mm)

Interfaces and Function

JTAG Downloader	1
UART	1
SD Card Slot Interface	1
Gigabit Ethernet	2
HDMI	1 HDMI Output/Input, 1 HDMI Output
MIPI CSI	1（2lane)
LED, KEY	5 LEDs, 5 KEYs
Voltage / Current	12V/1A
Board Form Factors	5.12 inch x 3.54 inch (130 mm x 90mm)
Technology	Black Matte. Immersion Gold Process
Two 40Pin Expansion Port	32 Single-ended/16 Differential Pairs Reserve one 40-pin 0.1 inch Expansion Port，to Connect Puzhi Modules (AD/DA, Camera, LCD)，Expansion Port including 5V power supply，3.3V power supply, 6 Ground, 32 IOs

Product Dimensions

Product Packages

FMC Subcard Display

Other Subcard Display

Puzhi Expansion Module EtherCAT Slave Development Board AX58100

(PZ-ECAT58100)

Click>>

Puzhi Expansion Module High Speed ADC AD9643

(PZ9643)

Click>>

Puzhi Expansion Module PCIE to SSD(NVME) Card

(PZ-SSD)

Click>>

Puzhi Expansion Module MIPI Camera OV5640

(PZ5640-M)

Click>>

Puzhi Expansion Module OV5640 Binocular Camera

(PZ5640-D)

Click>>

Puzhi Expansion Module 4.3 Inches TFT LCD Screen

(PZ-LCD430)

Click>>

Puzhi Expansion Module Synchronous Sampling AD7606

(PZ7606)

Click>>

Supporting Display

Puzhi FPGA Artix-7 A775T Core Board

(PZ-A775T-SOM)

Click to View>>

Demos Come with the Board

Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

Demos Constantly Being Updated... ...

1
FPGA Logic Demos
- 01.
  Vivado Installation
- 02.
  FLASH Curing
- 03.
  LED Flashing
- 04.
  LED PWM Control
- 05.
  Key Demos
- 06.
  FPGA on-chip RAM Read and Write
- 07.
  FPGA on-chip ROM Read and Write
- 08.
  FPGA on-chip PLL Configuration
- 09.
  FPGA on-chip FIFO Read and Write
- 10.
  FPGA side DDR3 Control Read and Write
- 11.
  I2C Read and Write E2PROM
- 12.
  Uart Transceiver
- 13.
  SD Card Read and Write
- 14.
  HDMI Output Testing Picture
- 15.
  HDMI Output Picture
- 16.
  SD Card Reads BMP Picture HDMI Display
- 17.
  AD-DA Conversion (200KSPS)
- 18.
  LCD Colour Bar Display
- 19.
  LCD Output Picture
- 20.
  SD Card Reads BMP Picture LCD Display
- 21.
  Binocular Camera Output with HDMI Display
- 22.
  Gigabit UDP Based on RTL8211
- 23.
  SFP Bit Error Ratio Demos
- 24.
  Aurora Communication
2
Microblaze Parts
- 01.
  Microblaze LED
- 02.
  Microblaze Uart
- 03.
  Microblaze GPIO Interrupt
- 04.
  Microblaze Timer Interrupt
- 05.
  Microblaze DMA LOOP
- 06.
  Microblaze XADC
- 07.
  Microblaze Lwip TCP loop
- 08.
  MIPI Camera HDMI Display
3
FMC Topics(FMC daughter board is required)
- 01.
  USB3.0 (PZ-FL3014)
- 02.
  High Speed ADC (PZ-FL9643S)
- 03.
  High Speed ADC/DAC (PZ-FL4322)
- 04.
  Multi-Channel High-Speed ADC (PZ-FL9643D)
- 05.
  Multi-Channel Domestic High-Speed ADC (PZ-FL2514D)
- 06.
  Medium-Speed ADC/DAC (PZ-FL3867)
- 07.
  Multi-Channel Medium Speed DAC (PZ-FL9767D)
- 08.
  Quad 100Gb Ethernet (PZ-FL8710F)
- 09.
  Quad 1000Gb Ethernet (PZ-FL8211F)
