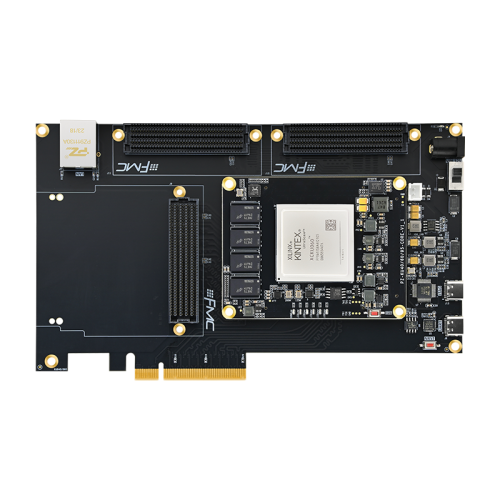

FPGA Dev. Board | PZ-KU060-FHT-KFB |
FPGA Chip | XCKU060-2FFVA1156I |
Speed Grade | 2 |
Chip Level | Industrial Grade(-40°C~+85°C) |
Logic Cells | 726K |
Lookup Tables | 331680 |
Flip-Flops | 663360 |
DSP Slices | 2760 |
BLOCK RAM | 38Mb |
DDR4 | 4GB/64bit Width |
QSPI FLASH | 256Mb + 256Mb, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI, The Default Boot Mode is QSPI |
User LEDs | 5 |
Number of GTH | 20 Pais of TX/RX |
Number of IO | 296 single-ended HR: 8 single-ended (default 3.3V) HR: 24 Differential Pairs /48 Single-ended (1.8V/2.5V/3.3V adjustable) HP: 120 Differential Pairs/240 Single-ended (1.2V/1.8V adjustable) |
Crystal Oscillator | 200MHz Differential Crystal for FPGA 125MHz Differential Crystal for the GT Transceiver Reference Clock |
Core Board Form Factors | 3.30 inch x 2.55 inch (83.8mm x 64.8mm) |
JTAG Downloader | 1 |
UART | 1 |
Gigabit Ethernet | 1 |
PCIE3.0 | x8 |
FMC Interface | HPC (8 Pairs of GT, 144 IOs), 2 x LPC (1 Pairs of GT, 72 IOs) |
Voltage / Current | 12V/3A |
Board Form Factors | 7.68 inch x 4.13 inch (195mm x 105mm) |
Technology | Black Matte. Immersion Gold Process |

Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
01.
Vivado Installation
02.
FLASH Curing
03.
LED Flashing
04.
LED PWM Control
05.
FPGA on-chip RAM Read and Write
06.
FPGA on-chip ROM Read and Write
07.
FPGA on-chip PLL Configuration
08.
FPGA on-chip FIFO Read and Write
09.
FPGA side DDR4 Control Read and Writee
10.
I2C Read and Write E2PROM
11.
Uart Transceiver
12.
Gigabit UDP Based on RTL8211
13.
PCIE Speed Test
14.
High Speed ADC-AD9643 Acquisition (250MSPS)
15.
UDP Transmission of High-speed ADCAcquisition Data
01.
Microblaze LED
02.
Microblaze Uart
03.
Microblaze GPIO Interrupt
04.
Microblaze DMA LOOP
05.
Microblaze XADC
06.
Microblaze Lwip TCP loop
01.
USB3.0 (PZ-FL3014)
02.
High Speed ADC (PZ-FL9643S)
03.
High Speed ADC/DAC (PZ-FL4322)
04.
Multi-Channel High-Speed ADC (PZ-FL9643D)
05.
Multi-Channel Domestic High-Speed (PZ-FL2514D)
06.
Ultra High Speed ADC/DAC (PZ-FH8052)
07.
Medium-Speed ADC/DAC (PZ-FL3867)
08.
Multi-Channel Medium Speed DAC (PZ-FL9767D)
09.
Quad 100Gb Ethernet (PZ-FL8710F)
10.
Quad 1000Gb Ethernet (PZ-FL8211F)
11.
Software Defined Radio (PZ-FL9361/PZ-FH9371/PZ-FH9009/PZ-FH9026)
01.
QT Environment Setup
02.
PCIE GPIO Control
03.
PCIE DDR Cache Interrupt
04.
PCIE Monocular OV5640 Image Experiment
05.
PCIE High-speed ADC Acquisition Experiment


1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.

1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.

1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
