▶ Overview

The FPGA Cloud Connectivity Kit combines the rich versatility of an Intel® Cyclone® V SoC FPGA with the benefits of cloud connectivity.

Nowadays, it is easy to develop your own FPGA based application that can collect, analyze and react to data from IoT equipment. This development kit is certified with key cloud service providers (CSPs) such as Microsoft Azure and comes with open-source design examples that will take new users through the process of connecting an FPGA-based edge device to the cloud for the first time.

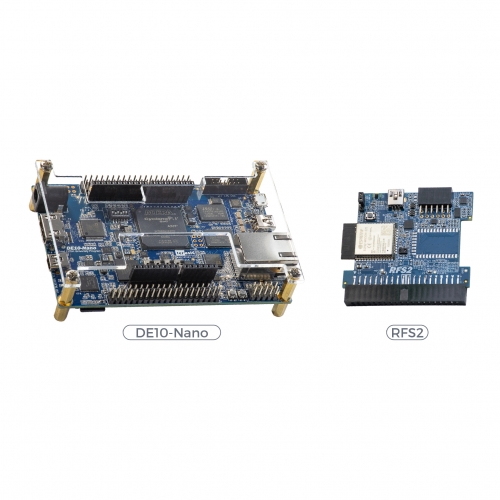

The kit is based on the extremely popular Terasic DE10-Nano Kit and adds Wi-Fi and Bluetooth wireless communication as well as a wide range of sensors such as an ambient light, temperature and humidity sensors, accelerometer and gyroscope.

The FPGA Cloud Connectivity Kit will enable users to put a flexible and reconfigurable FPGA at the heart of their next smart IoT edge design.

▶ Specification

• DE10-Nano Cyclone V SoC FPGA Board
• Wi-Fi, using ESP32-WROOM-32E module
• 9-axis sensor: accelerometer,gyroscope,
  magnetometer
• Ambient light sensor
• Humidity and temperature sensor
• UART to USB
• 2x6 TMD GPIO Header
• Classic Bluetooth (BT) and Bluetooth Low Energy(BLE), using ESP32-WROOM-32E module

▶ Resources

The FPGA Cloud Connectivity Kit 1.0 has been discontinued, please go to the discontinued prodict page to download the System CD

CD-ROM

Title	Version	Size	Date	Download
FPGA Cloud Connectivity Kit 2.0 CD-ROM	1.0.0		2022-09-20

Please note that all the source codes are provided "as-is". For further support or modification, please contact Terasic Support and your request will be transferred to Terasic Design Service.

More resources about IP and Dev. Kit are available on Intel User Forums.



▶ Kit Contents

1. Quick Start Guide
2. DE10-Nano Board
3. RFS2 Daughter Card
4. 40-Pin IDC To Box Header Cable
5. Type A to Mini-B USB Cable x1
6. Type A to Micro-B USB Cable x1
7. Power DC Adapter (5V)
8. microSD card (installed)
9. Four Silicon Footstands
