AXVU13F

HOME >

AXVU13F

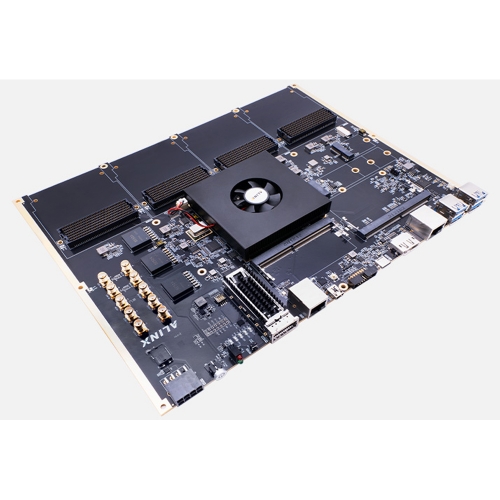

짧은설명: AXVU13F FPGA Dev Board & Kit with AMD Virtex US+ XCVU13P

판매가: 27,500,000원 <관세ㆍ부가세 포함>

구매제한: 옵션당 최소 1개

구매혜택: 할인 : 적립 마일리지 :

배송비

0원 / 주문시결제(선결제) 조건별배송

금액별배송비

0원 이상 ~ 100,000원 미만 55,000원
100,000원 이상 ~ 200,000원 미만 44,000원
200,000원 이상 ~ 300,000원 미만 33,000원
300,000원 이상 ~ 400,000원 미만 22,000원
400,000원 이상 ~ 500,000원 미만 11,000원
500,000원 이상 0원

배송비 계산 기준 : 판매가

택배

방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호

상품코드: 1000620069

제조사: ALINX

AXVU13F

0원

총 상품금액

총 할인금액

총 합계금액

상품상세정보
배송안내
교환 및 반품안내
상품후기 (0)
상품문의 (0)

상품상세정보

▶ Product Description

The AXVU13F FPGA development board equipped with the AMD/Xilinx Virtex Ultrascale+ series device, This board integrates 4 x FMC+ connectors, Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provided users with a fully functional testing and verification platform

Provide high-speed communication (100G QSFP28+, FMC+) and high-speed storage (SODIMM，M.2) video applications (DP)..

▶ Applications

● Compute Acceleration
● Machine Learning and AI
● Network Acceleration
● Wired Communications
● 5G Baseband
● Radar
● Test and Measurement
● Emulation and Prototyping

▶ Key Features

AMD Virtex Ultrascale+™ VU13P System● AMD Virtex Ultrascale+™ XCVU13P:
◆ 16nm FinFET FPGA fabric
◆ Integrated 100G Ethernet MAC and 150G Interlaken cores
● 1 x DDR4 SODIMM Card slot ( Supports up to 32GB DDR4 )
● 2 x 128 MB QSPI Flash
● 4 x FMC+◆ FMC+1 has 120 IOs and 20 GTY
◆ FMC+2 has 120 IOs and 16 GTY
◆ FMC+3 has 72 IOs and 16 GTY
◆ FMC+4 has 72 IOs and 16 GTY● 1 x 100G QSFP28 (up to 100 Gbps)
● 1 x Gigabit Ethernet
● 1 x UART (USB to UART)
● 1 x JTAG
● 2 x SMA (1 x in + 1 x out)
● 12V single supply
● Dimensions: 295 x 230 mm form factor
NVIDIA JETSON ORIN NX System● NVIDIA Jetson Orin NX Module:
◆Jetson Orin NX 16 GB: Up to 100 TOPs (Need to purchase separately)
◆ Jetson Orin NX 8 GB: Up to 70 TOPs (Need to purchase separately)
(*Jetson Orin NX 16 GB package and Jetson Orin NX 8 GB package are offered separately. If you want to purchase them, please contact sales@alinx.com or sales.online@alinx.com to know more details)● Video encoding supports 1 x 4K60 (H.265); 3 x 4K30 (H.265); 6 x 1080p60 (H.265); 12 x 1080p30 (H.265)
● Video decoding supports 1 x 8K30 (H.265); 2 x 4K60 (H.265); 4 x 4K30 (H.265); 9x 1080p60 (H.265); 18 x 1080p30 (H.265)
● 1 x DisplayPort (4K 30Hz/1080P 60Hz video)
● 1 x NVME M.2 Interface (PCIe Gen 4 x2)
● 1 x Gigabit Ethernet
● 1 x M.2 WIFI/BT
● 1 x Gigabit Ethernet
● 4 x USB 3.0 Type-A + 1 x USB 3.0 Type-C

▶ Specifications

Board Features

Featuring the AMD/Xilinx Virtex Ultrascale+™ XCVU13P-2FHGB2104I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale+™ based application.

▶ What's Inside

What's Inside the Box

ALINX AMD Xilinx Virtex Ultrascale+™ XCVU13P FPGA development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCVU13P device surface.

Development Board	1	Heatsink Kit (preinstalled)	1
Mini USB Cable	1	USB Downloader Cable / set	1
SMA wire	1	SMA Elbow	1
12V Power Adapter	1	16GB memory module	1

▶ Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	QSPI Flash	GTY	USD Price
AXVU13F	√	XCVU13P-2FHGB2104I	2 x 128 MB	76	14976

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
