▶ Overview

The Comet A65 SOM is Terasic's new System-On-Module powered by Altera's largest Agilex™ 5 SoC FPGA with 656K logic elements. The SOM integrates an HPS/ARM subsystem, three 4GB high-throughput LPDDR4, two high-speed SEAM8 extension connectors, to support 71 LVDS, 245 LVCMOS and 24 transceivers. It enables embedded software/systems developers without FPGA expertise to develop various industrial applications, such as medical equipment, robotics, industrial communication and control, machine vision, smart camera and smart city.

Available in production-qualified and certified commercial grade, the Comet A65 SOM is purpose-built for your volume edge deployment and ruggedized for long life cycle operation.

Included with Comet A65 SOM  is a free license for Altera® Quartus® Pro Edition software — no additional license purchase is required. Developers can leverage full design and compilation capabilities of Quartus Pro without incurring licensing fees. Learn more about acquiring your free license.

Partnerships

eMMC Memory Solution

Power solution

Clock Solution

Logic and Level Translator solution

▶ Specifications

System:

• FPGA: A5ED065BB32AE4S (Agilex™ 5 E-Series Device Group B*)
• Module Size : 70mm x 75mm
• 102 HVIO (3.3V x4, 1.8/2.5/3.3 x98)
• 143 HSIO (71 LVDS)
• 48 HPSIO
• 24 Transceivers
• Interface: Two SEAM8 Connectors (8x50 pin)
• Board Management System
  • Power and Temperature Monitor
  • Auto Fan Control
  • Auto shutdown when power or temperature is abnormal

*Compatible with Group A

FPGA Side:

• LED x1, KEY x1
• Fixed 50 /100MHz Clock
• Programmer Clock Generator for transceiver reference clock
• LPDDR4-A: 4GB DDR4 with 32-bit data bus (no ECC). Shared with HPS
• LPDDR4-B: 4GB DDR4 with 32-bit data bus (no ECC)
• LPDDR4-C: 4GB DDR4 with 32-bit data bus (no ECC)
• 102-pin HVIO and 143-pin HSIO connected to SEAM8 connector
• 24 transceiver and 4 reference clock connected to SEAM8 2 connectors

HPS side:

• LPDDR4-A: 4GB DDR4 with 32-bit data bus (no ECC). Shared with FPGA.
• 48 HPS IO connected to ADF6 connector
• 8GB eMMC (Expandable) + eMMC SEL Switch

Block Diagram:

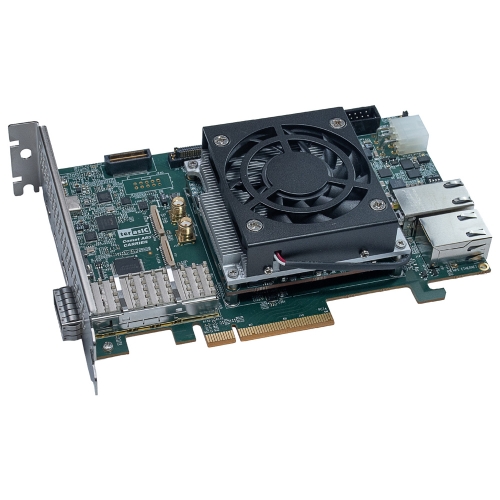

Evaluation kit

The Evaluation kit is composed of a Module and Carrier.

Carrier Board features include:

System:

• PCIe Form Factor: Full Height, ½ Length
• Power Input: 12V DC Jack or PCIe edge
• Interface: Two SEAF8 Connectors (40x100 pin)
• On board USB Blaster III

FPGA:

• PCIe Gen4 x4 with x8 Edge
• SLVS-EC Connector
• HDMI Out (1080P)
• One QSFP+ Port for 40 GbE network interface
• Two 4-lanes MIPI Connectors for Camera/Display
• 60-pin High Speed Connector (support LVDS)
• One 3.3V 2x20 DE-GPIO Header
• 2.5G Ethernet PHY via RJ45, co-working with HPS
• SMA x2 for differential clock input

HPS:

• MicroSD Socket
• UART Port (Type-C Connector)
• Gigabit Ethernet PHY via RJ45
• USB 2.0 OTG (MicorUSB Connector)
• COLD Reset Button

Block Diagram:

▶ Layout

Comet A65 SOM Module

SOM board size:70*75mm

Comet A65 SOM Carrier Board

Carrier board size:111.15*167mm

▶ Resources

Included with Comet A65 SOM  is a free license for Altera® Quartus® Pro Edition software — no additional license purchase is required. Developers can leverage full design and compilation capabilities of Quartus Pro without incurring licensing fees. Learn more about acquiring your free license.

▶ Kit Contents

Comet A65 SOM Module

1. Comet A65 SOM module
2. Active Heatsink (Installed)

Comet A65 SOM Evaluation Kit

1. Comet A65 SOM module (Installed)
2. Active Heatsink (Installed)
3. Comet A65 Carrier Board
4. MicroSD Card (Installed)
5. Type-C USB Cable
6. ATX 12V Power Adapter
7. AC Power Cord
8. Quick Start Guide
