▶ Product Description

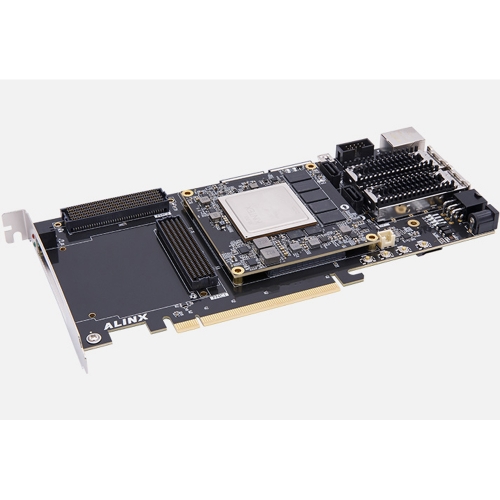

The AXKU15S FPGA development board equipped with the AMD/Xilinx Kintex UltraScale+™ series device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, QSFP28, FMC HPC, Gigabit Ethernet.

Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe, QSFP28).

▶ Applications

• Data Center

  ● Network Acceleration

  ● Storage Acceleration

• Industrial, Science, Medical

  ● Medical Imaging Backhaul

  ● Machine Vision

• Wired Communications

  ● PON Access

  ● Optical Transport Network

• Wireless Communications

  ● Radio

  ● Basebandn

▶ Key Features

• System-on-Module

  • ● AMD/Xilinx Kintex Ultrascale+™:
    ◆ 16nm FinFET FPGA fabric
    ◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs
    ◆ More than 2x faster system-level performance per watt compared to Kintex 7 FPGAs
    ● Pluggable module with 4 x Samtec board-to-board connectors
    ● 5 GB(80bit) DDR4 SDRAM
    ● 2 x 64 MB QSPI Flash

  Base Board

  • ● 2 x FMC HPC (FMC1 58 pairs LVDS IOs + 8 pairs GTH / FMC2 34 pairs LVDS IOs + 8 pairs GTH)
    ● 1 x PCIe® Gen3 ×16
    ● 2 x QSFP28 (100Gbps)
    ● 1 x Gigabit Ethernet
    ● 1 x UART(USB to UART)
    ● 2 x 4 lane MIPI
    ● 1 x MicroSD
    ● 1 x 512 Byte EEPROM 24LC04
    ● 1 x Temperature sensor LM75
    ● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED)  KEY (4 x KEY)
    ● 12V single supply
    ● Dimensions: 226 x 111 mm form factor

▶ Specifications

Board Features

Featuring the AMD/Xilinx Kintex Ultrascale+™ XCKU15P-2FFVE1517I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale+™ based application.

* The AXUKU15S development board consists of a ACKU15S SoM and base board. If you want to purchase ACKU15S SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

▶ What's Inside

▶ Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR4 SDRAM	QSPI Flash	GTH	GTY	USD Price
AXKU15		XCKU15P-2FFVE1517I	10 GB	2 x 64 MB	32	24	5391
AXKU15-D	√	XCKU15P-2FFVE1517I	10 GB	2 x 64 MB	32	24	4642
AXKU15S	√	XCKU15P-2FFVE1517I	5 GB	2 x 64 MB	32	24	4493

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
