High speed, high bandwidth, and high capacity are suitable for high-speed data communication, video image processing, high-speed data acquisition, and other applications

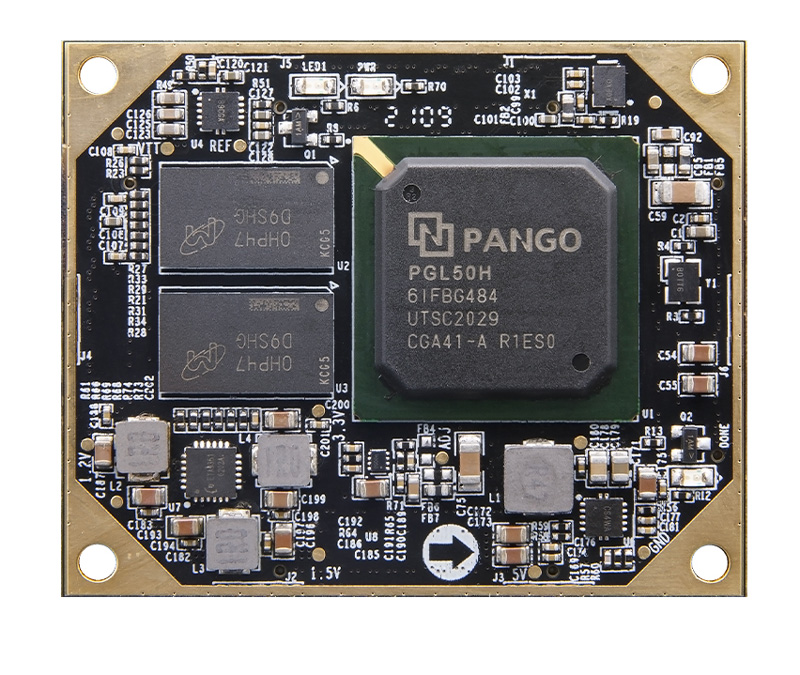

FPGA Chip
PGL50H-6IFBG484
Working Temperature
Industrial Grade -40℃~85℃
Flip-Flop (FF)
64200
LUT5
42800(LUT5=1.2LUT4)
DRM (18Kbits)
134
APM Unit (Multiplier)
84
PCIe Gen2x4
1
HSST
4 x 6.375Gb/s max
Clock resources PLL
5
AES
1
DDR3
2 x 512MB DDR3, 32bit Bus, Data Rate 800Mbps
QSPI Flash
1 x 128Mbit , Used for FPGA Configuration File and User Data Storage
Crystal Oscillator
125 Mhz Provide Reference Input Clock for HSSTLP in FPGA
200 Mhz Provide Stable Clock Source for the System
IO
195 default level standards are 3.3V ordinary IO ports

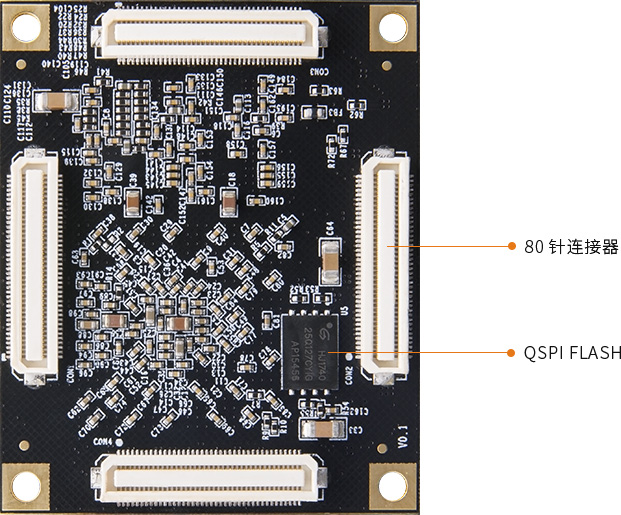

Expansion Ports
4 x 80-Pin Panasonic Industrial Grade Connectors
LED
1 power indicator light, 1 configuration LED light, 1 user LED light
Voltage Input
+5V DC, Power Supply via Connector CON1

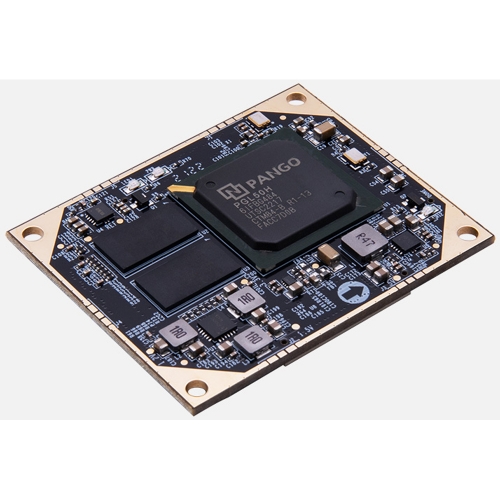

FPGA Core Board
1

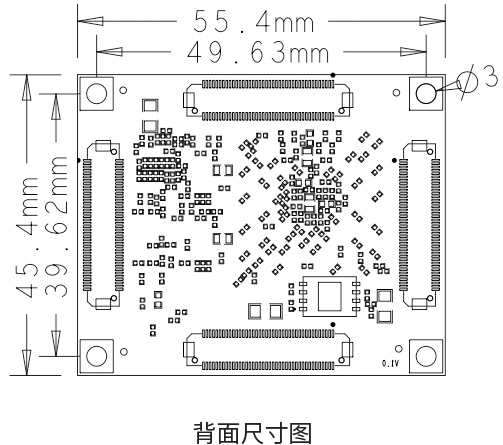

Size Dimension
60mm x 60mm x 6mm
Number of Layers
14-Layer Core Board PCB
