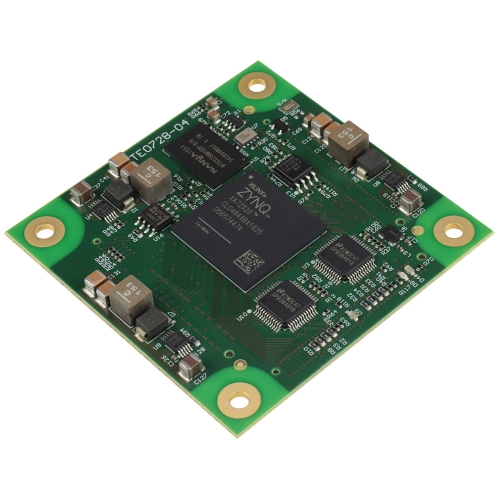

The Trenz Electronic TE0728-04-1Q is a SoC module integrating a AMD/Xilinx Automotive Zynq™ 7020, 512 MByte DDR3L SDRAM with 16-Bit width, 16 MByte Flash Memory for configuration and operation, two 100 Megabit Ethernet transceivers, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking strips.

Within the complete module only Automotive components are installed.

All this in a compact 6 x 6 cm form factor, at the most competitive price.

Key Features

• AMD/Xilinx XA7Z020-1CLG484Q (Automotive)
• Rugged for shock and high vibration
• Dimensions: 6 x 6 cm
• Temperature range: automotive
• 2 x ARM Cortex-A9 MPCore
• 2 x 100 MBit Ethernet transceiver (PHY)
• 512 MByte DDR3L SDRAM, 16-bit-wide
• 16 MByte QSPI Flash memory (with XiP support)
• Plug-on module with 3 x 80-pin Samtec Micro Tiger Eye(TM) high-speed connectors
• 76 single ended I/O, 24 LVDS pairs (48 I/O) and 42 MIO available on board-to-board connectors
• CAN transceiver (PHY)
• 12 V power supply with watchdog
• On-board high-efficiency DC-DC converters
• System management and power sequencing
• eFUSE bit-stream encryption
• AES bit-stream encryption
• Temperature compensated RTC (real-time clock)
• 3 user LEDs
• Evenly-spread supply pins for good signal integrity

Scope of Delivery

• 1 x TE0728-04-1Q Trenz Electronic SoC module with Automotive AMD/Xilinx Zynq™ 7020

Additional Information

• Manufacturer's article number: TE0728-04-1Q
