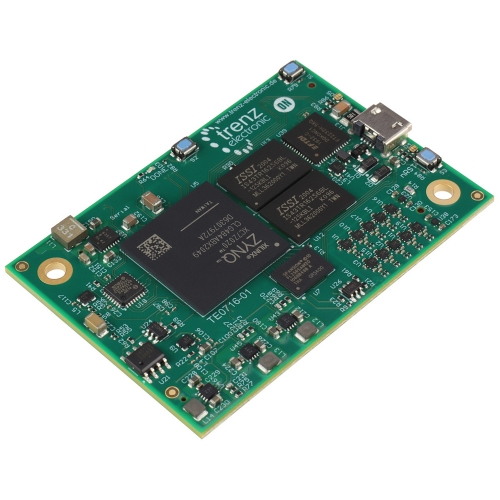

Product information "TE0716 - SoM with AMD Zynq™ 7000 SoC XC7Z020, 1 GByte DDR3L, 45 x 65 mm"

The Trenz Electronic TE0716 is a commercial-grade* SoM (System on Module) based on AMD/Xilinx Zynq™ 7000 SoC XC7Z020*, with 1 GByte of DDR3L-1600 SDRAM*, 32 MByte of SPI Flash memory, 10 x 12-Bit Low Power SAR ADCs, 512 Kb serial EEPROM, Gigabit Ethernet PHY transceiver, an USB PHY transceiver, a single chip USB2.0 to UART/JTAG interface (AMD/Xilinx license included), and powerful switching-mode power supplies for all on-board voltages. A large number of configurable I/Os are provided via rugged high-speed board-to-board connectors.

All parts are at least commercial temperature range of 0°C to +70°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

Key Features

• SoC/FPGA
  • Package: CLG484
  • Device: AMD/Xilinx Z-7020
  • Speed: -1 *
  • Temperature: C grade *.
• RAM/Storage
  • Low Power DDR3 SDRAM on PS
    • Data width: 32bit
    • Size: def. 1GB *
    • Speed: 1600 Mbps **
  • QSPI boot Flash
    • Data width: 4bit
    • Size: 32MB *
  • MAC address serial EEPROM with EUI-48™ node identity
  • 512Kb user MAC address serial EEPROM.
• On Board
  • 10x 12-Bit Low Power SAR ADCs up to 2 MSPS
  • Low Power Oscillators.
  • Gigabit Ethernet PHY transceiver
  • High-Speed USB 2.0 ULPI transceiver with full OTG support
  • Single chip High-Speed USB 2.0 to UART/JTAG Interface (AMD/Xilinx License included) (FTDI FT2232H).
  • 2 x User RGB LEDs (Green), LED FPGA "Done" (Green).
  • 2 x Tactile Switches (User), 1 x Tactile Switche (Reset).
• Interface
  • 120 x HR PL I/Os (3 banks).
  • 2 x PS MIOs (shared with UART TX/RX ZYNQ-FTDI).
  • 1 Gbps RGMII Ethernet interface.
  • High Speed USB 2.0 ULPI with full OTG support.
  • High Speed USB 2.0 to UART/JTAG interface, including microUSB-B connector.
  • microSD
  • JTAG
• Power
  • On-board high-efficiency DC-DC converters for all voltages used.
• Dimension
  • 45 x 65 mm
• Notes
  • * depends on assembly version
  • ** depends on used Zynq™ and DDR3 combination

Other assembly options for cost or performance optimization plus high volume prices available on request.

Recommended Software

Vivado ML Standard Edition (free version)

The Vivado ML Standard Edition is the FREE version of the Vivado design suite. Vivado ML Standard delivers instant access to some basic Vivado features and functionality at no cost.

Overview of all editions of Vivado ML

Scope of Delivery

• 1 x TE0716-01-61C32-A SoM with AMD/Xilinx Zynq™ 7000 SoC XC7Z020

Additional Information

• Manufacturer's article number: TE0716-01-61C32-A
• Trenz Electronic TE0716 Wiki
• Support Forum
• ON Semiconductor Motor Development Kit

All modules produced by Trenz Electronic are developed and manufactured in Germany.
