LNX-001 is an adapter that connects FTDI's USB controller to a LAN. By connecting the USB of a PC to an external LAN, it is possible to connect to various external interface servers even if the LAN is not connected due to security concerns.
From Rev2 onwards, the specifications do not use electrolytic capacitors.

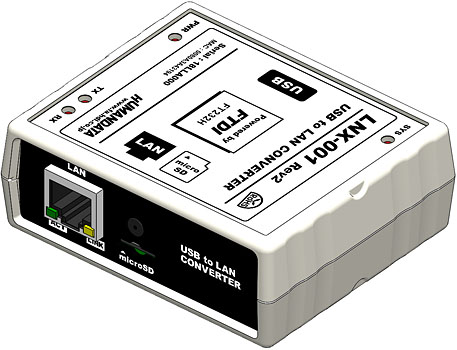

*The second and subsequent images are CG.

overview

　A PC equipped with USB can be connected to a device server (LNX-002, LNX-003, etc.) connected via LAN. The LNX-001 is also a device server. It is
also possible to communicate 1:1 with the LNX-001 connected to another PC using tunneling mode.
The connected PC does not need to be connected to the LAN, and even if it is not connected to the LAN due to security issues, various interfaces can be controlled via the LAN.
　The LNX-001 uses an FTDI USB controller and can be controlled using the proven FTDI device driver. It is also possible to directly connect to the LNX-001 from another PC on the network using TCP/IP and operate it. *Mounting fixtures are sold separately.

Features

• Connect from USB to LAN as a device server
• Connect to external network devices without using a LAN
• Equipped with FTDI USB controller, virtual COM port and direct control are possible
• Two LNX-001 units can be used for 1:1 connection in tunneling mode (transparent mode).
• Automatically detects 10Base-T/100Base-TX
• Printing to a LAN-compatible printer is possible via LNX-001
• Easy device setup with setting memory card (microSD)
  • When replacing equipment, you can easily migrate by replacing the setting memory card.
  • Setting data can be sent to remote locations via email attachments, etc.
  • There are no restrictions on the IP address that can be set (can be set outside the segment)
  • Easily back up and record settings by saving the settings file
• Device settings can also be configured via network (LAN) using the original setting tool.
• Powered by USB, no external power supply required
• Virtual COM port support
• Industrial Design
• Small lot OEM possible
  from 50 units, we will provide you with your original nameplate.
• Free of 10 substances restricted by the RoHS Directive

Connection Topology

[Connect LNX-001 to a computer on the LAN]

[Tunneling connection between LNX-001]

[Connect LNX-001 and LNX-002 via tunneling and use RS-232C]

[Connect LNX-001 and LNX-003 via tunneling and use RS-485/422]

[Connect LNX-001 directly to a LAN-compatible printer]

specification

item	Contents	remarks
Model number	LNX-001
power supply	DC5V supplied via USB connector (bus power)
Current consumption	350mA or less
Network Interface	IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX) half duplex/full duplex (automatic determination)
LAN Connector	RJ45	ESD protection insulation (1500Vrms or more)
Communication Protocol	TCP/UDP
USB interface	USB2.0 compliant (Full Speed ​​compatible)	Also compatible with USB1.1 ESD protection
Installed LSI	FT232H	FTDI
USB Driver	Virtual COM port driver *FTDI API available
Supported OS	Please check the supported OS list page.
Memory card for settings	microSD card	For setting up this product
Communication speed	300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 115200, 230400, 460800, 921600 bps
Data Length	7 or 8 bit
Stop Pit	1 or 2 bits
parity	Odd, Even, No Parity
Indicator LED	POW: Power display LED RX: Received data display LED TX: Transmitted data display LED SYS: System status LED LINK (RJ45 connector): LINK status ACT (RJ45 connector): ACT status
Operating temperature range	-10 to 55°C	No condensation, etc.
Operating humidity range	30～85% RH	No condensation, etc.
Storage Temperature Range	-20 to 60°C	No condensation, etc.
Storage Humidity Range	30～85% RH	No condensation, etc.
Noise resistance	Not specified
Standards etc.	Not specified
mass	About 80 [g]	Body only
External dimensions	69 x 82.5 x 30 [mm]	Protrusions not included

LNX series setting tool

　This is an application for creating setting data for the LNX series.

　The created setting data is automatically configured by inserting it into the setting memory card (microSD) and turning on the power.
At this time, a backup file of the setting data is created on the setting memory card (microSD).
The setting data is saved even when the power is turned off, so there is no need to insert the microSD card next time.
When replacing the main unit of the LNX series, you can easily set it to the same settings by using the setting memory card (microSD).
If the PC and product are connected in the same segment, you can also configure it via the network (LAN).

Product Configuration

• Main unit
• USB cable
• microSD card (with USB adapter)
• Driver CD
• Product Manual

support

	Manuals, outline drawings, etc.
	We will send you the latest revision 3D data.
	We will lend you a demo unit for evaluation purposes. If you would like to use the unit, please download the request form here.
