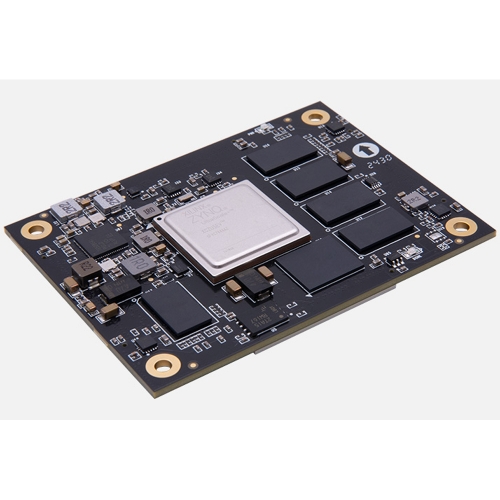

짧은설명: ACU3EG SoM with AMD Zynq™ US+ MPSoC XCZU3EG

판매가: 953,700원 <관세ㆍ부가세 포함>

구매제한: 옵션당 최소 1개

구매혜택: 할인 : 적립 마일리지 :

배송비

0원 / 주문시결제(선결제) 조건별배송

금액별배송비

0원 이상 ~ 100,000원 미만 55,000원
100,000원 이상 ~ 200,000원 미만 44,000원
200,000원 이상 ~ 300,000원 미만 33,000원
300,000원 이상 ~ 400,000원 미만 22,000원
400,000원 이상 ~ 500,000원 미만 11,000원
500,000원 이상 0원

배송비 계산 기준 : 판매가

택배

방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호

상품코드: 1000618520

제조사: ALINX

ACU3EG

0원

총 상품금액

총 할인금액

총 합계금액

상품상세정보
배송안내
교환 및 반품안내
상품후기 (0)
상품문의 (0)

상품상세정보

▶ Product Description

The ACU2CG/3EG/4EV/5EV System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

▶ Applications

● Artificial Intelligence
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Drive / Motion Control
● Industrial Internet of Thing
● Cloud Computing Security
● Machine Vision
● Medical Endoscop
● Video and Image Processing

▶ Key Features

● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53
(Dual-core Arm Cortex-A53 for ACU2CG)
◆ ARM® dual-core Cortex™-R5F
◆ Mali-400 MP2 GPU (only for ZU3/4/5)
◆ H.264 / H.265 Video Codec (only for EV devices)
◆ 16nm FinFET+ FPGA fabric● Pluggable module with 4 x Panasonic board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS (2 GByte for ACU2CG)
● 1 GByte (16-bit) DDR4 SDRAM on PL (only for ZU3/4/5)
● 32 MB QSPI Flash
● 32 GB eMMC Flash (8 GB for ACU2CG)
● PCIe® Gen3 ×4 (PL, only for ZU4/5), PCIe® Gen2 ×4 (PS)
● Gigabit transceivers
◆ 4 x PS-GTR, up to 6 Gbps
◆ 4 x PL GTH, up to 12.5 Gbps (only for ZU4/5)● User I/Os
◆ 54 PS MIOs
◆ 180 FPGA I/Os (84 HD + 96 HP)● Work temperature range of -40°C to +85°C (only for ZU3/4/5)
● 12V single supply
● Dimensions: 80 x 60 mm form factor

▶ Specifications

Module Features

Featuring the AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU3EG-1SFVC784I

ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU3EG SoM system-on-module ACU3EG ZU3EG

* If you want to design a base board based on this Zynq™ UltraScale+™ MPSoC System-on-Module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

* We have Zynq™ UltraScale+™ MPSoC development boards AXU3EGB that uses this Zynq™ UltraScale+™ MPSoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

Module Architecture

Click on the image to view a larger image.

Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

▶ What's Inside

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU3EG System-on-Module/SOM

MPSoC SoM	1

▶ Product Selection Matrix

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	eMMC	GTR	Temp. Range	USD Price
ACU2CG	√	XCZU2CG-1SFVC784E	2 GB	N/A	32 MB	8 GB	4	0°C~+70°C	404
ACU2EG		XCZU2EG-1SFVC784I	4 GB	1 GB	32 MB	8 GB	4	-40°C~+85°C	TBD
ACU2CG-I	√	XCZU2CG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	494
ACU3CG		XCZU3CG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	TBD
ACU3EG	√	XCZU3EG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	539
ACU4CG		XCZU4CG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	TBD
ACU4EG		XCZU4EG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	TBD
ACU4EV	√	XCZU4EV-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	749
ACU5EV	√	XCZU5EV-2SFVC784I	4 GB	1 GB	32 MB	32 GB	4	-40°C~+85°C	898

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
